Brake Switch (Cruise Control)

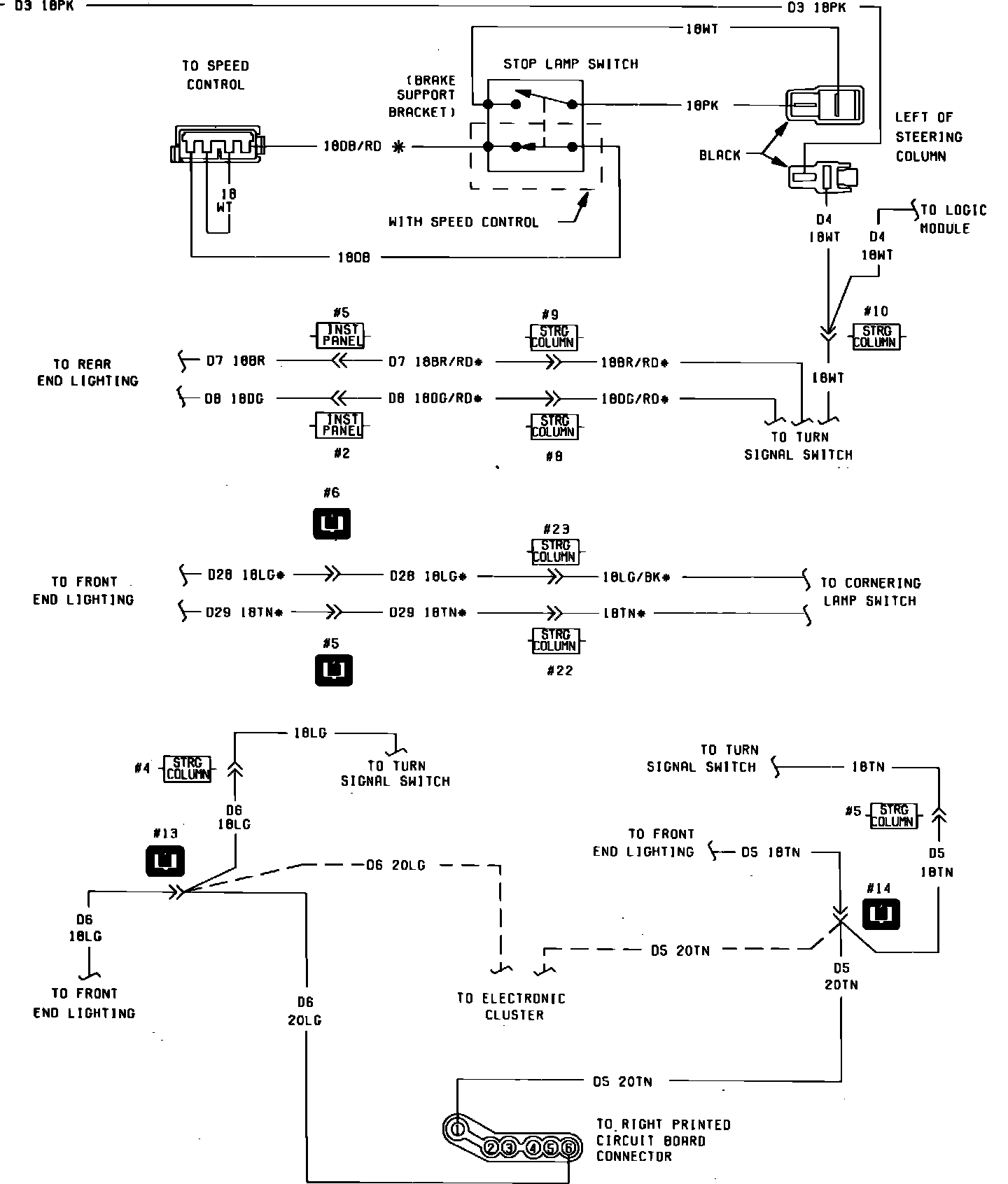

Fig. 67 Hazard Warning, Turn Signal & Stop Lamp Switch Wiring Circuit (Part 1 of 2). 1984:

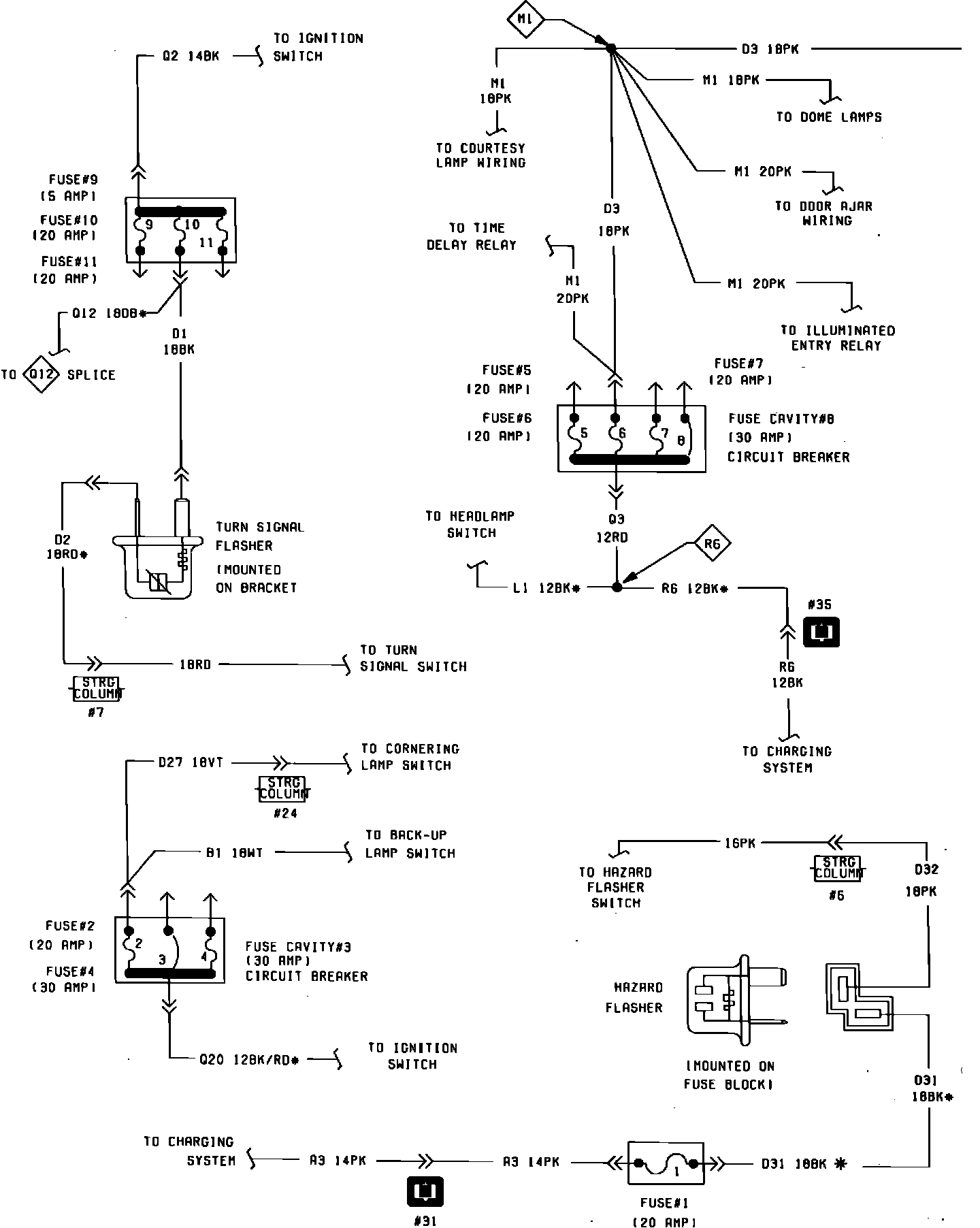

Fig. 67 Hazard Warning, Turn Signal & Stop Lamp Switch Wiring Circuit (Part 2 of 2). 1984:
