Power Distribution Relay

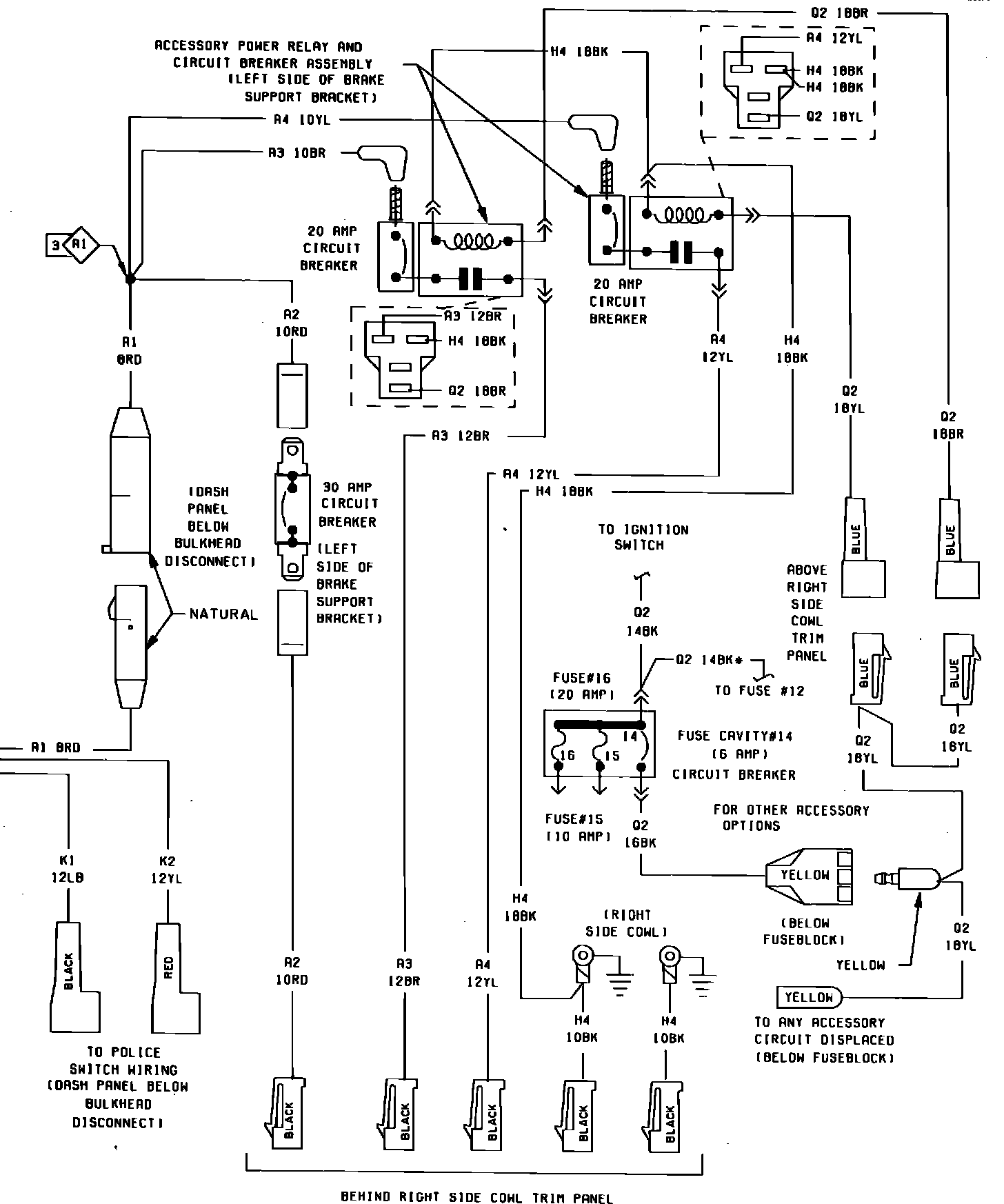

Fig. 9 Battery Accessory & Underhood Light Wiring Circuit (Part 1 of 2). 1985:



Fig. 9 Battery Accessory & Underhood Light Wiring Circuit (Part 2 of 2). 1985:
