Rear Lighting

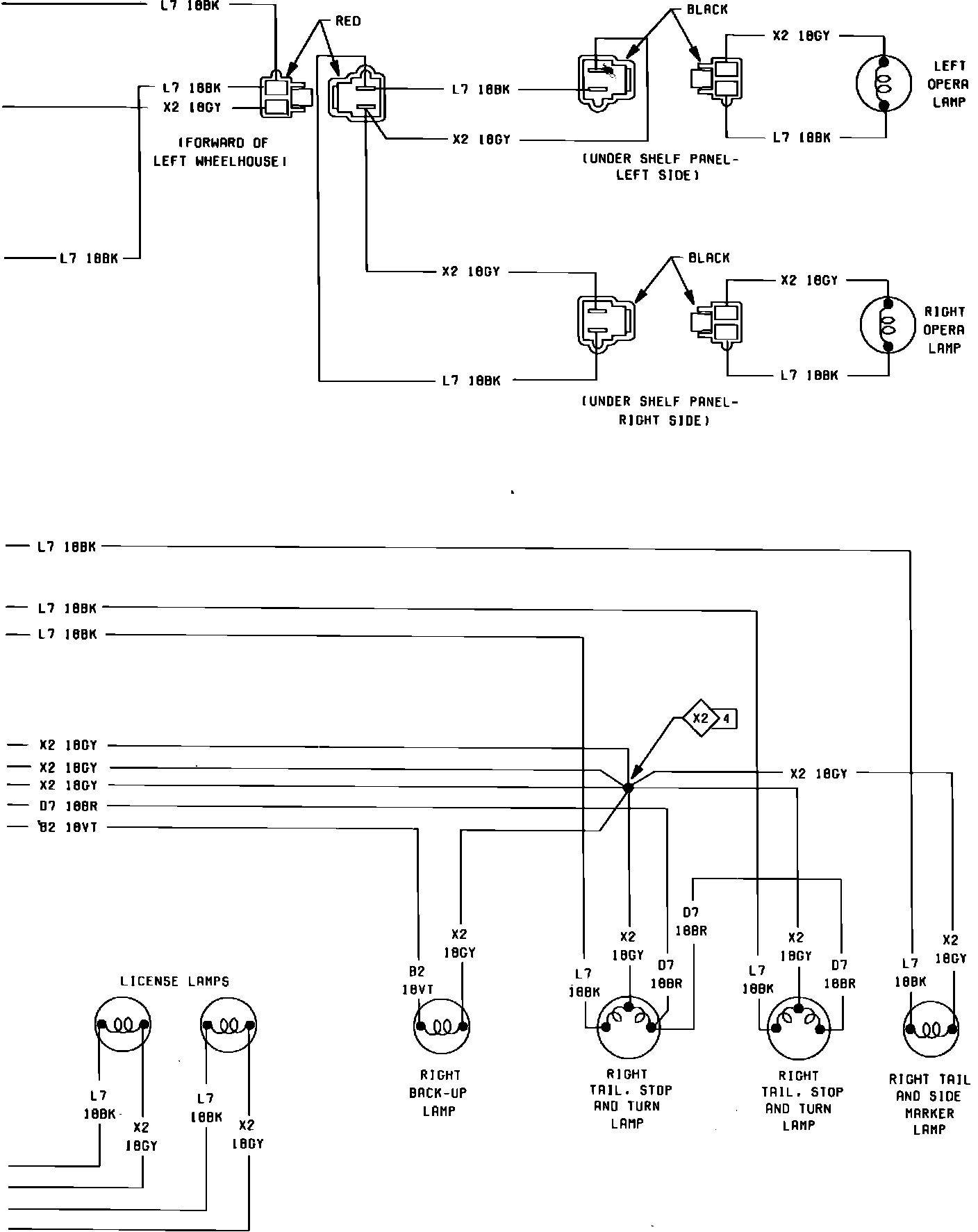

Fig. 40 Rear Lighting Wiring Circuit (Part 1 of 2). 1985 Fifth Avenue & Newport:



Fig. 40 Rear Lighting Wiring Circuit (Part 2 of 2). 1985 Fifth Avenue & Newport:
