Home >> Chrysler >> 1985 >> Laser L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Driver/Vehicle Information Display >> Part 1 of 2

Part 1 of 2

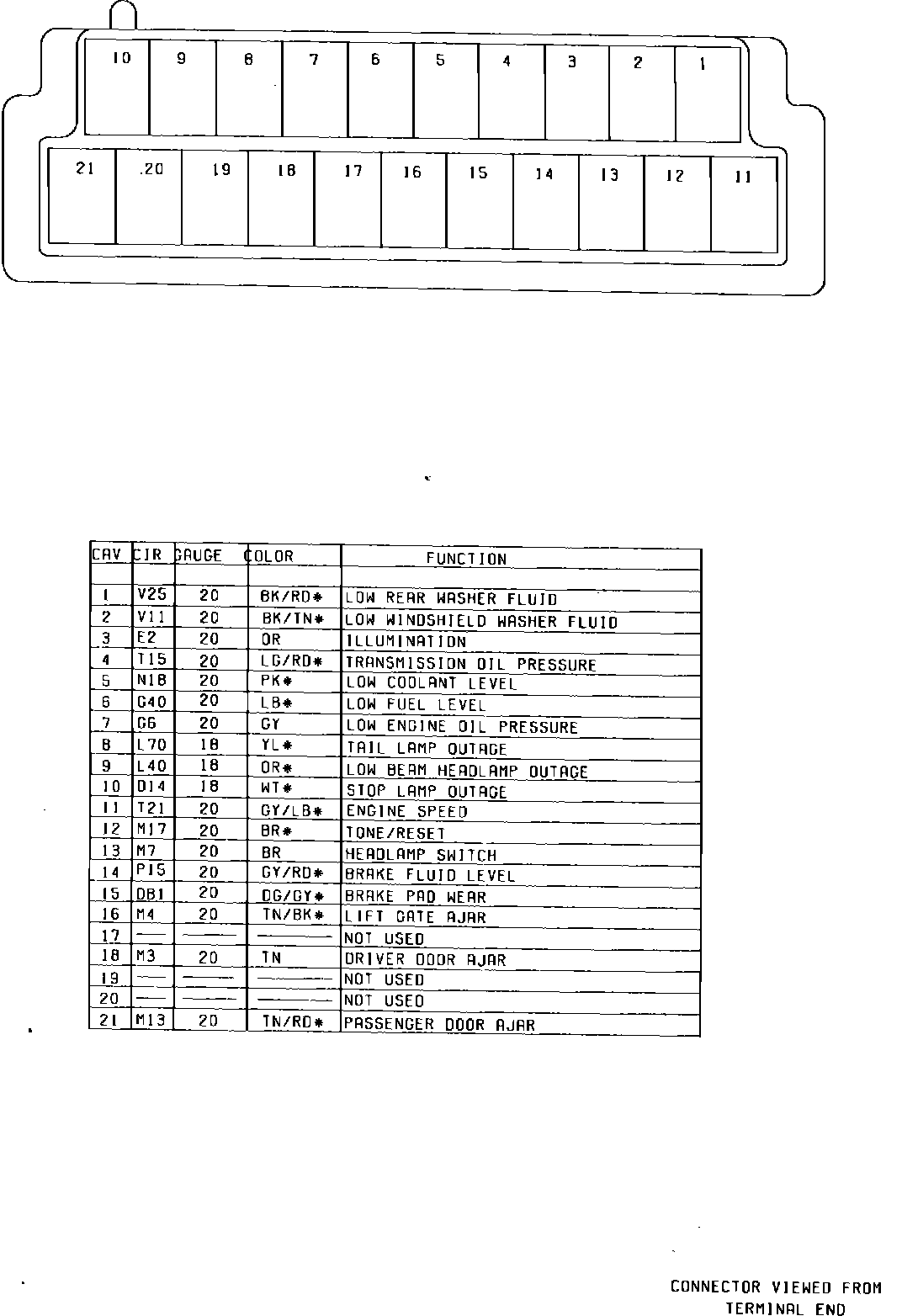

Fig. 6 Electronic Monitor Connectors (Part 1 of 2). 1985:
