Home >> Chrysler >> 1985 >> Laser L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cruise Control >> System Diagram

System Diagram

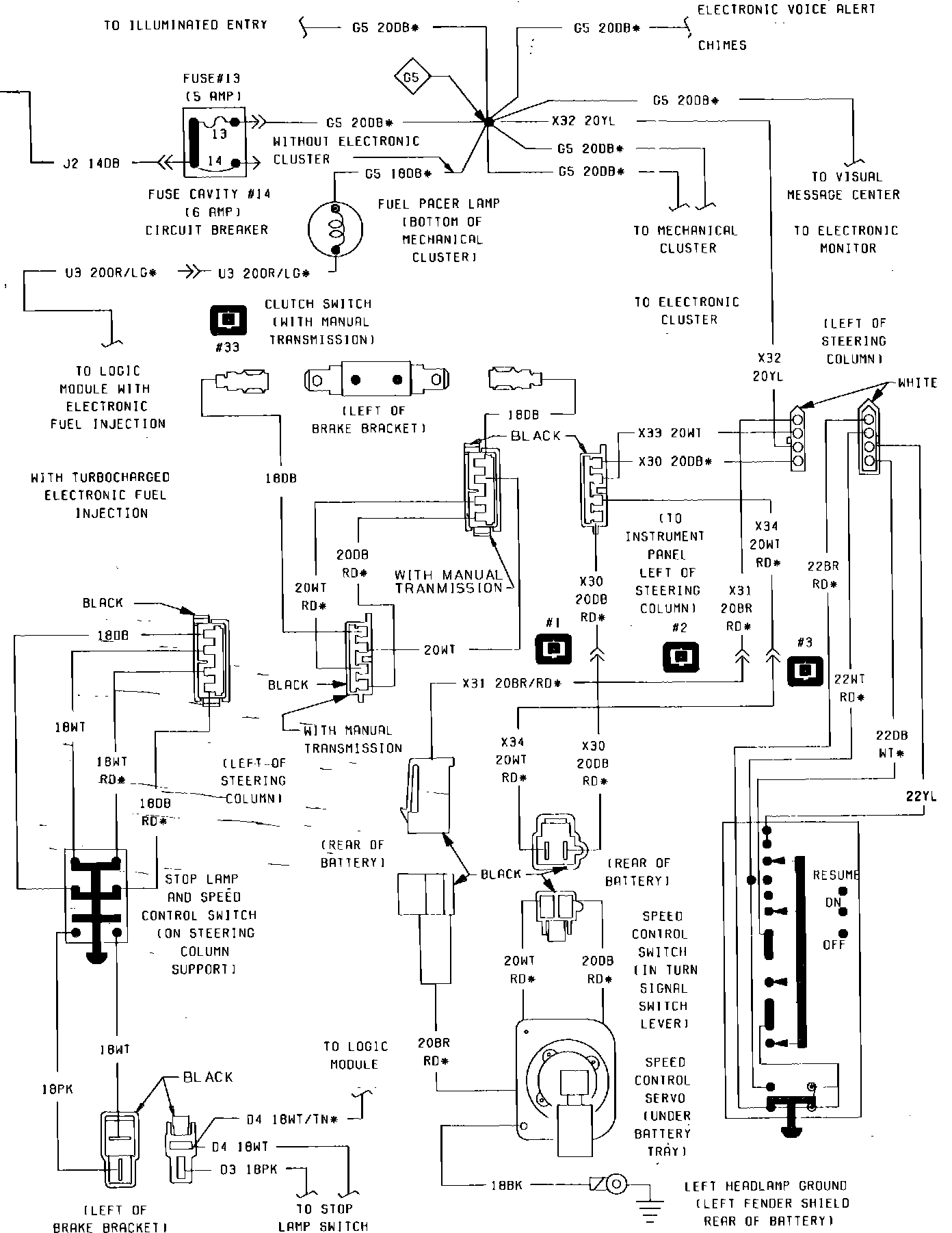

Fig. 31 Ignition Switch & Speed Control Wiring Circuit (Part 1 of 2). 1985:

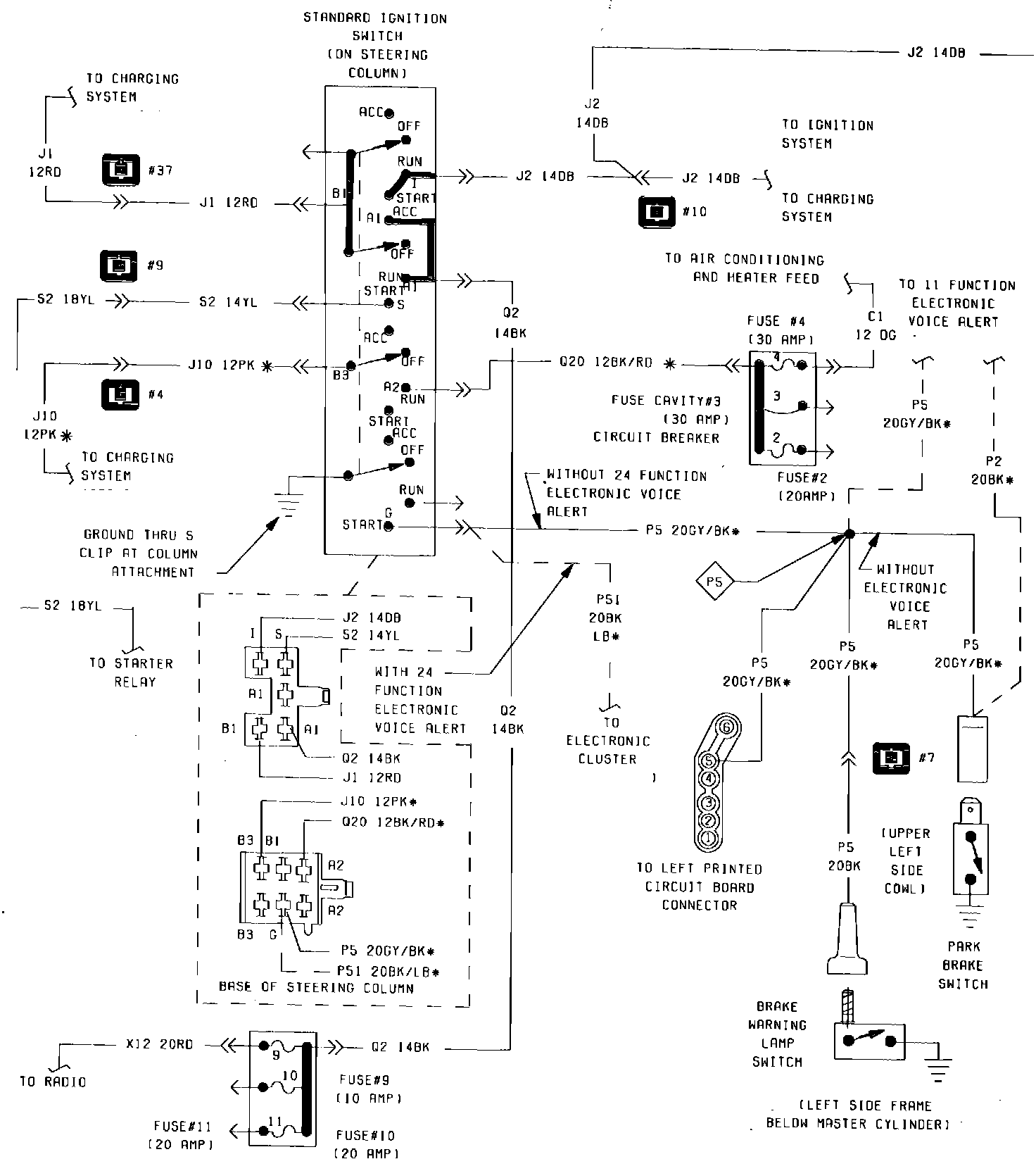

Fig. 31 Ignition Switch & Speed Control Wiring Circuit (Part 2 of 2). 1985:
