Home >> Chrysler >> 1985 >> Laser L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Fuel Distance/Mileage Module >> Part 2 of 3

Part 2 of 3

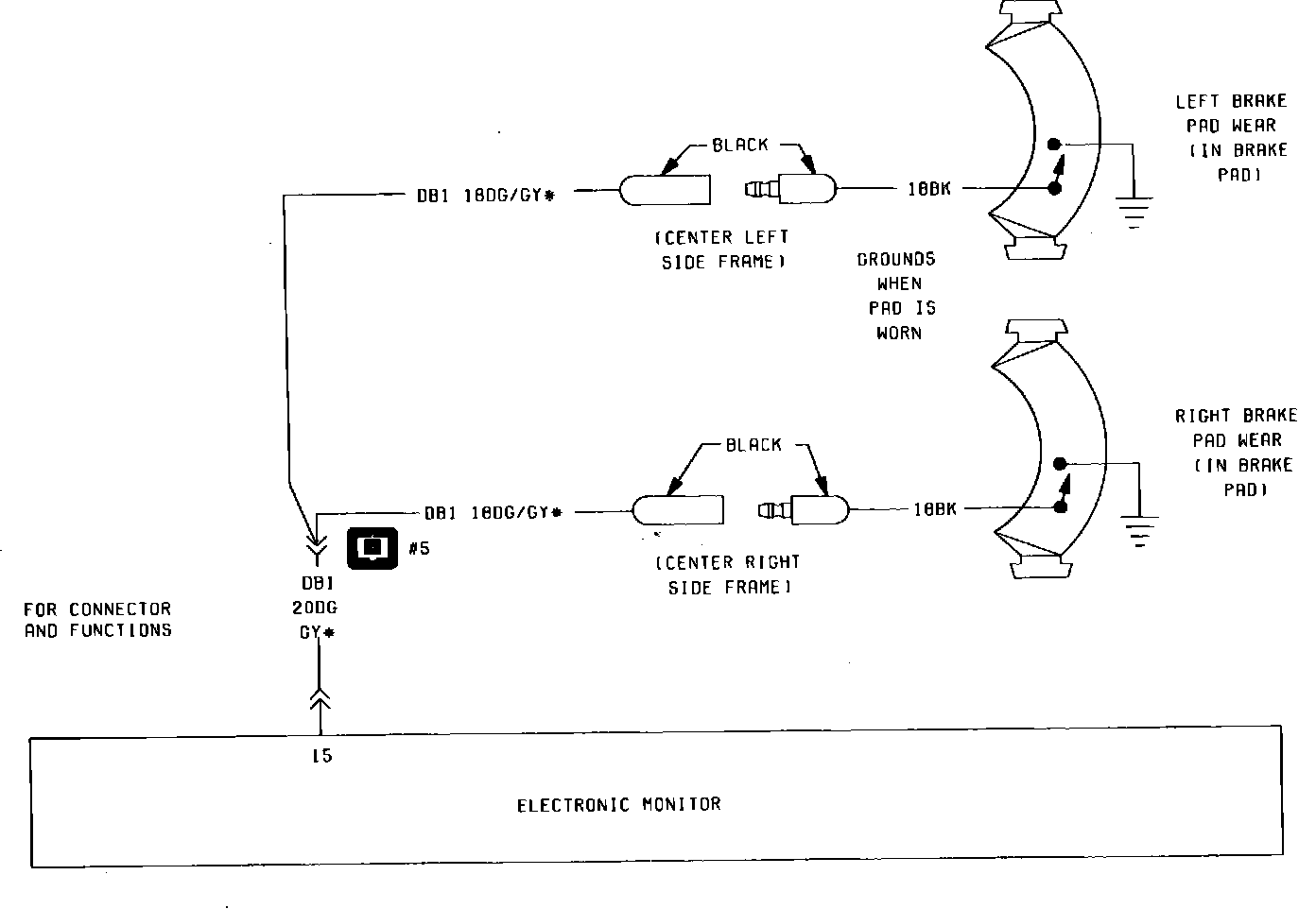

Fig. 22 Electronic Voice Alert Wiring Circuit (24 Function, Part 2 of 3). 1985:
