Key Reminder Switch
Key Reminder Switch

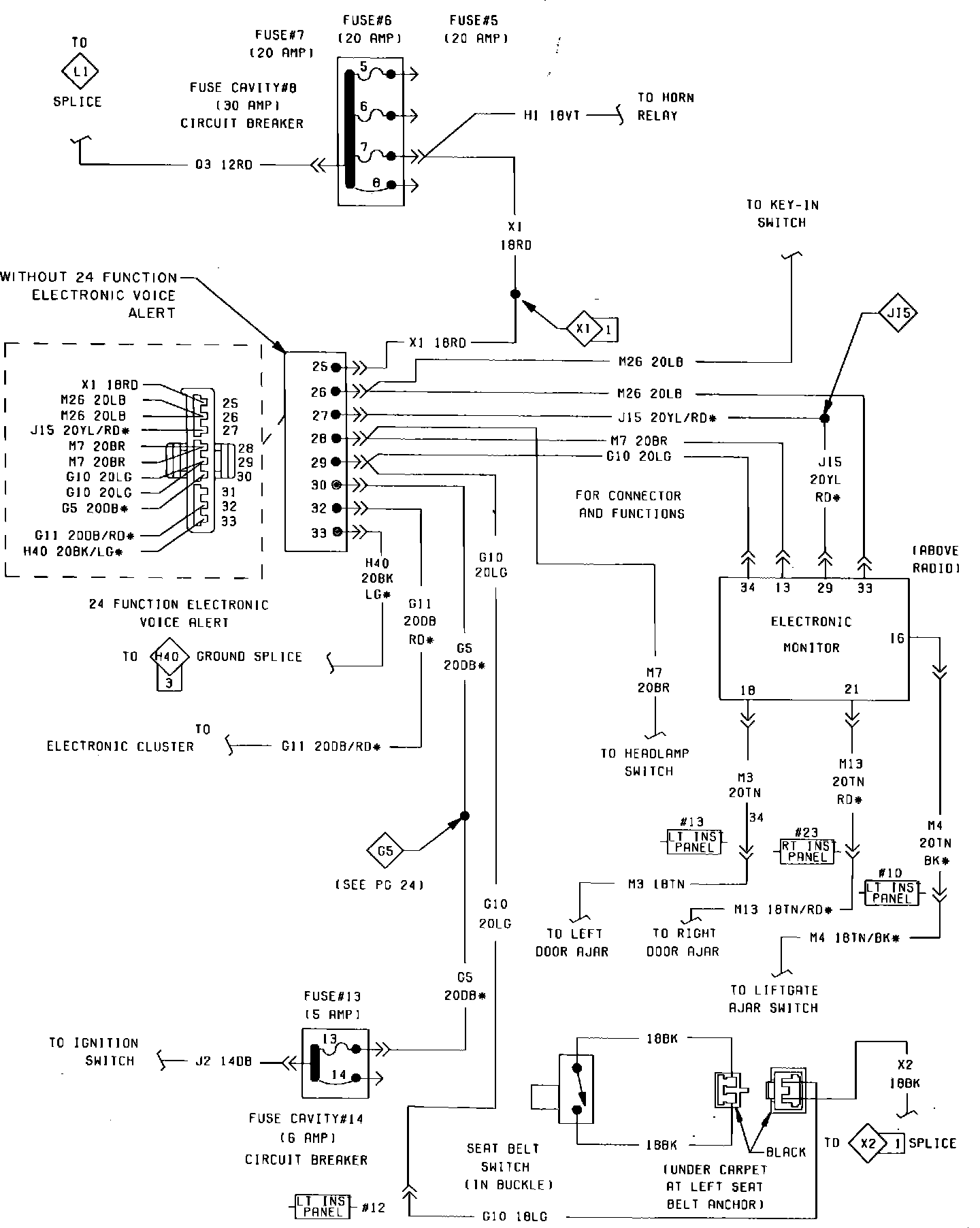

Fig. 46 Seatbelt Warning System Wiring Circuit (With Voice Alert). 1985:
