System Diagram

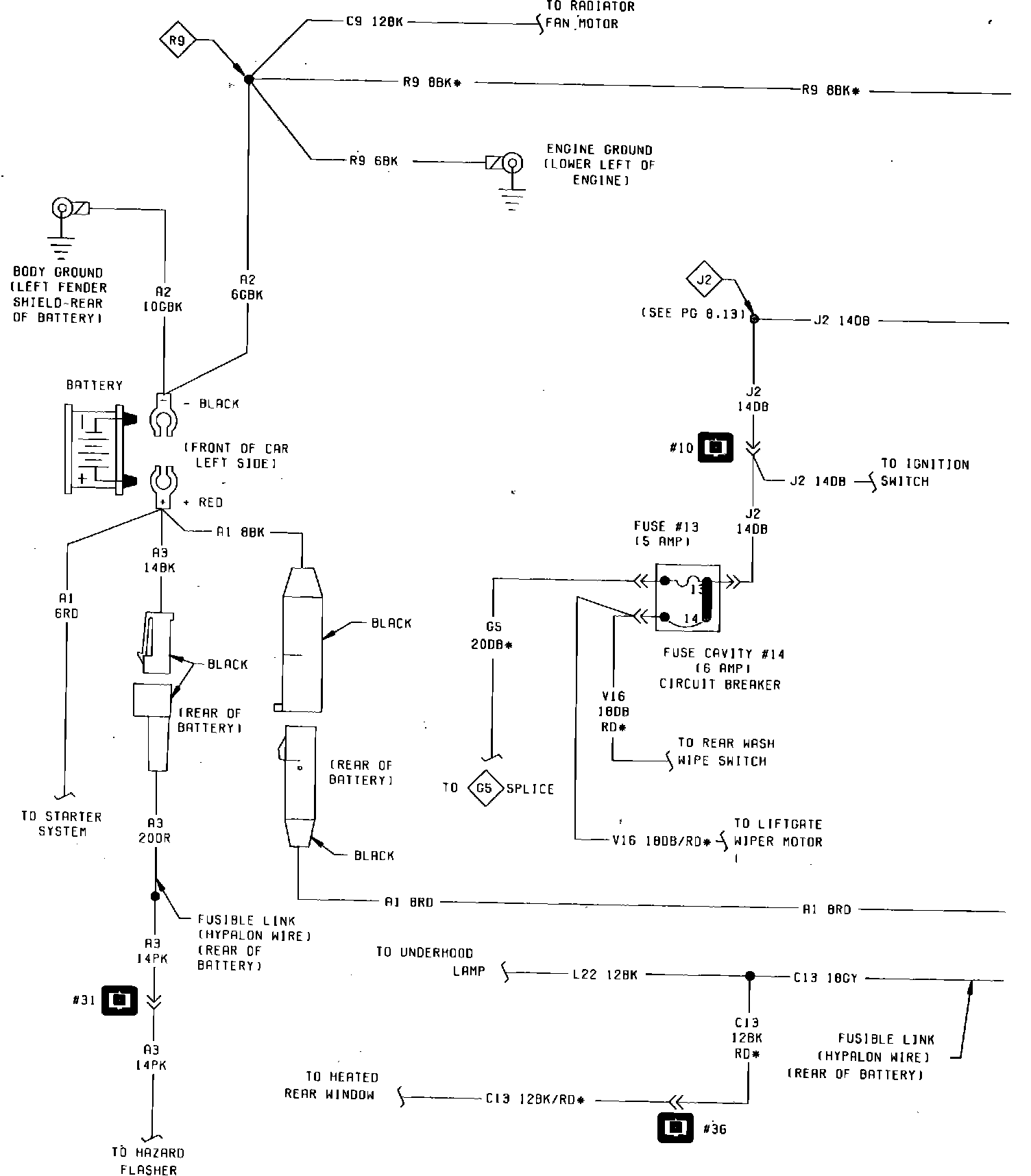

Fig. 15 Charging System Wiring Circuit (Part 1 of 2). 1985:

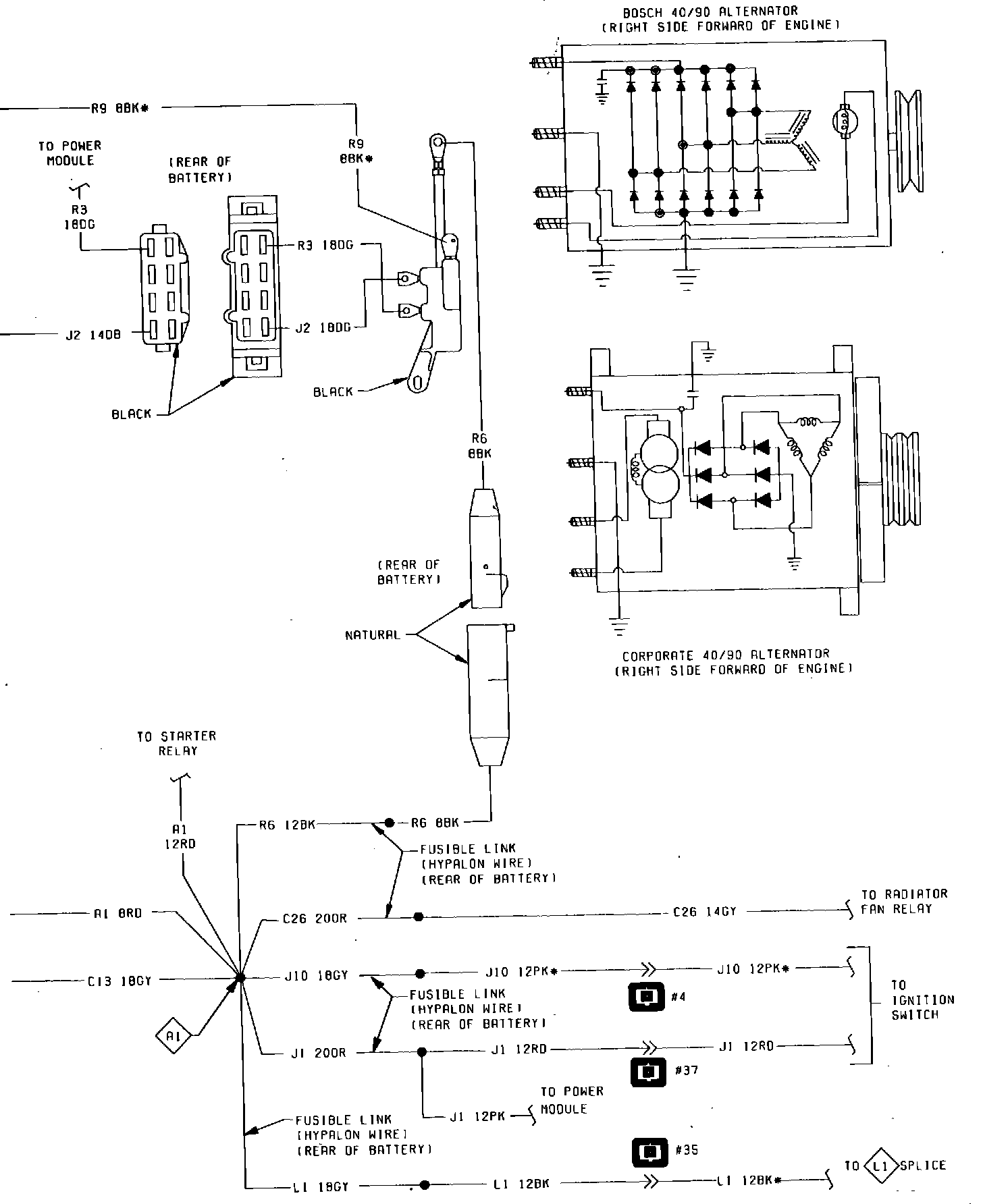

Fig. 15 Charging System Wiring Circuit (Part 2 of 2). 1985:



Fig. 47 Starter System Wiring Circuit. 1985:
