A/C & Heater (Engine Compartment)

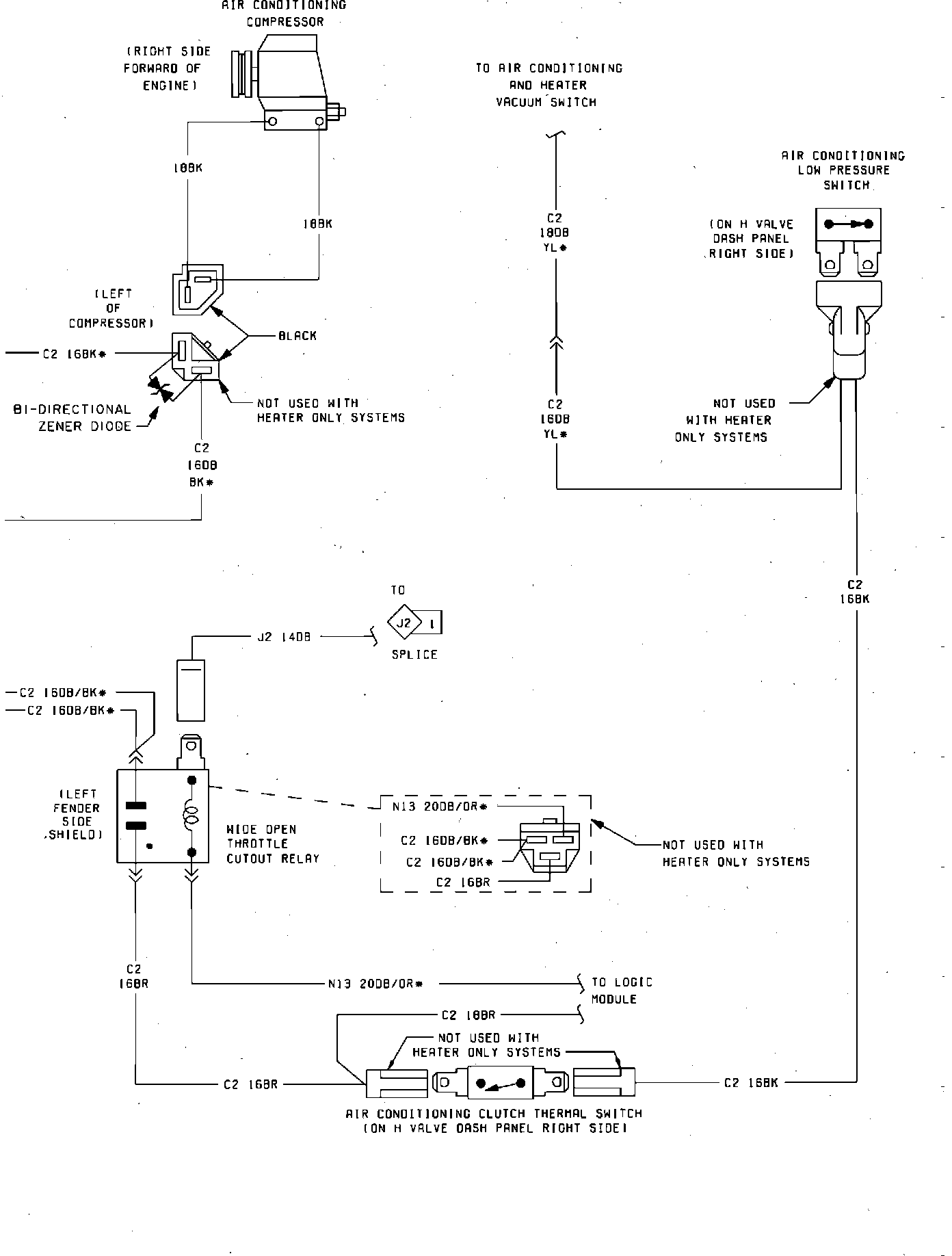

Air Conditioning and Heater System Part 1 Of 2:
Air Conditioning and Heater System Part 2 Of 2:
