Home >> Chrysler >> 1985 >> Laser L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 4

Part 4

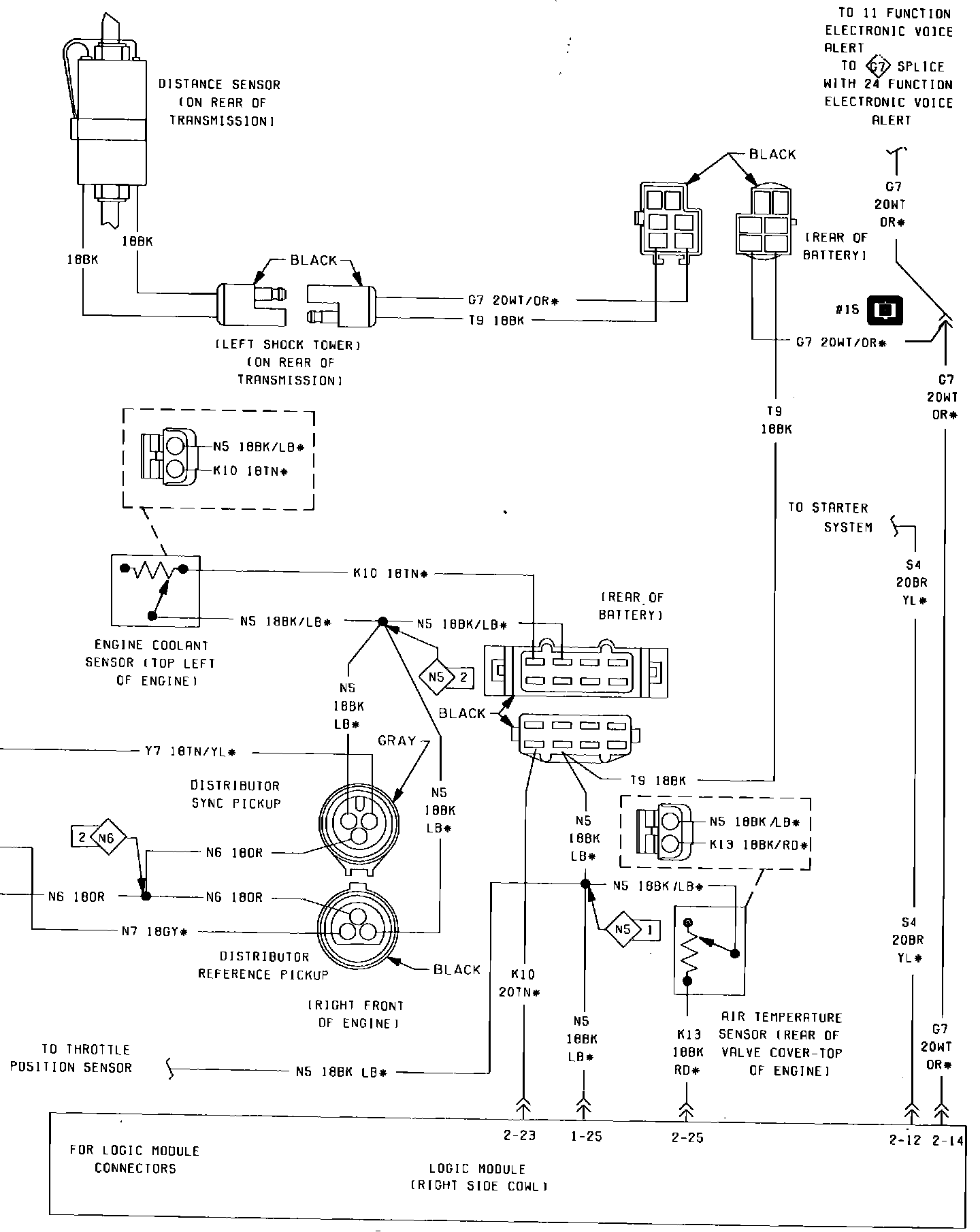

Fig. 33 Ignition System Wiring Circuit (With Turbocharger, Part 4 of 5). 1985:
