Refrigerant System Diagnosis

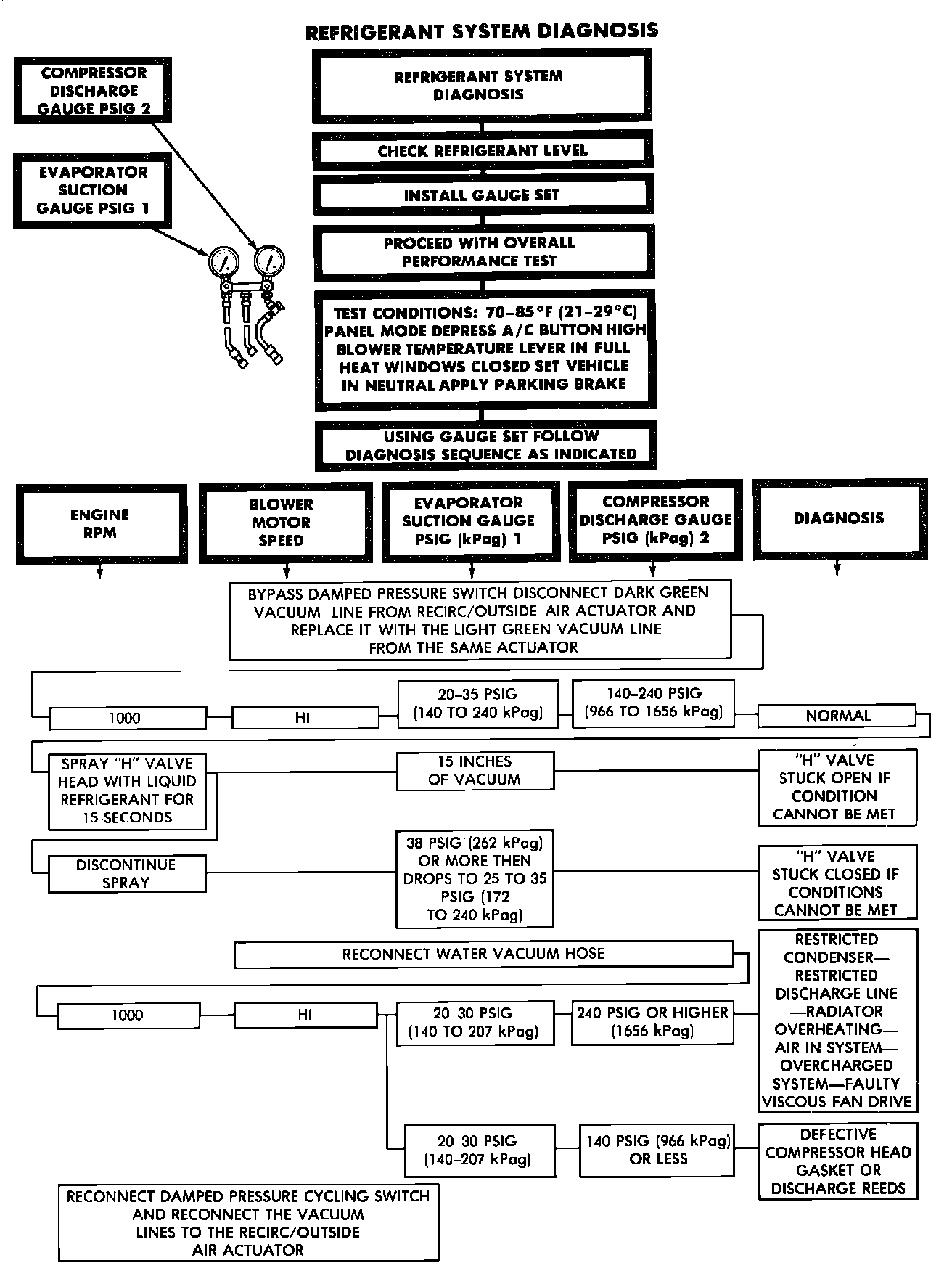

Refrigerant Diagnosis Chart. Front Wheel Drive cars Exc. Horizon & Omni:
