Multiple Junction Connector
>>
Instrument Panel Side
Instrument Panel Side

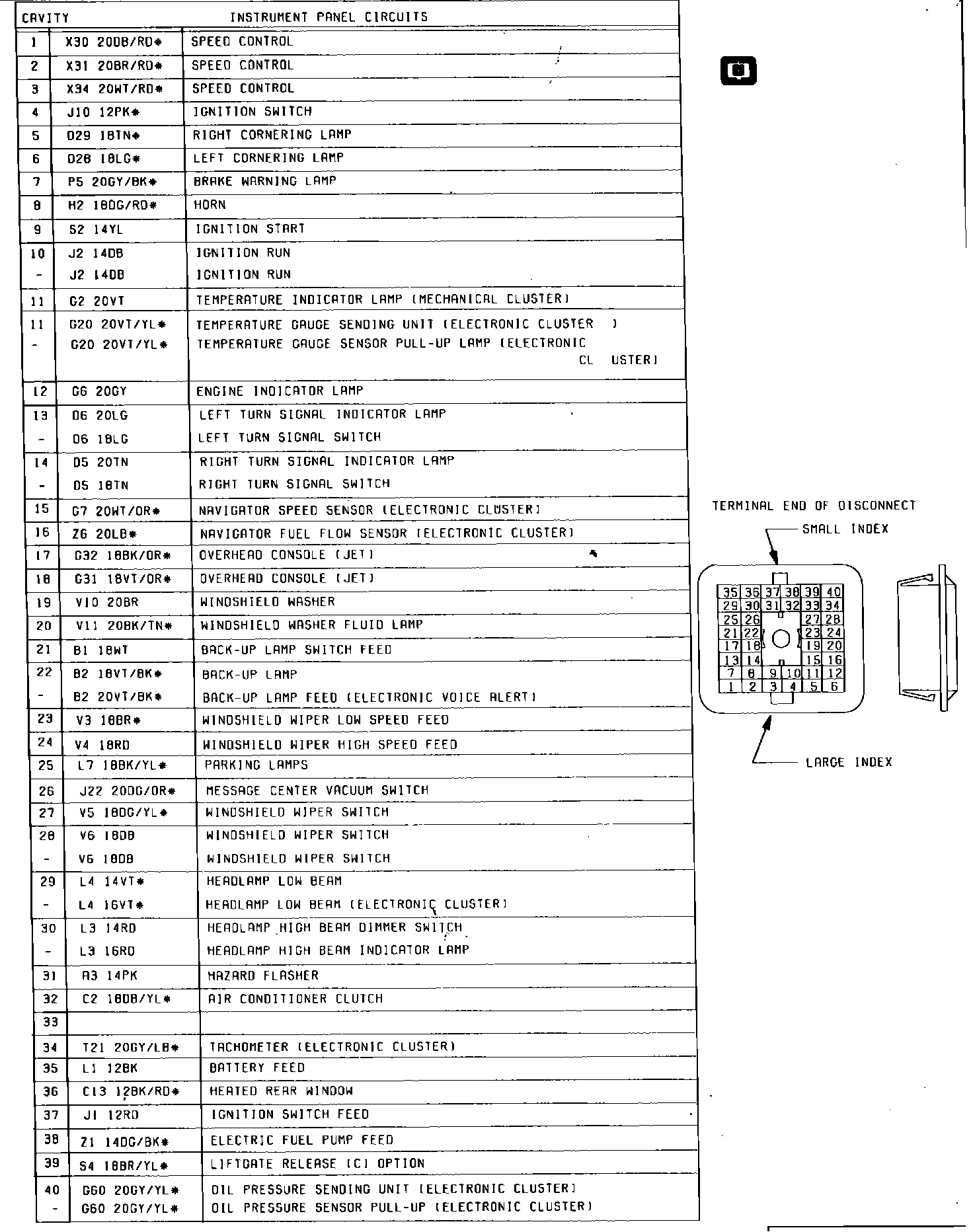

Fig. 5 Bulkhead Connector (40 Way). 1985 Instrument Panel Side:
