System Diagram

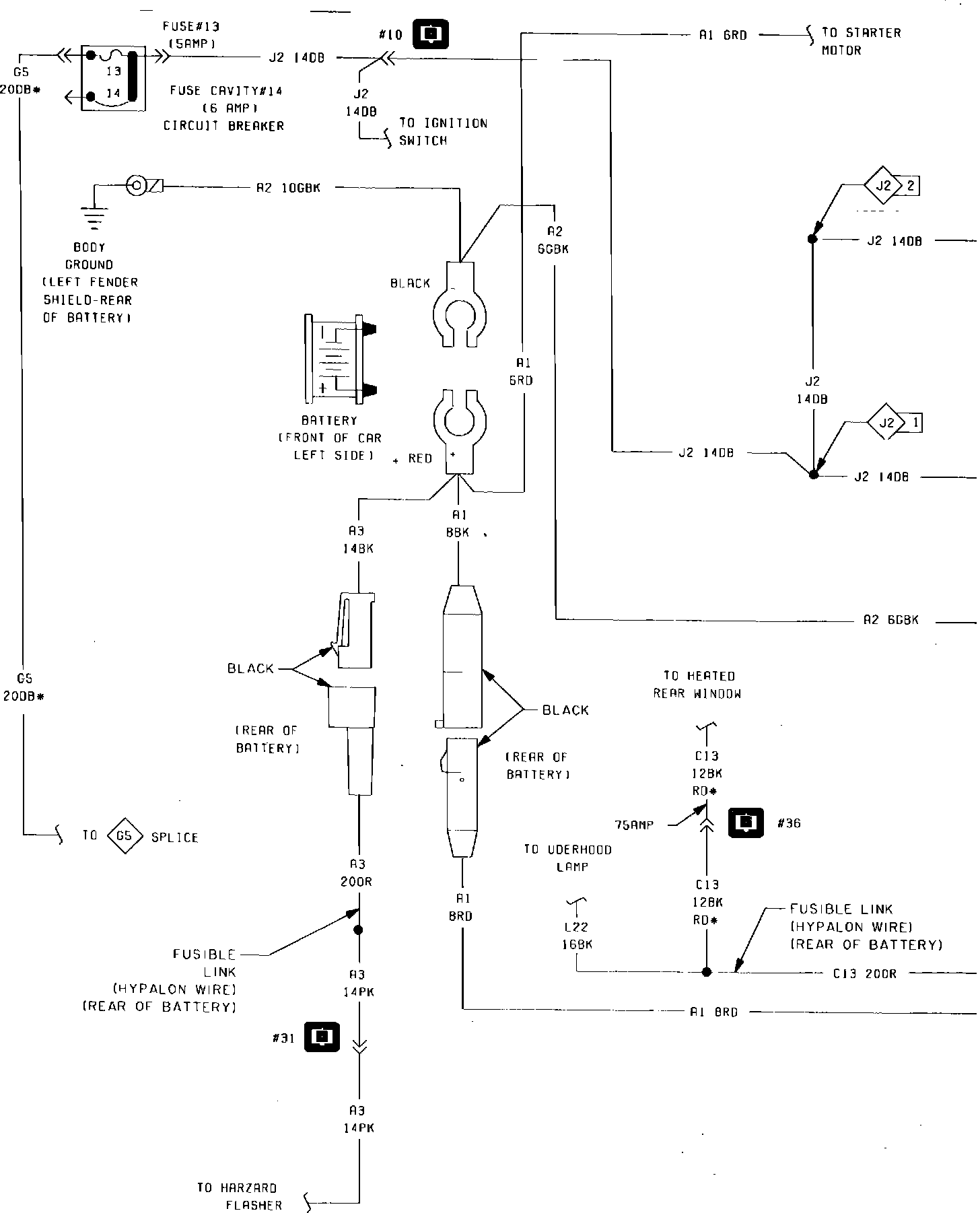

Fig. 21 Charging System Wiring Circuit (Part 1 of 2). 1985 W/2.2 Litre Engine Less EFI Or Turbo:

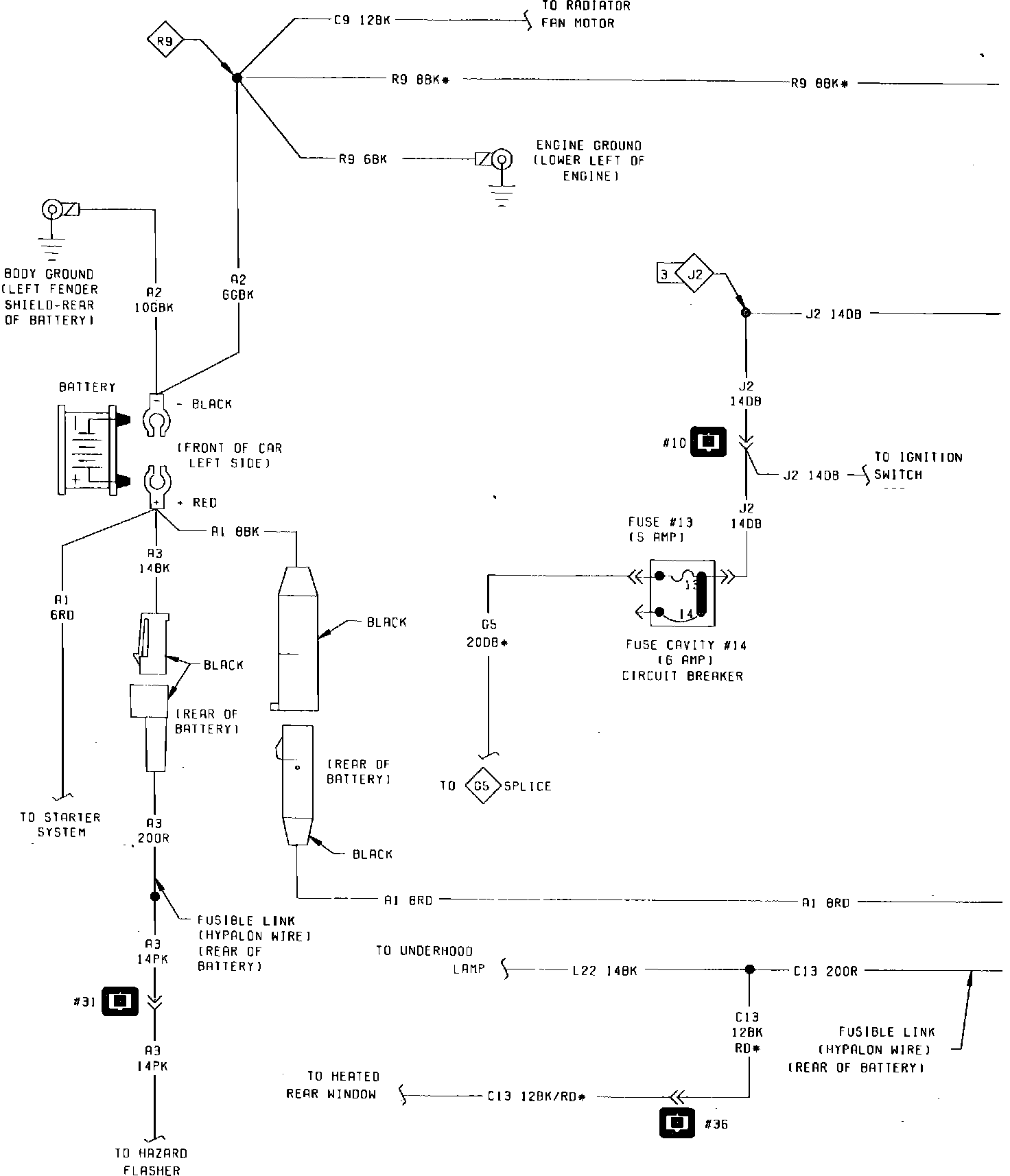

Fig. 21 Charging System Wiring Circuit (Part 2 of 2). 1985 W/2.2 Litre Engine Less EFI Or Turbo:

Fig. 22 Charging System Wiring Circuit (Part 1 of 2). 1985 W/2.2 Litre Engine With EFI Or Turbo:

Fig. 22 Charging System Wiring Circuit (Part 2 of 2). 1985 W/2.2 Litre Engine With EFI Or Turbo:
