Electrical Diagrams

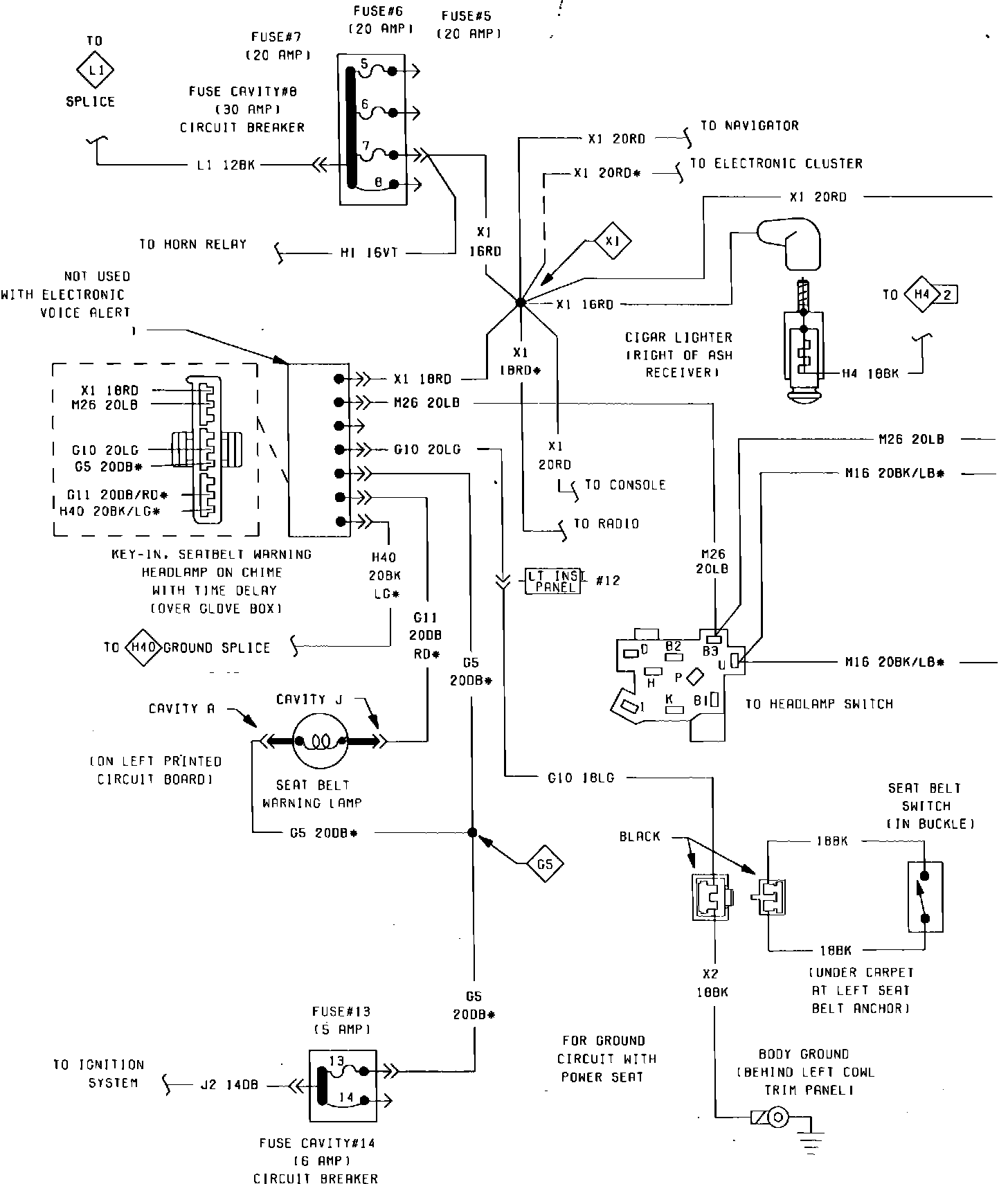

Fig. 54 Ignition Key-In & Seatbelt Warning System Wiring Circuit. 1985 Seatbelt:
