Courtesy & Dome Lamp

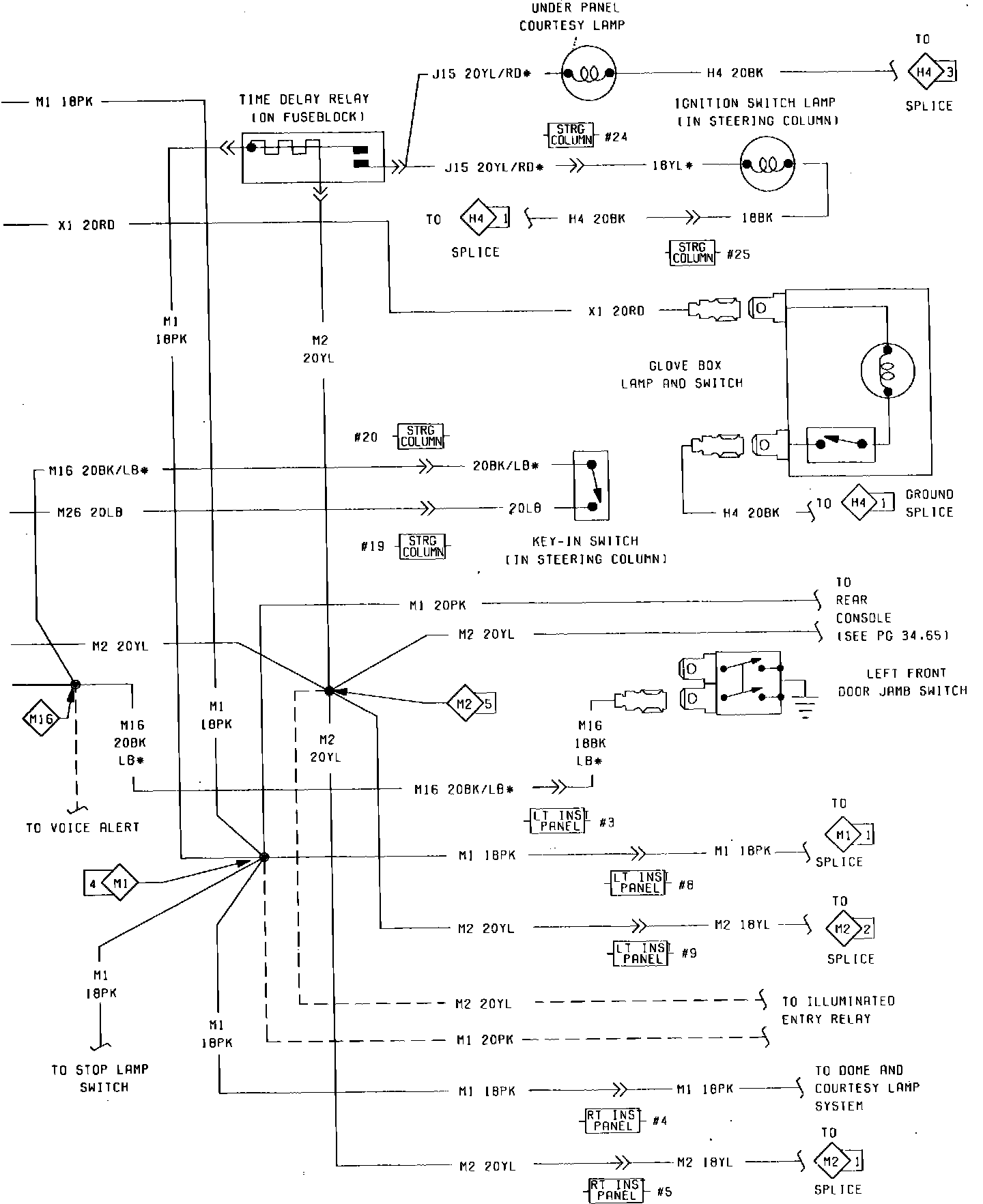

Fig. 14 Courtesy & Dome Lamps & Seatbelt Warning System Wiring Circuit 1985 Courtesy & Dome:
