Home >> Chrysler >> 1985 >> Lebaron GTS L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Vanity Lamp

Vanity Lamp

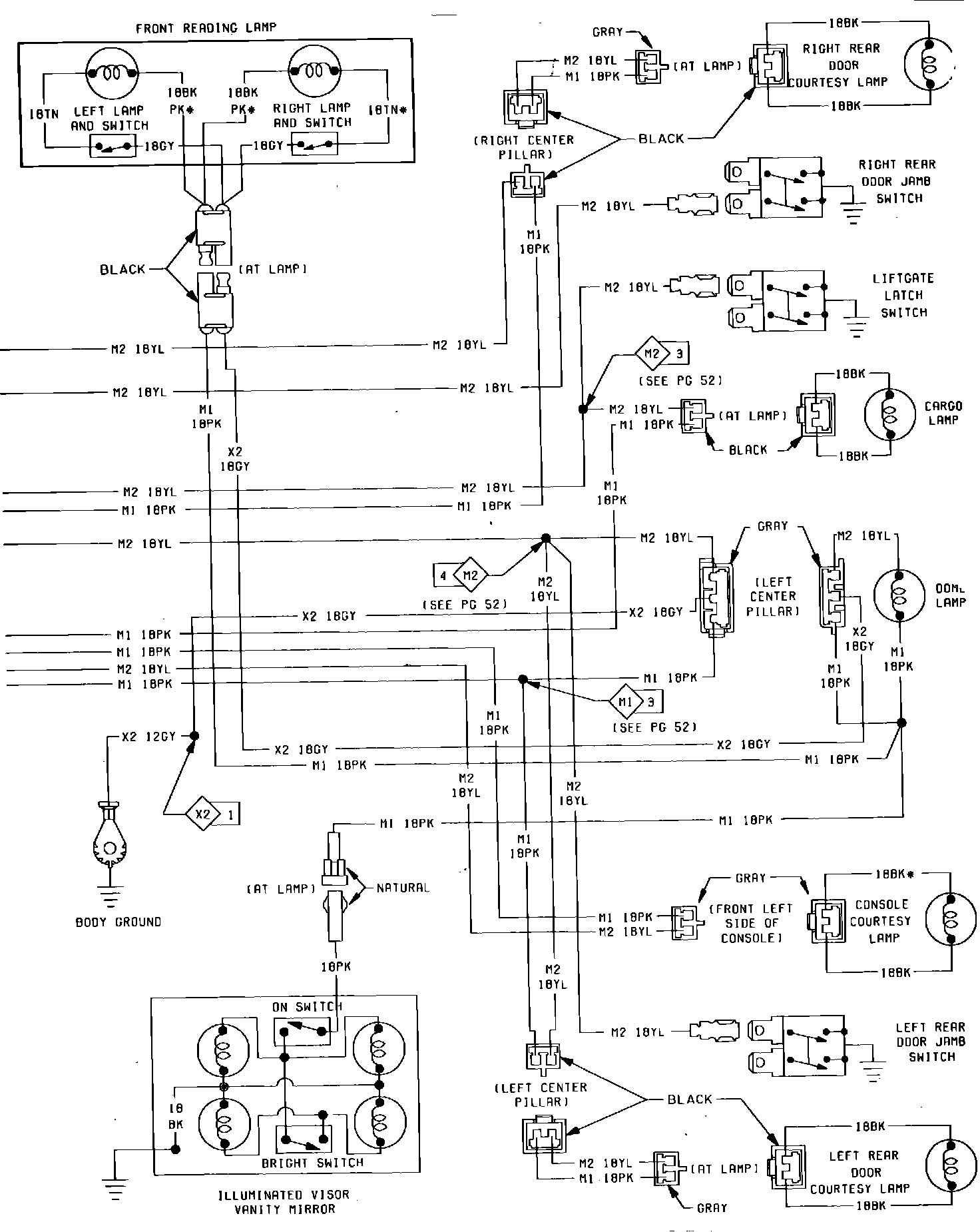

Fig. 15 Dome, Door Courtesy & Vanity Lamps System Wiring Circuit (Part 1 of 2). 1985:

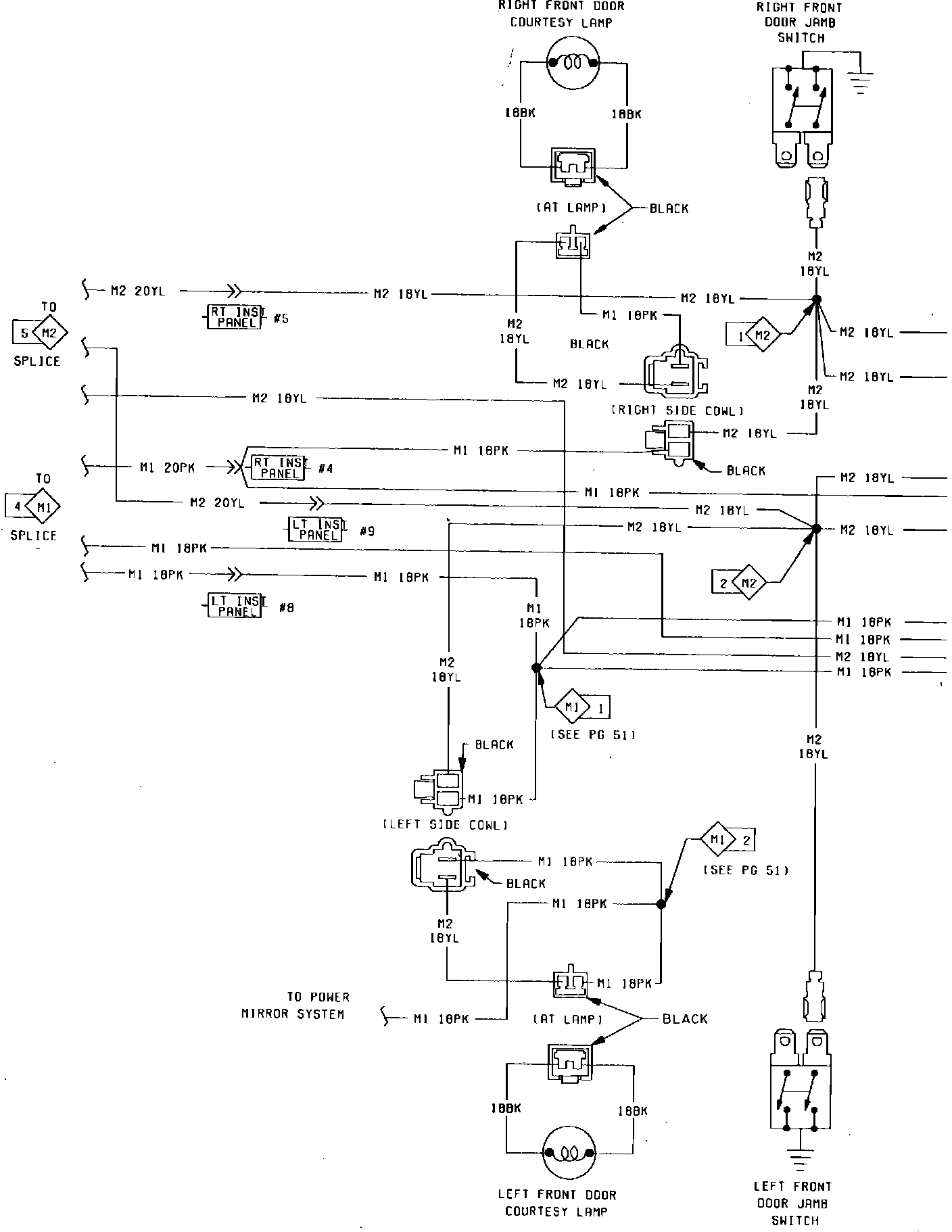

Fig. 15 Dome, Door Courtesy & Vanity Lamps System Wiring Circuit (Part 2 of 2). 1985:
