A/C & Heater (Instrument Panel)
A/C & Heater (Instrument Panel)

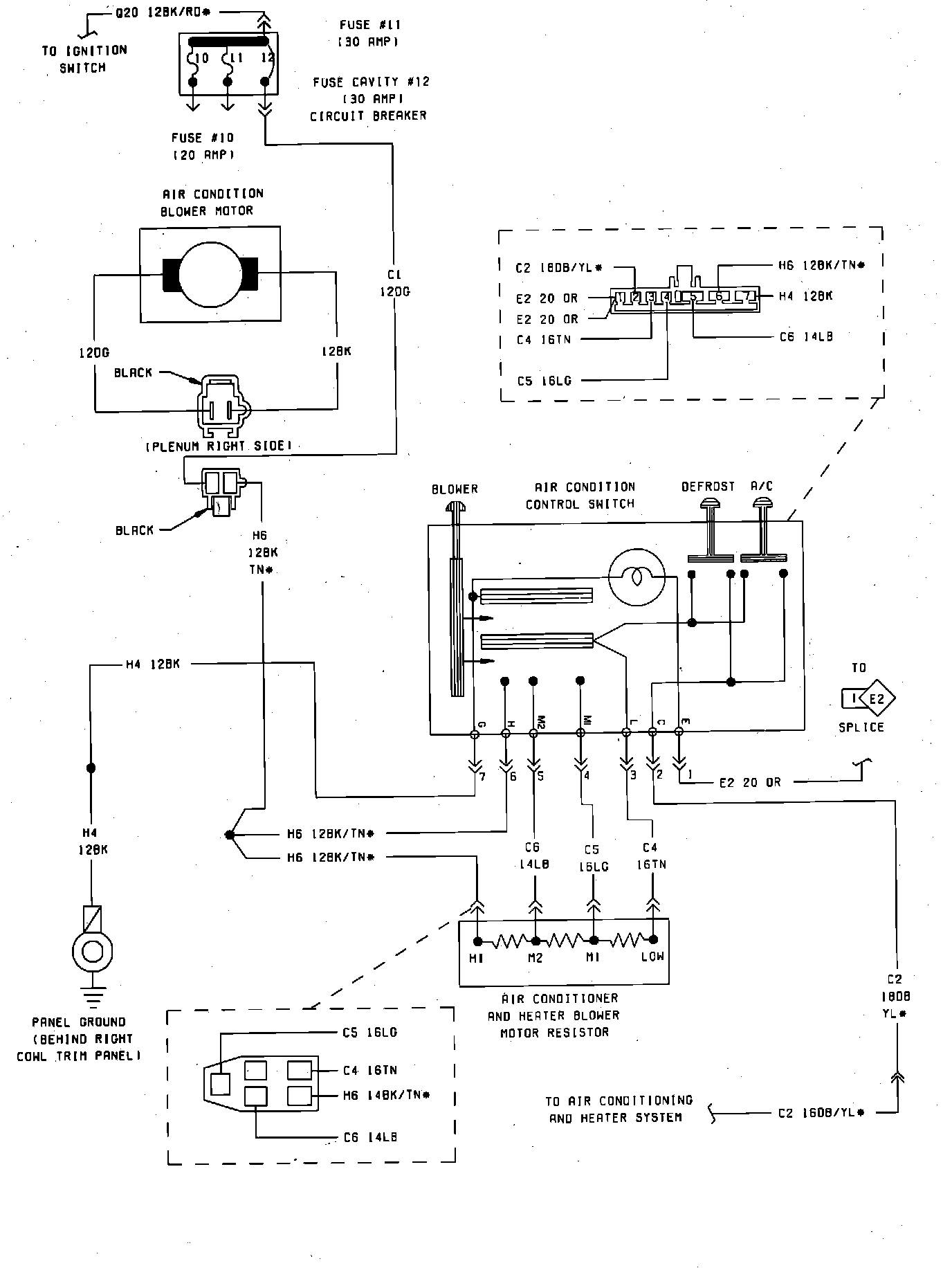

Air Conditioning Circuit (Instrument Panel Portion). 1985 Lancer & LeBaron GTS:
