Home >> Chrysler >> 1985 >> Lebaron GTS L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Part 1 of 2

Part 1 of 2

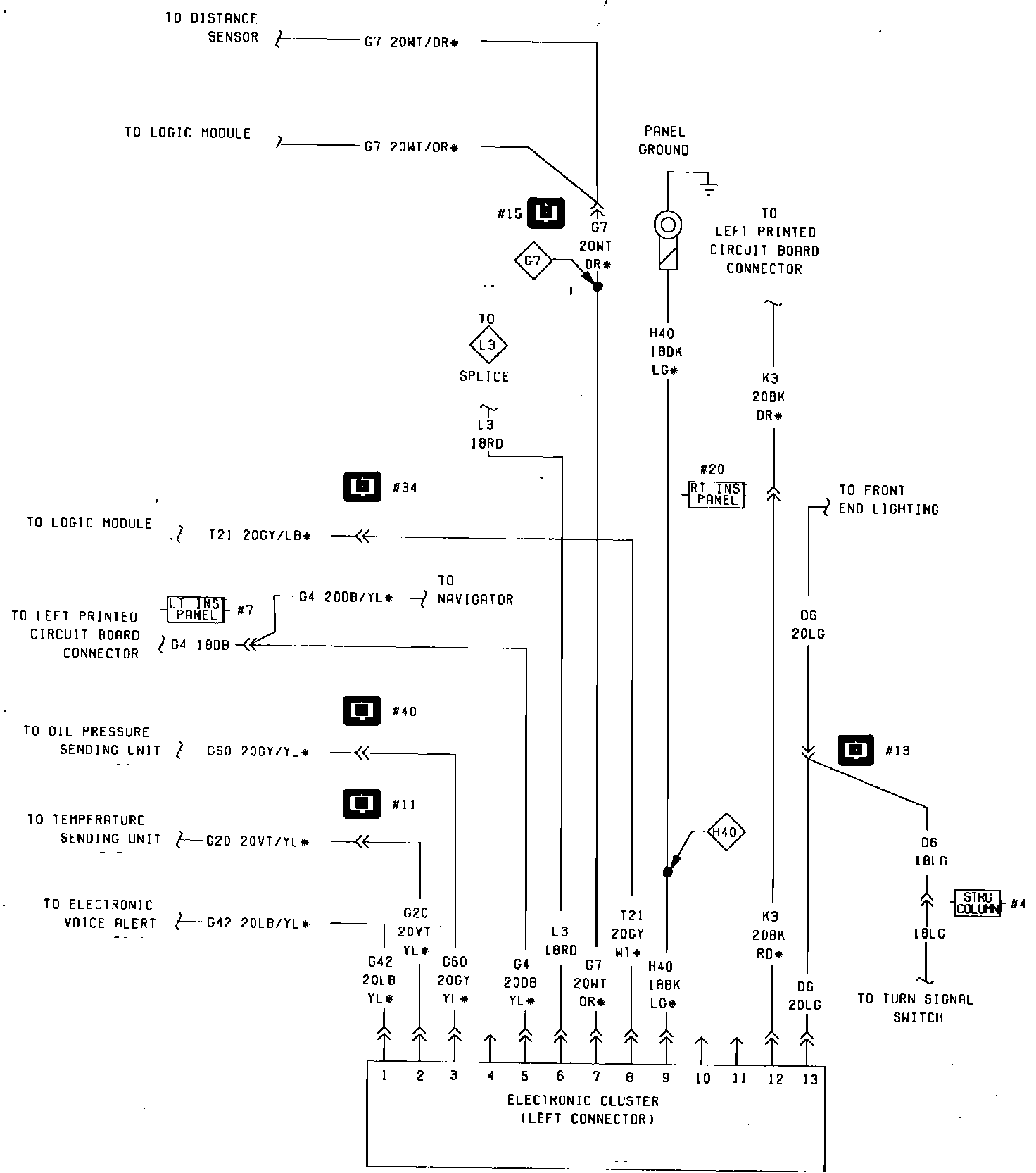

Fig. 16 Electronic Cluster Wiring Circuit (Part 1 of 2). 1985:
