Home >> Chrysler >> 1985 >> Lebaron Sedan L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Amplifier, Sound System >> Part 2 of 2

Part 2 of 2

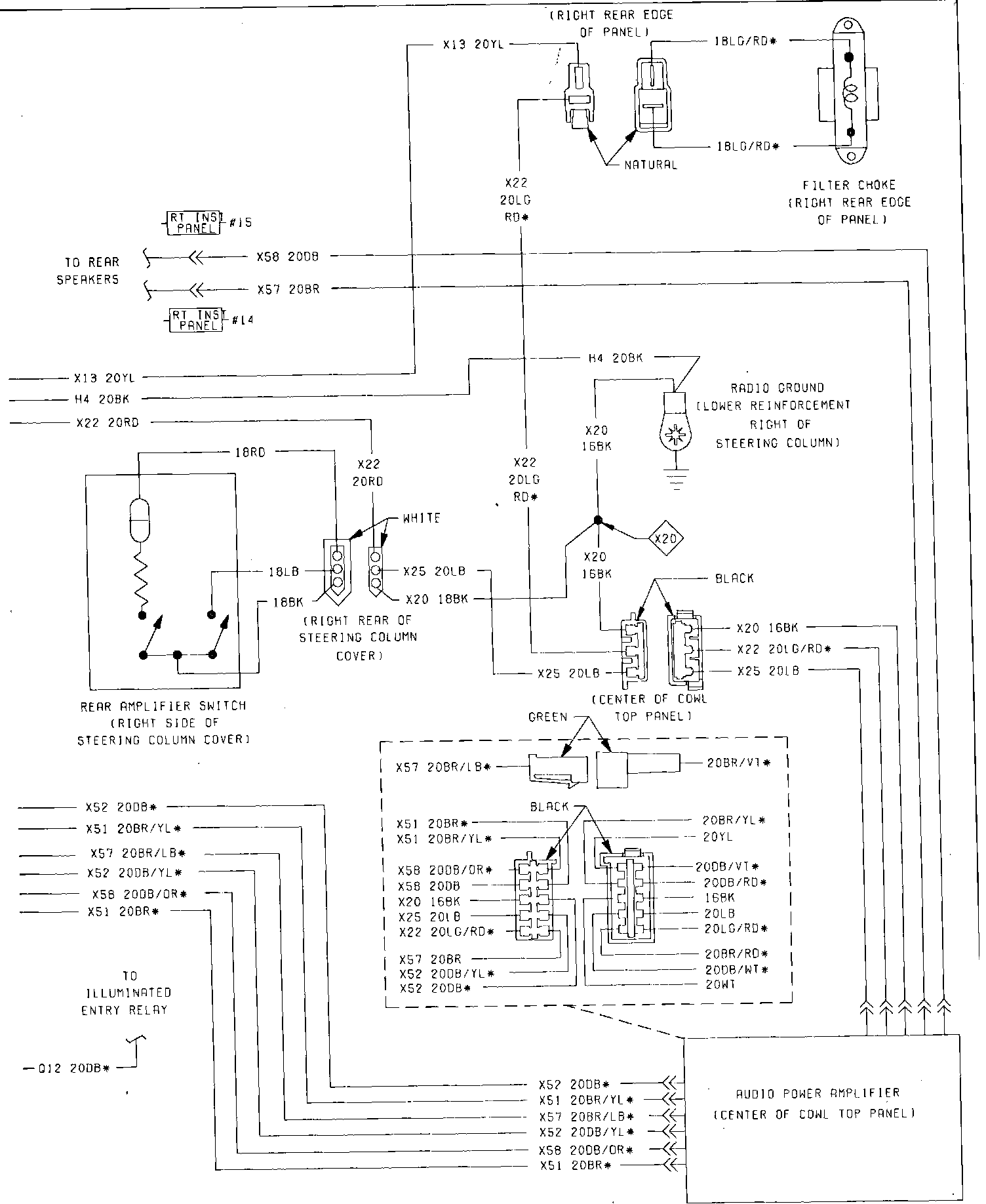

Fig. 77 Radio Amplifier Wiring Circuit (Stereo, Part 2 of 2). 1985:
