Electronic Navigator & Console Wiring Circuit

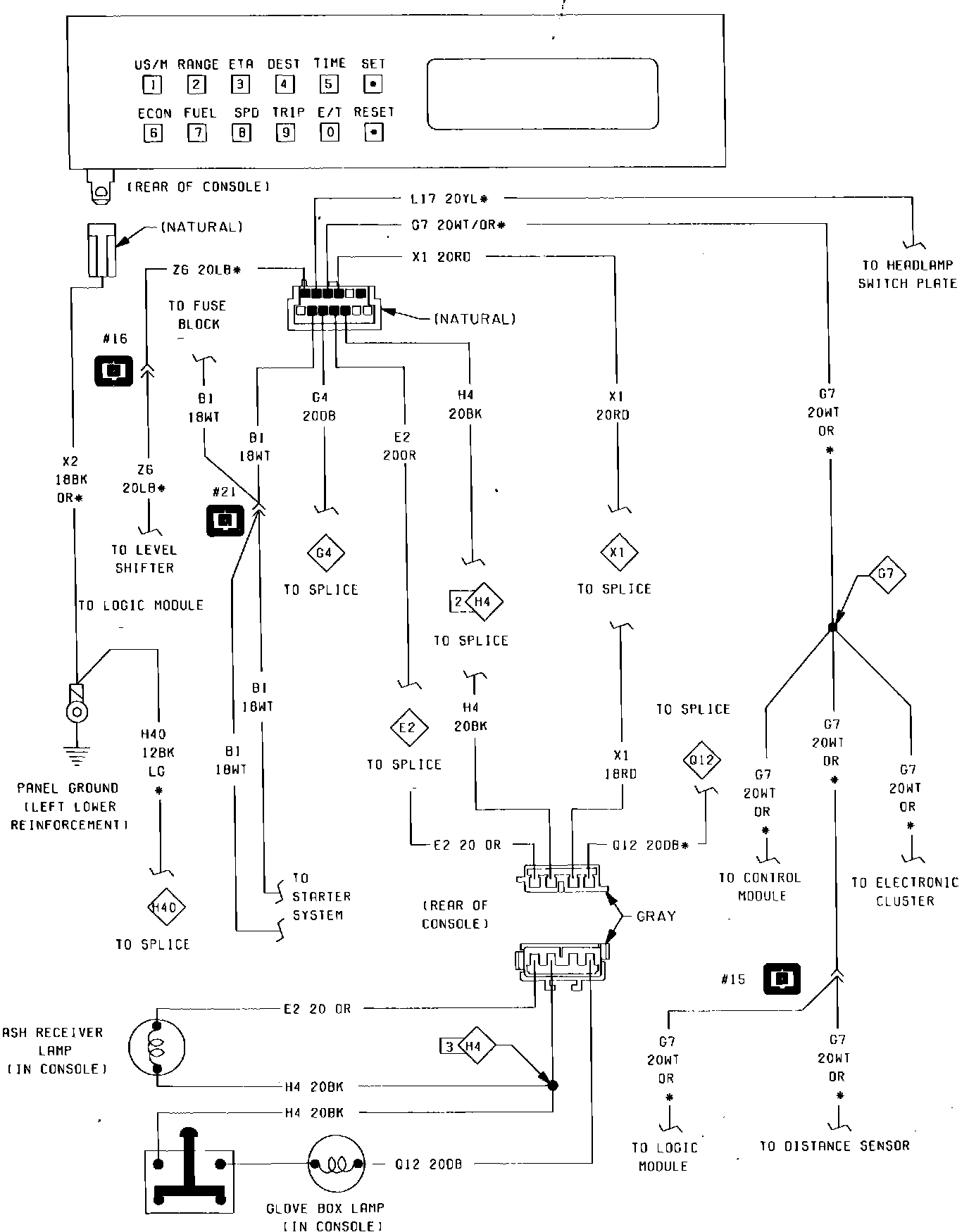

Fig. 37 Electronic Navigator & Console Wiring Circuit. 1985:
