Rear Lighting

Fig. 80 Rear Lighting Wiring Circuit (Part 1 of 2). 1985 Except New Yorker & Wagon:

Fig. 80 Rear Lighting Wiring Circuit (Part 2 of 2). 1985 Except New Yorker & Wagon:

Fig. 82 Rear Lighting Wiring Circuit (Part 1 of 2). 1985 Wagon:

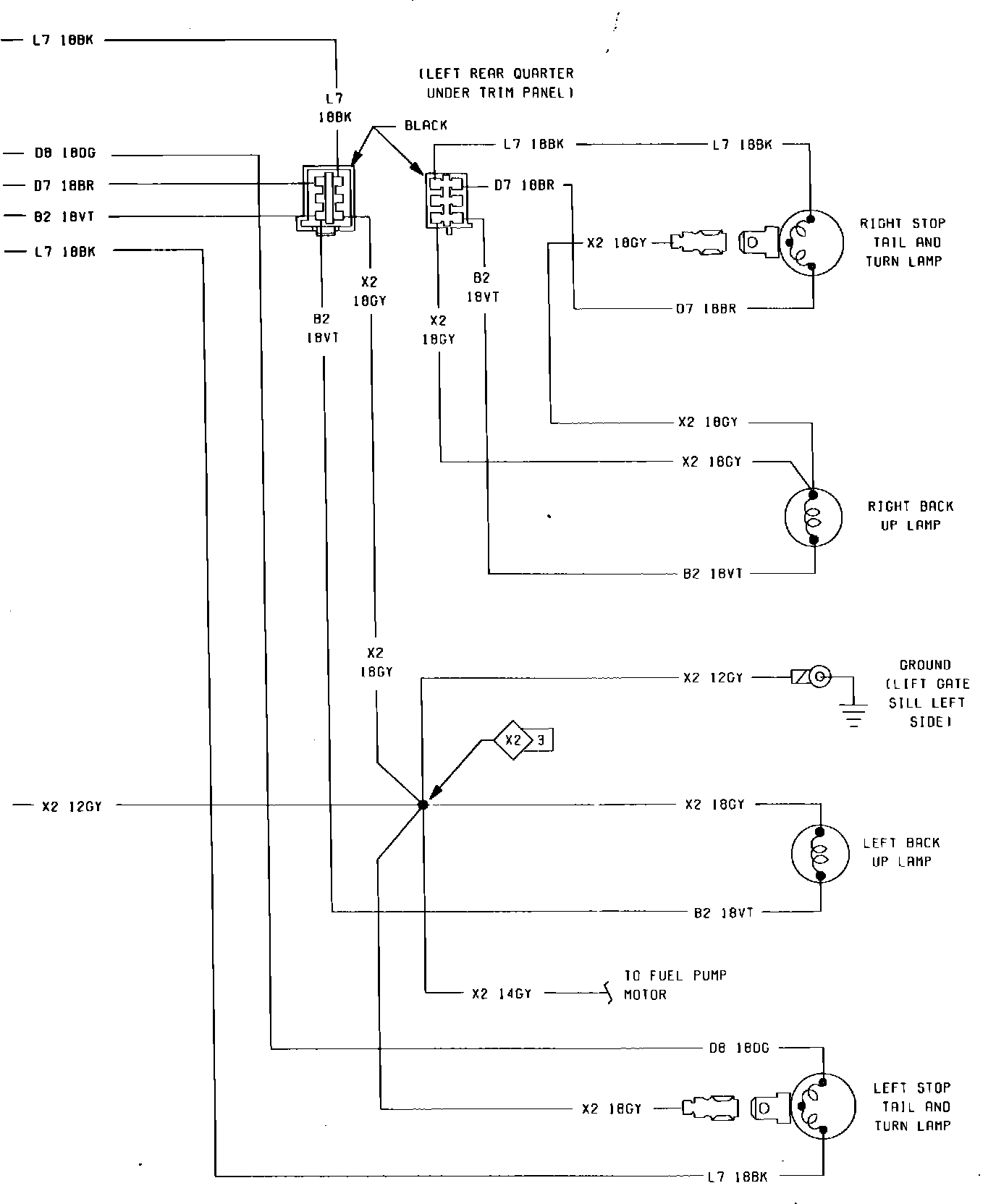

Fig. 82 Rear Lighting Wiring Circuit (Part 2 of 2). 1985 Wagon:
