Home >> Chrysler >> 1985 >> Lebaron Town & Country L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 5

Part 5

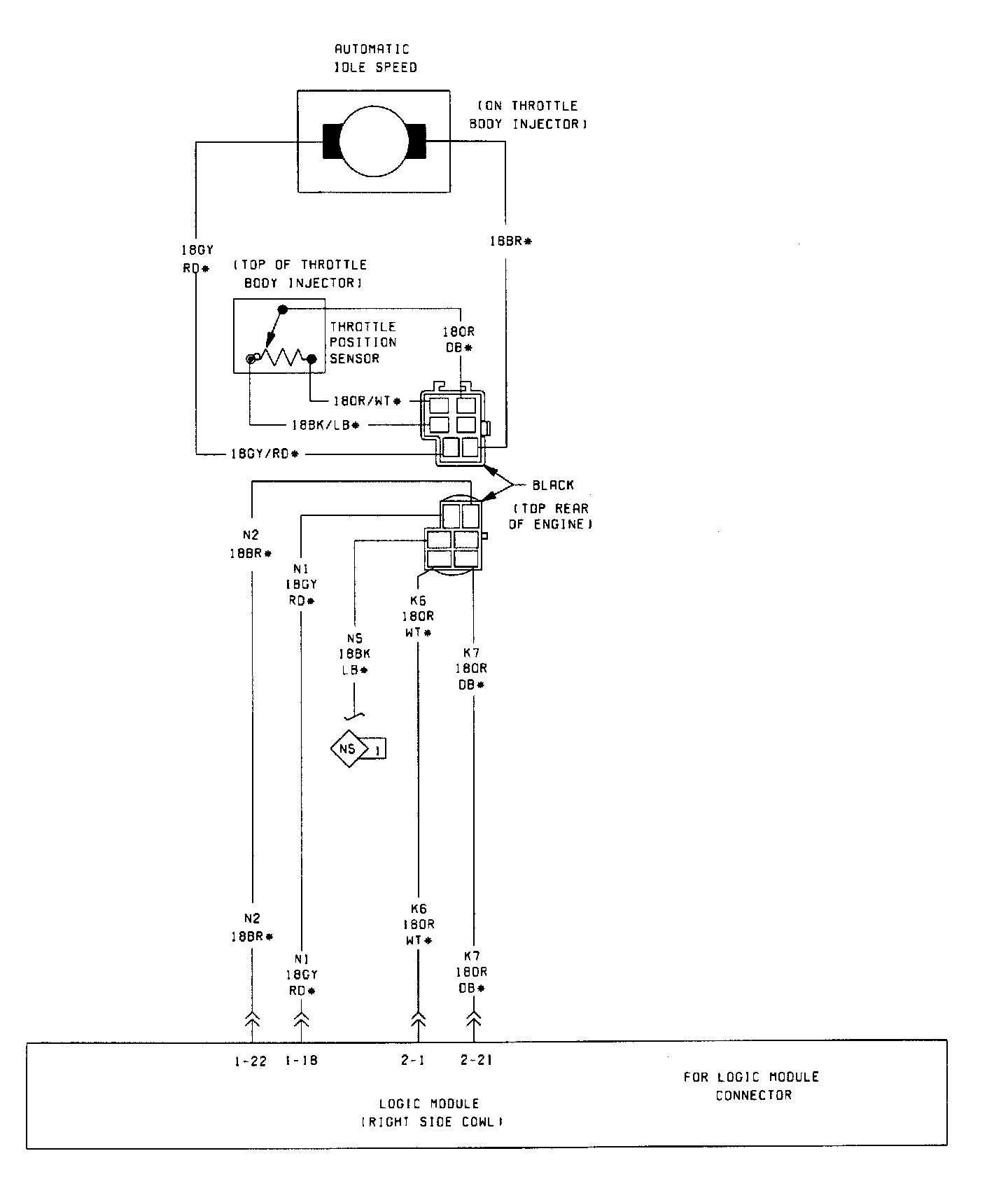

Fig. 34 Electronic Ignition System Wiring Circuit (Part 5 of 5). 1985 W/EFI Turbo:
