Cooling System
>>
W/Feedback Carburetor
W/Feedback Carburetor

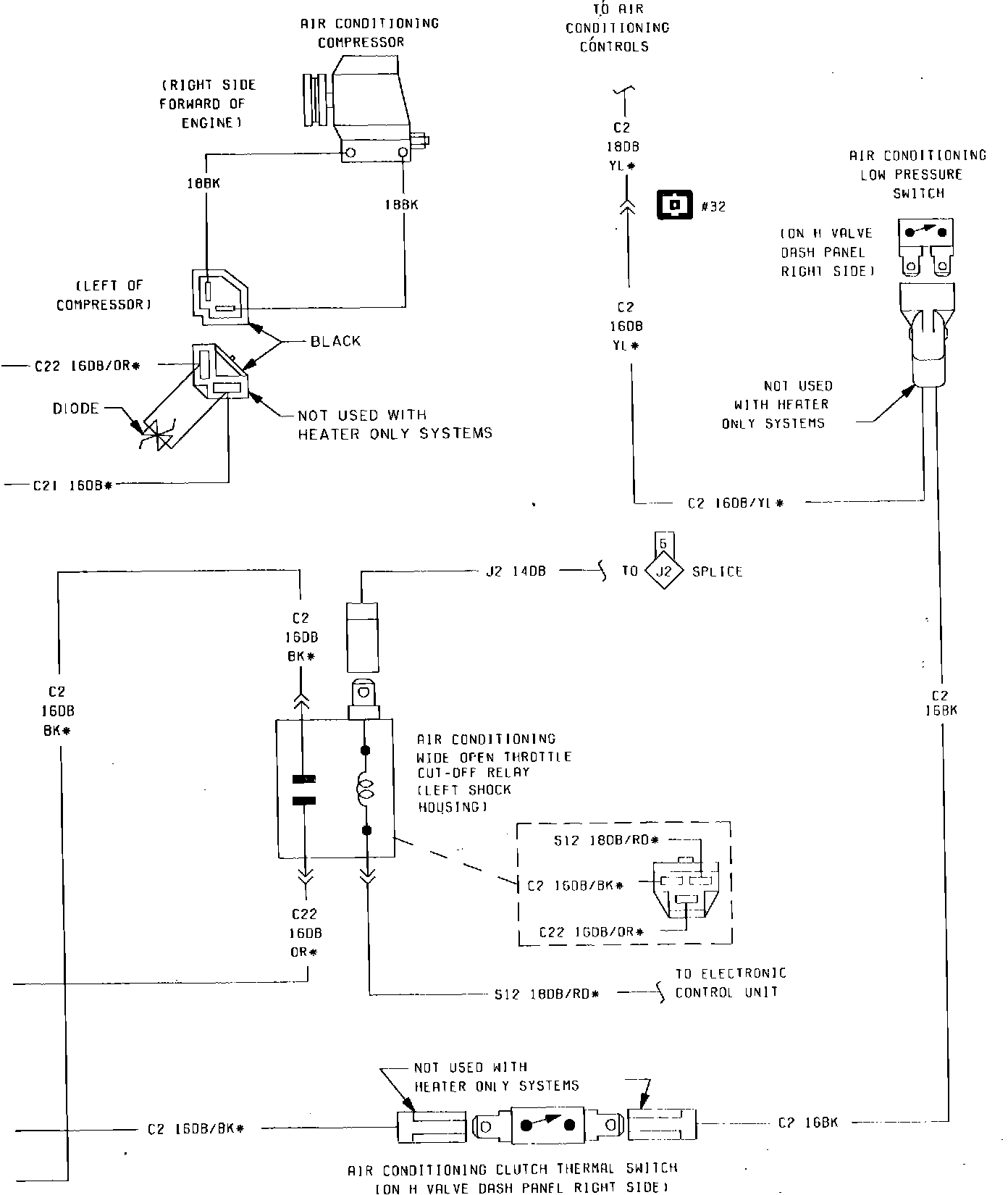

Air Conditioning & Heater Wiring Circuit With Feedback Carb (Part 1 of 2):

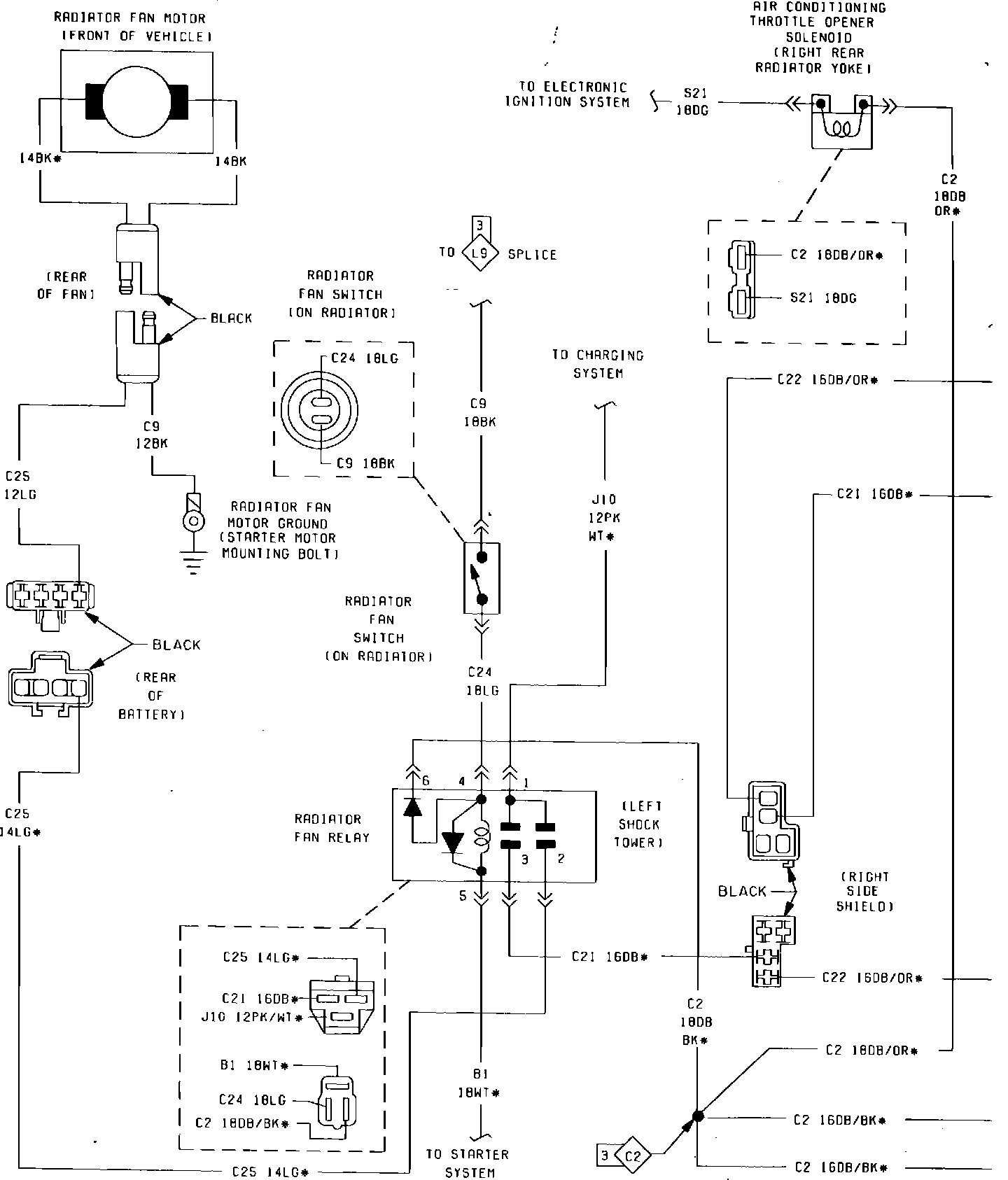

Air Conditioning & Heater Wiring Circuit With Feedback Carb (Part 2 of 2):
