Rear Lighting

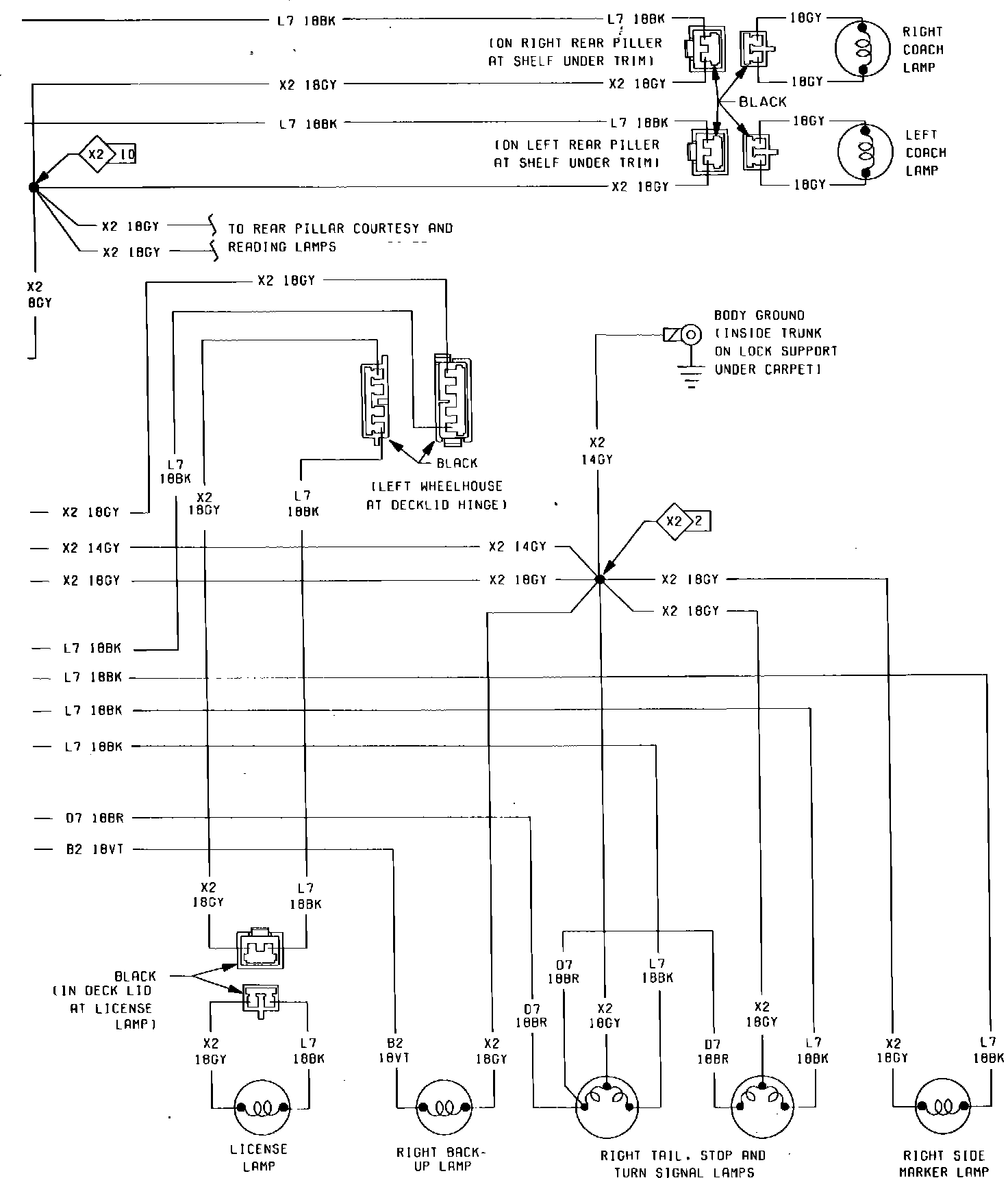

Fig. 81 Rear Lighting Wiring Circuit (Part 1 of 2). 1985 New Yorker:

Fig. 81 Rear Lighting Wiring Circuit (Part 2 of 2). 1985 New Yorker:
