Rear Lighting

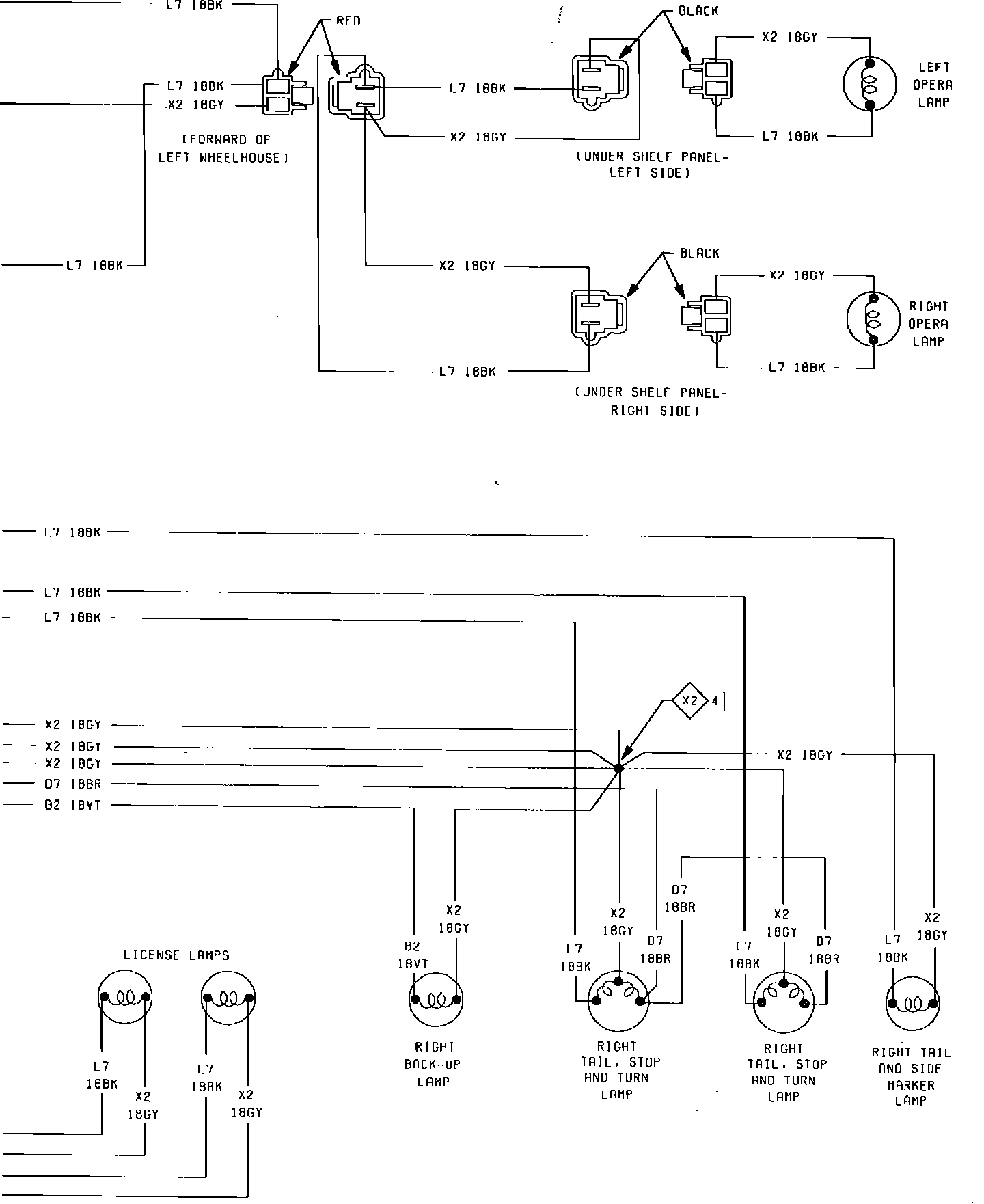

Fig. 39 Rear Lighting Wiring Circuit (Part 1 of 2). Fifth Avenue:

Fig. 39 Rear Lighting Wiring Circuit (Part 2 of 2). Fifth Avenue:
