Fifth Avenue V8-318 5.2L VIN R 4-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Key Cylinder Lamp
Key Cylinder Lamp

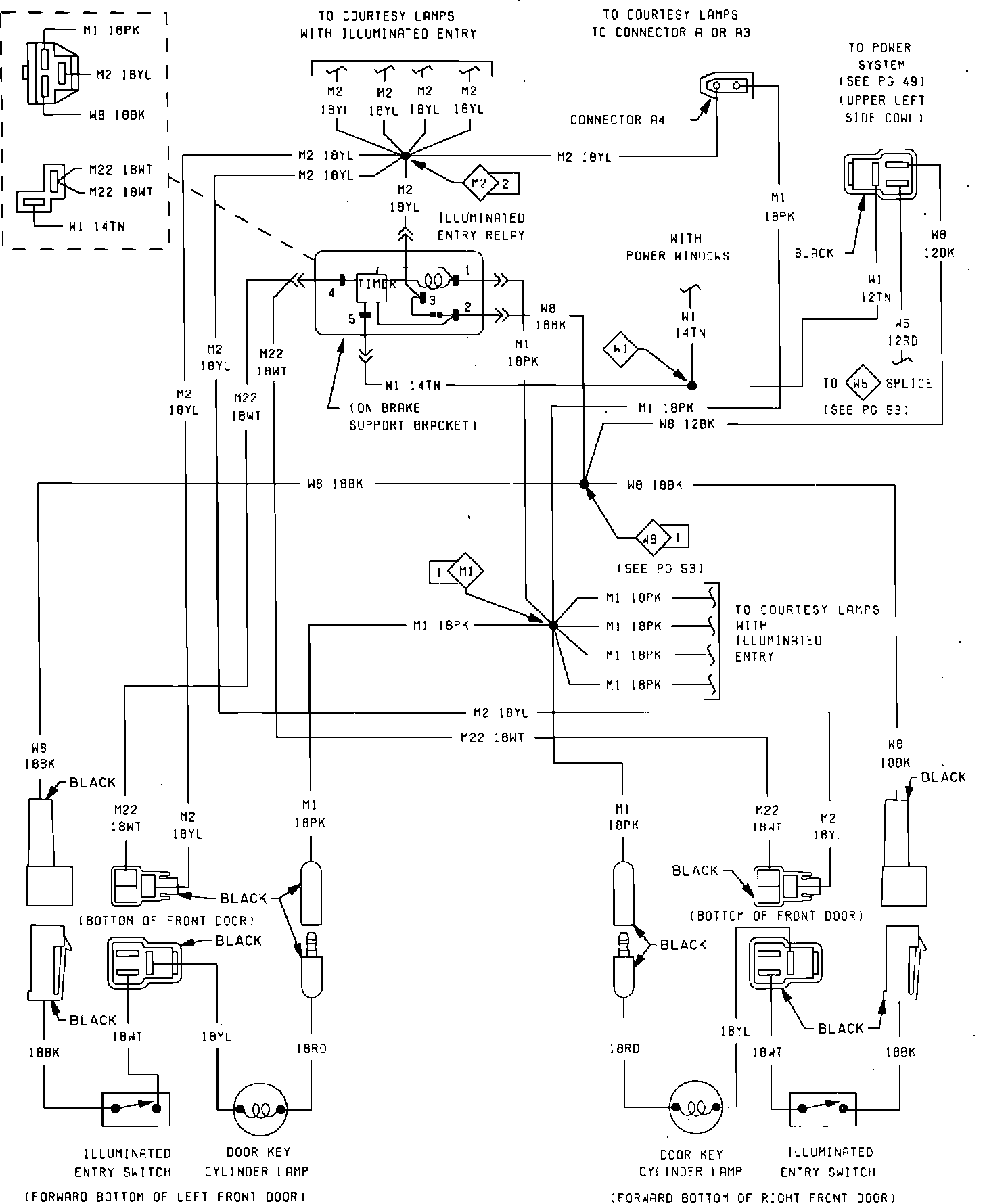

Fig. 27 Illuminated Entry System Wiring Circuit:
