Part 1 of 2

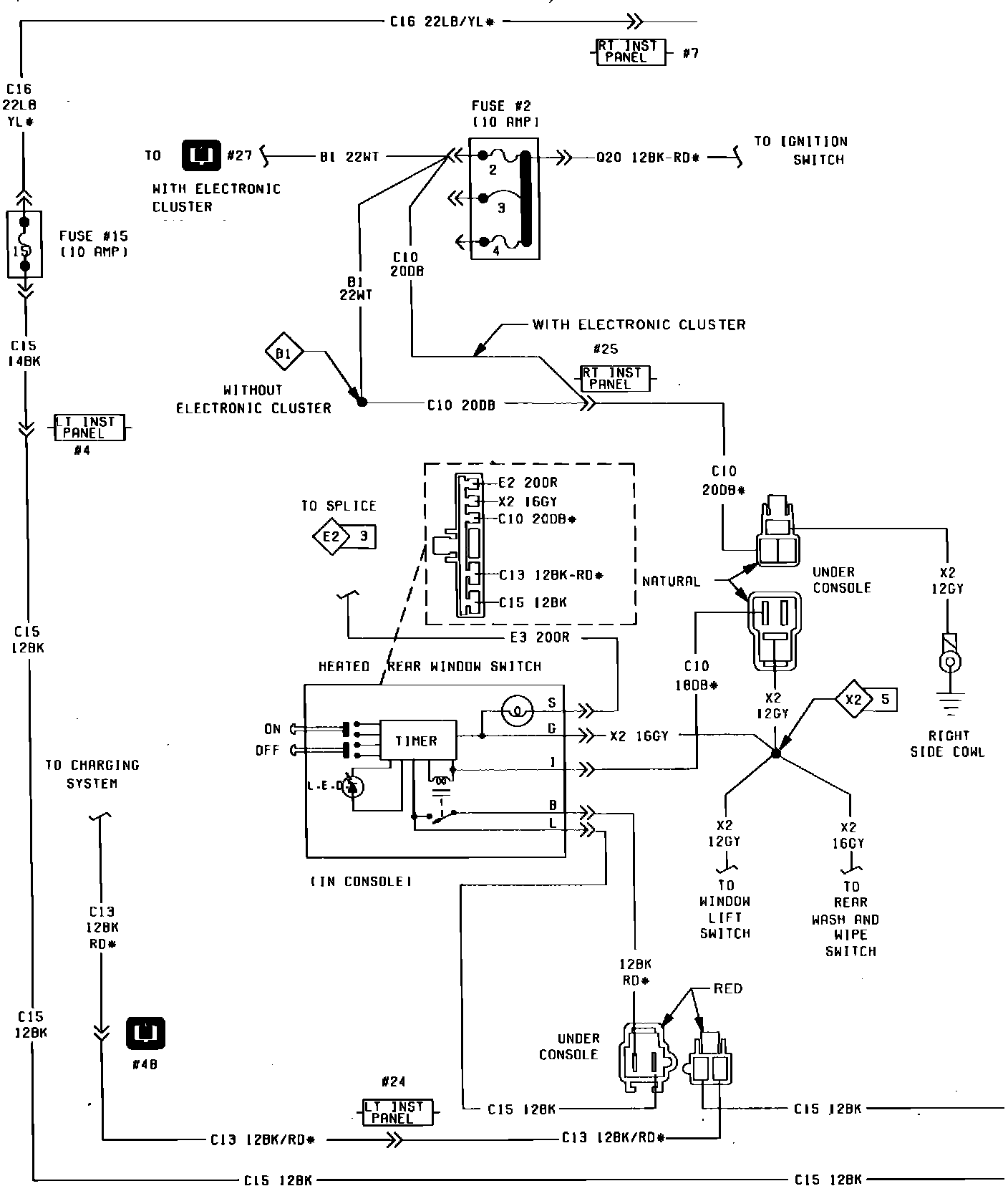

Fig. 40 Heated Mirrors & Rear Window Wiring Circuit (Part 1 of 2):

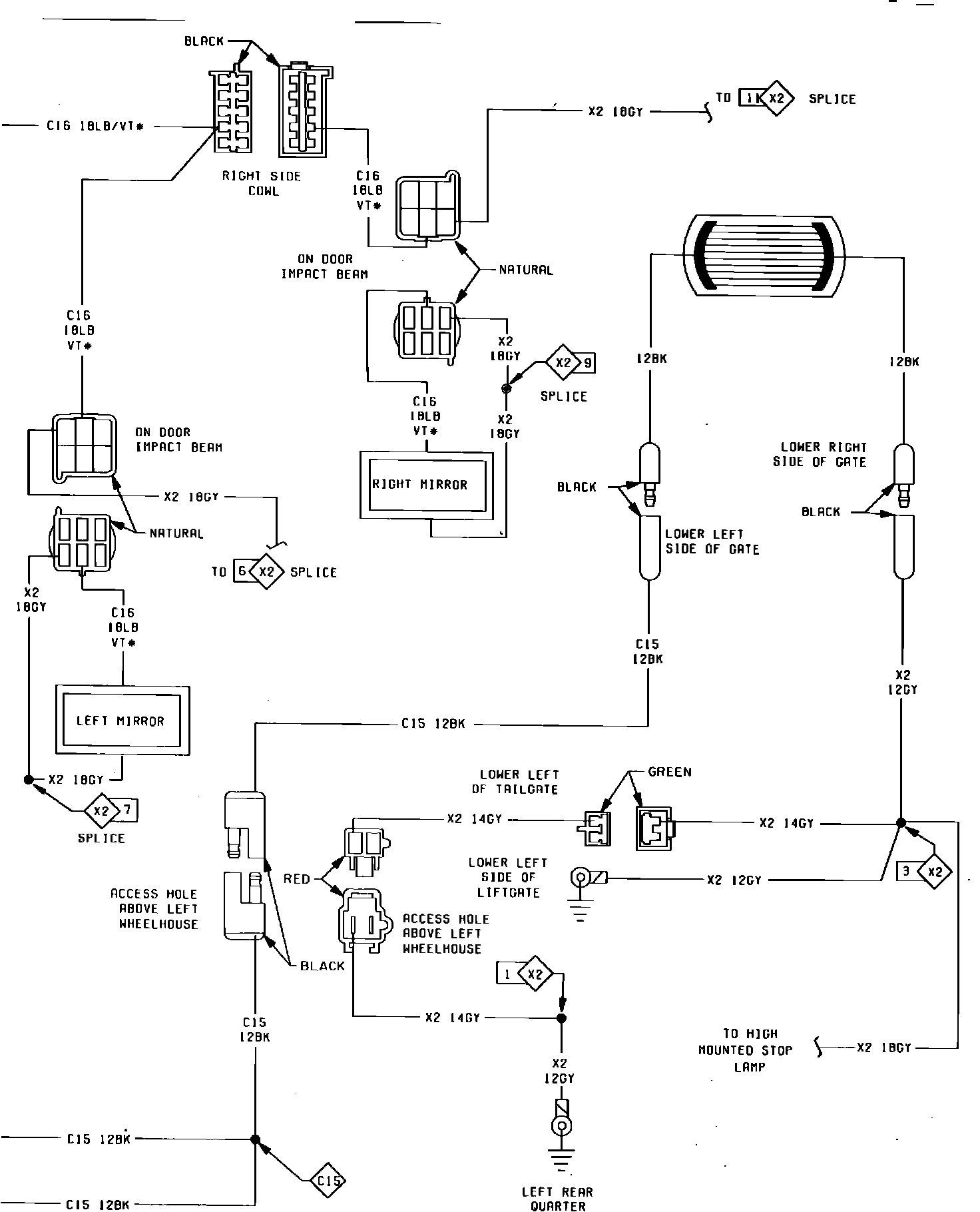

Fig. 40 Heated Mirrors & Rear Window Wiring Circuit (Part 2 of 2):
