Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
1986
>>
Laser L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
Cooling System

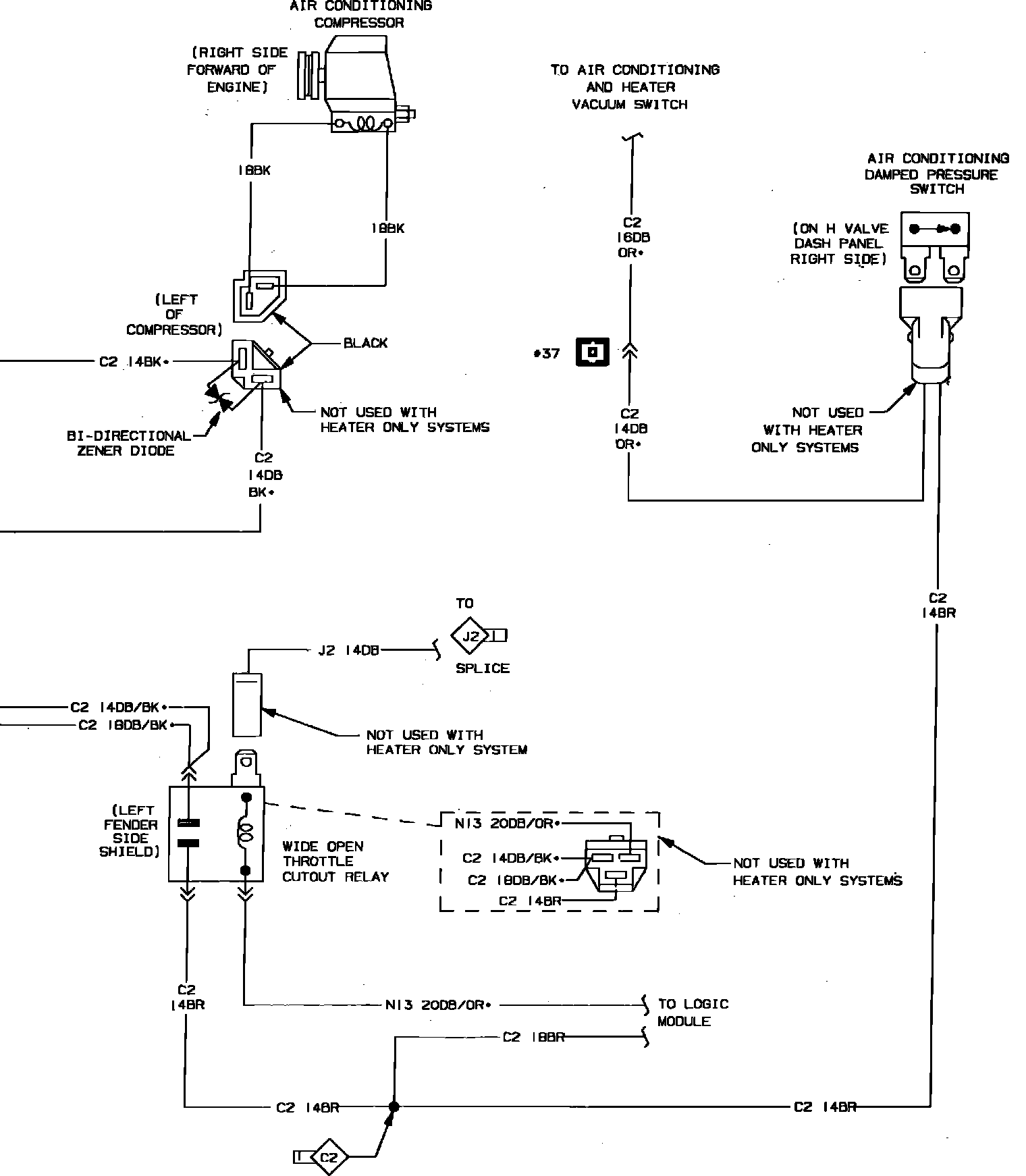

Air Conditioning and Heater System Part 1 Of 2:
Air Conditioning and Heater System Part 2 Of 2:
