Front End Lighting

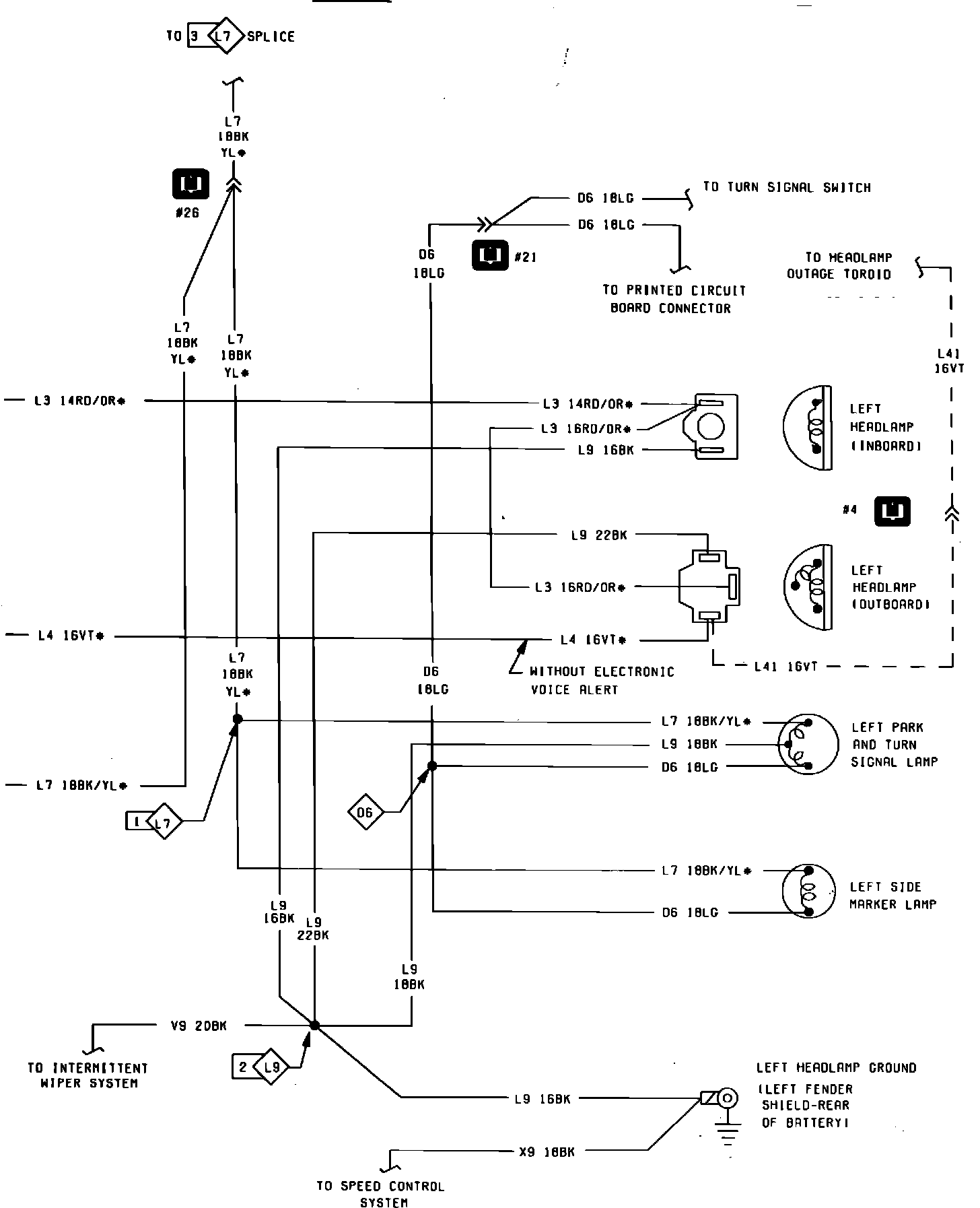

Fig. 34 Front End Lighting Wiring (Part 1 of 2):

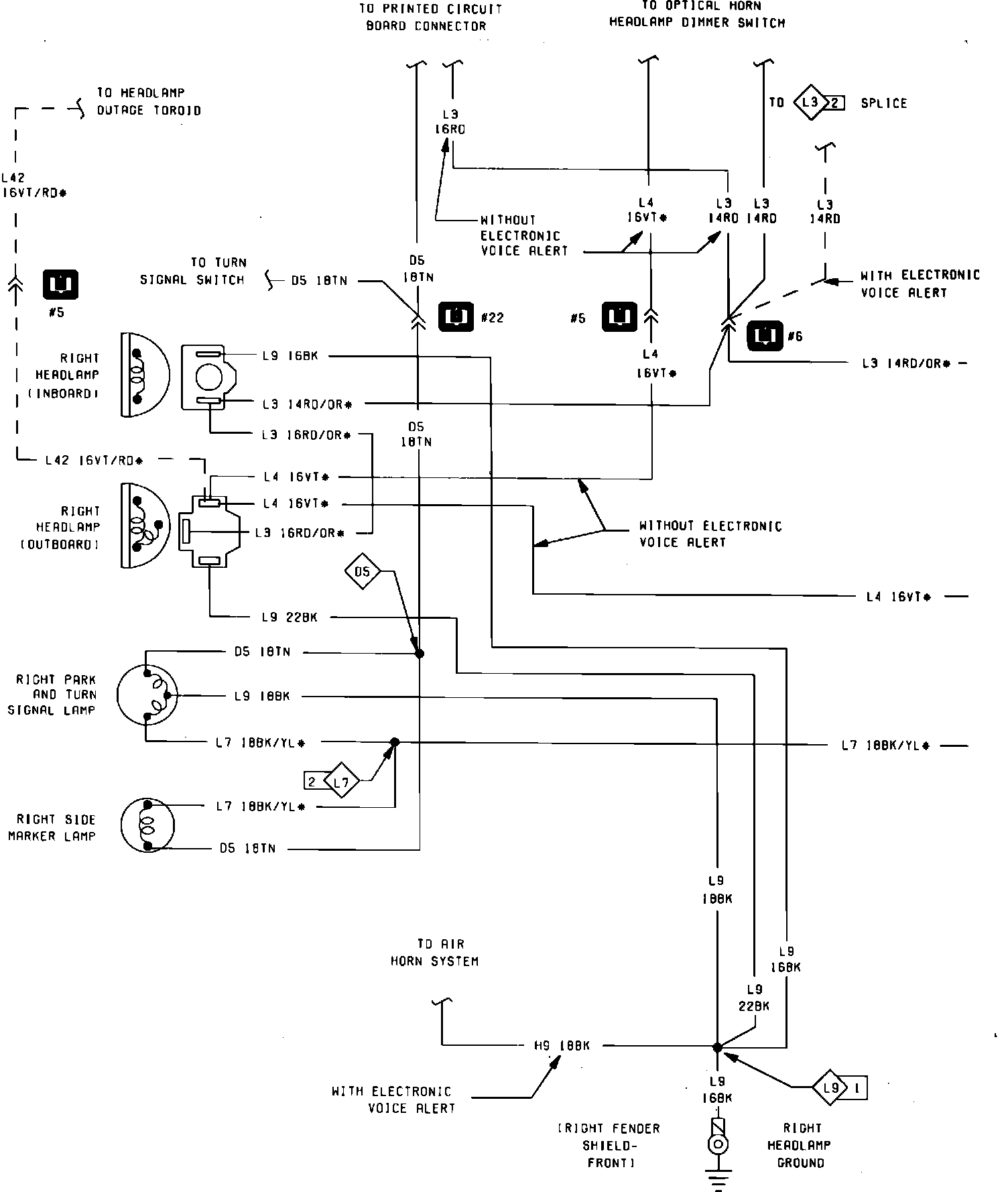

Fig. 34 Front End Lighting Wiring (Part 2 of 2):
