Computers and Control Systems: Locations

Engine electrical & related components.:

Rear RH Side Of Engine

Applicable to: 1986 Laser & 1986-87 Daytona Exc. turbocharged engine

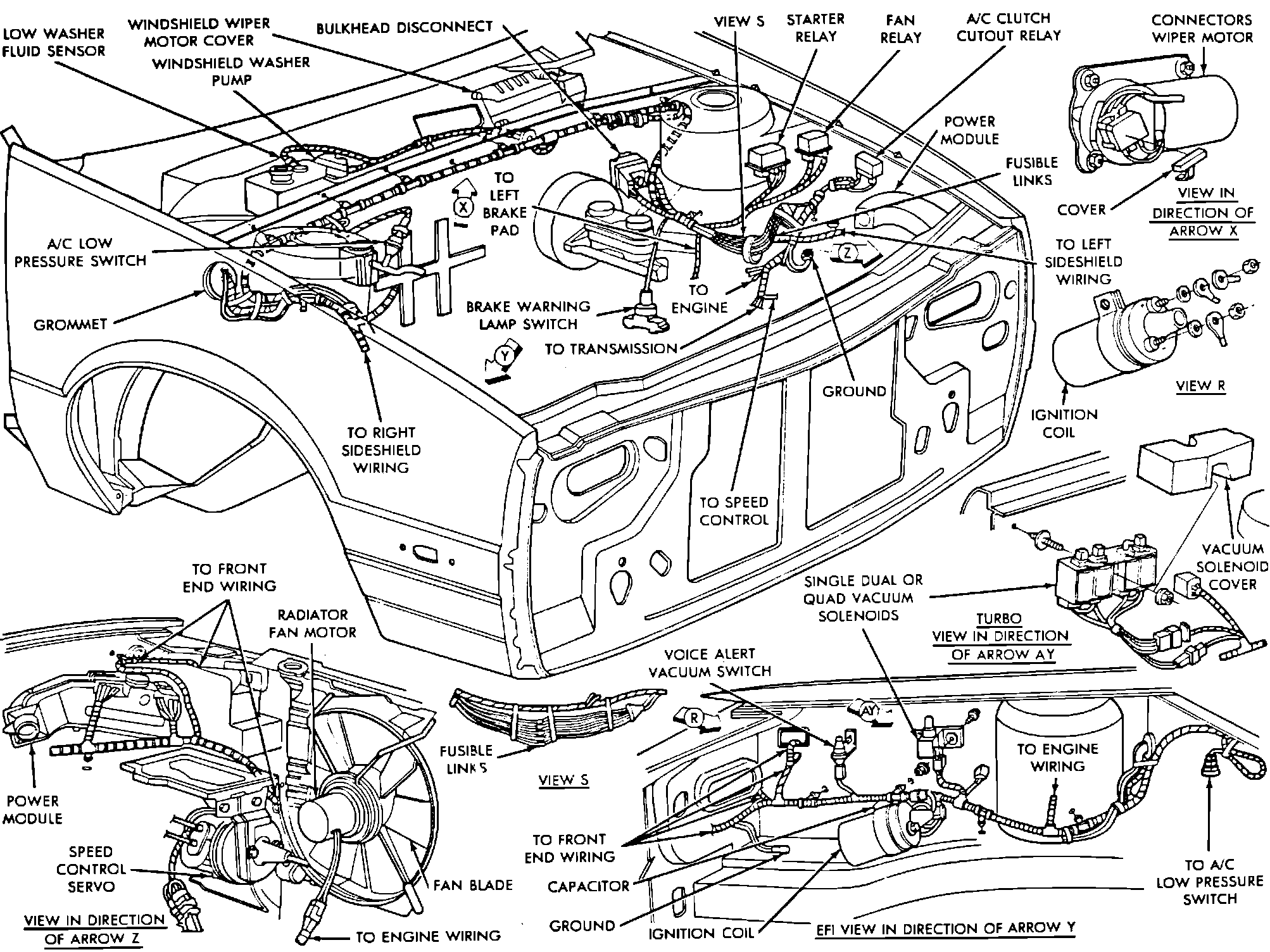

Front end & engine compartment components.:

On LH Fender, Near Strut Tower

Applicable to: 1986 Laser & 1986-87 Daytona
