Part 3

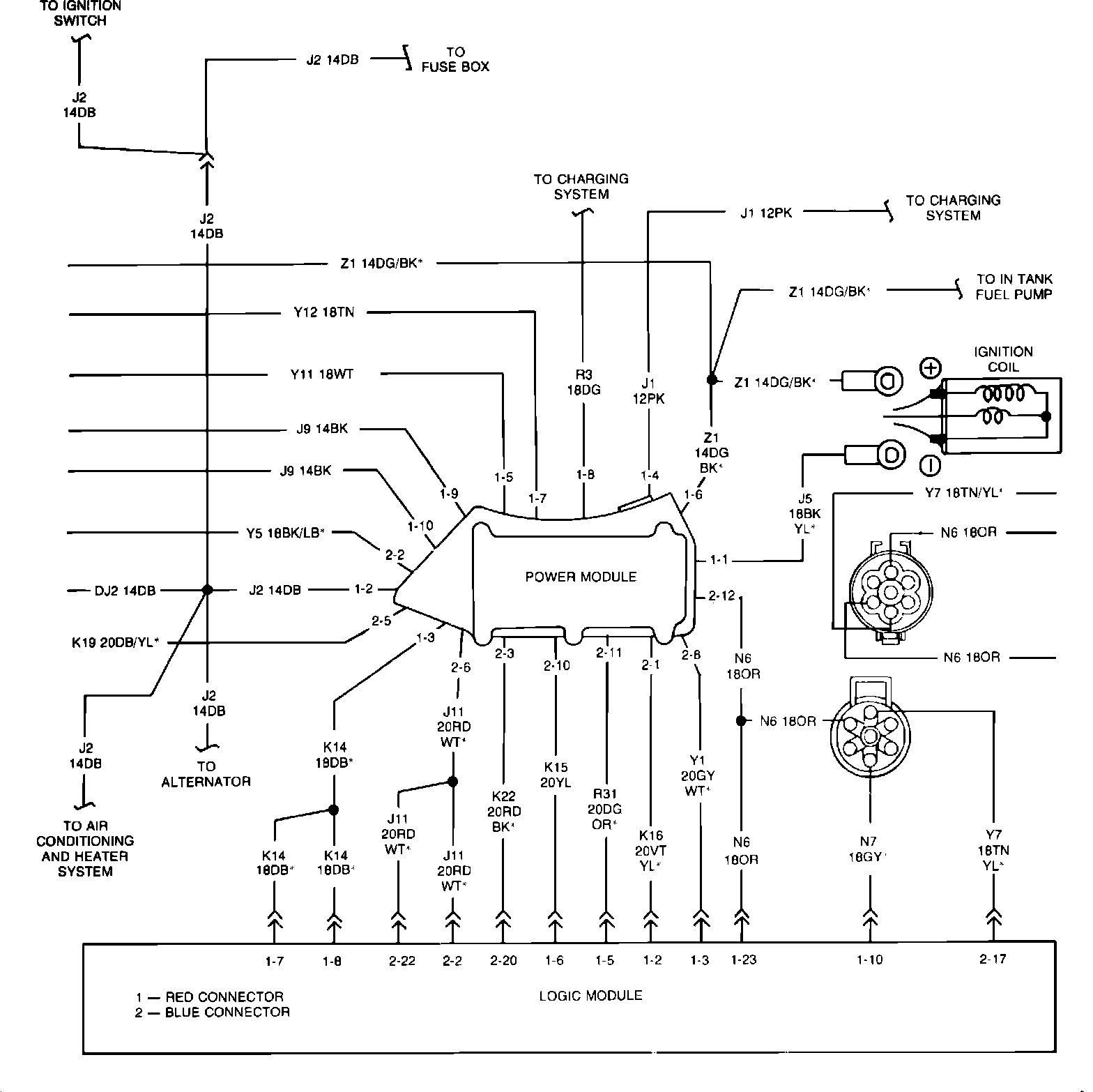

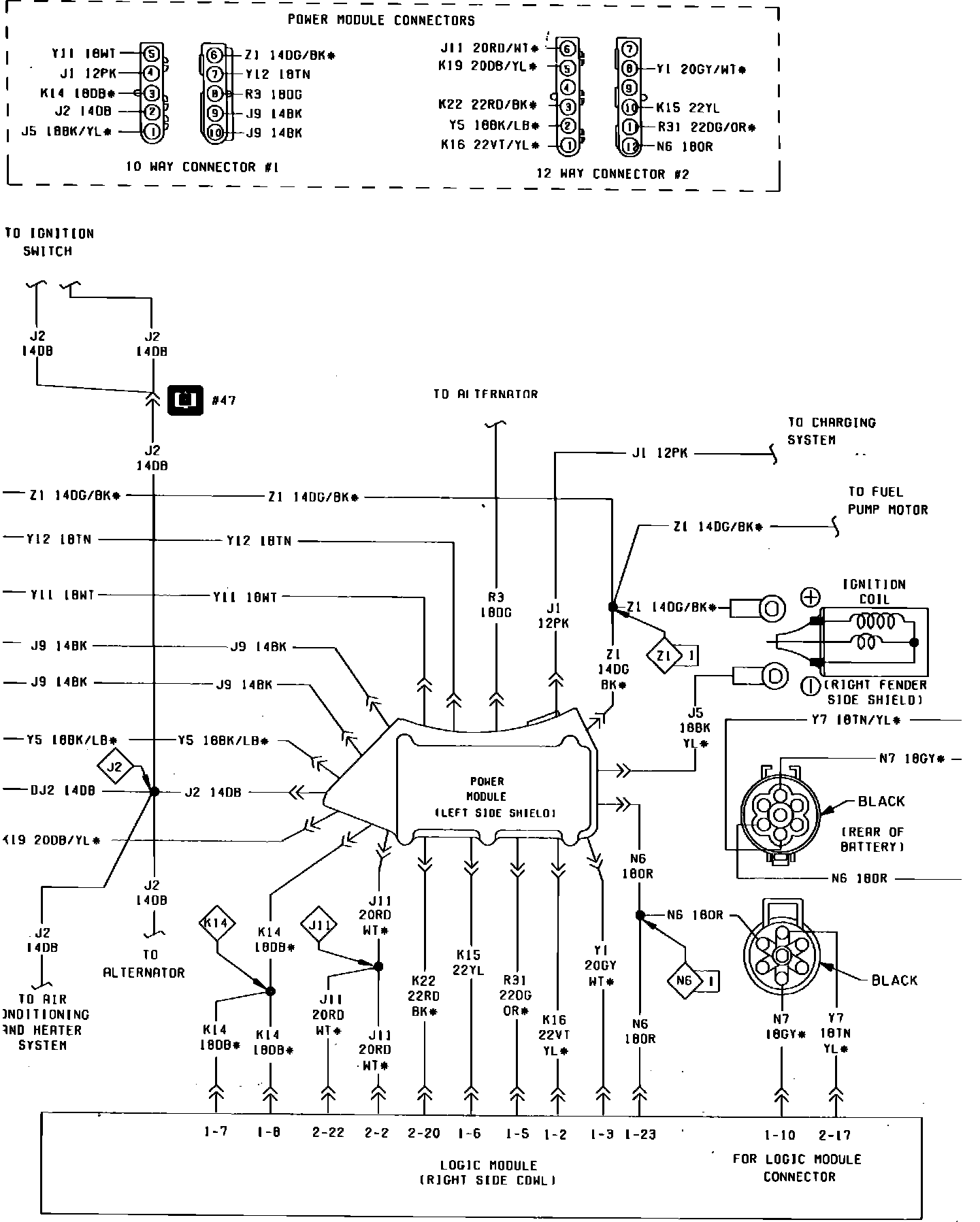

Fig. 31 Electronic Fuel Injection Ignition System Wiring Circuit (Part 3 of 5). W/Turbocharged Engine:



Part 3 of 5:
