Part 4

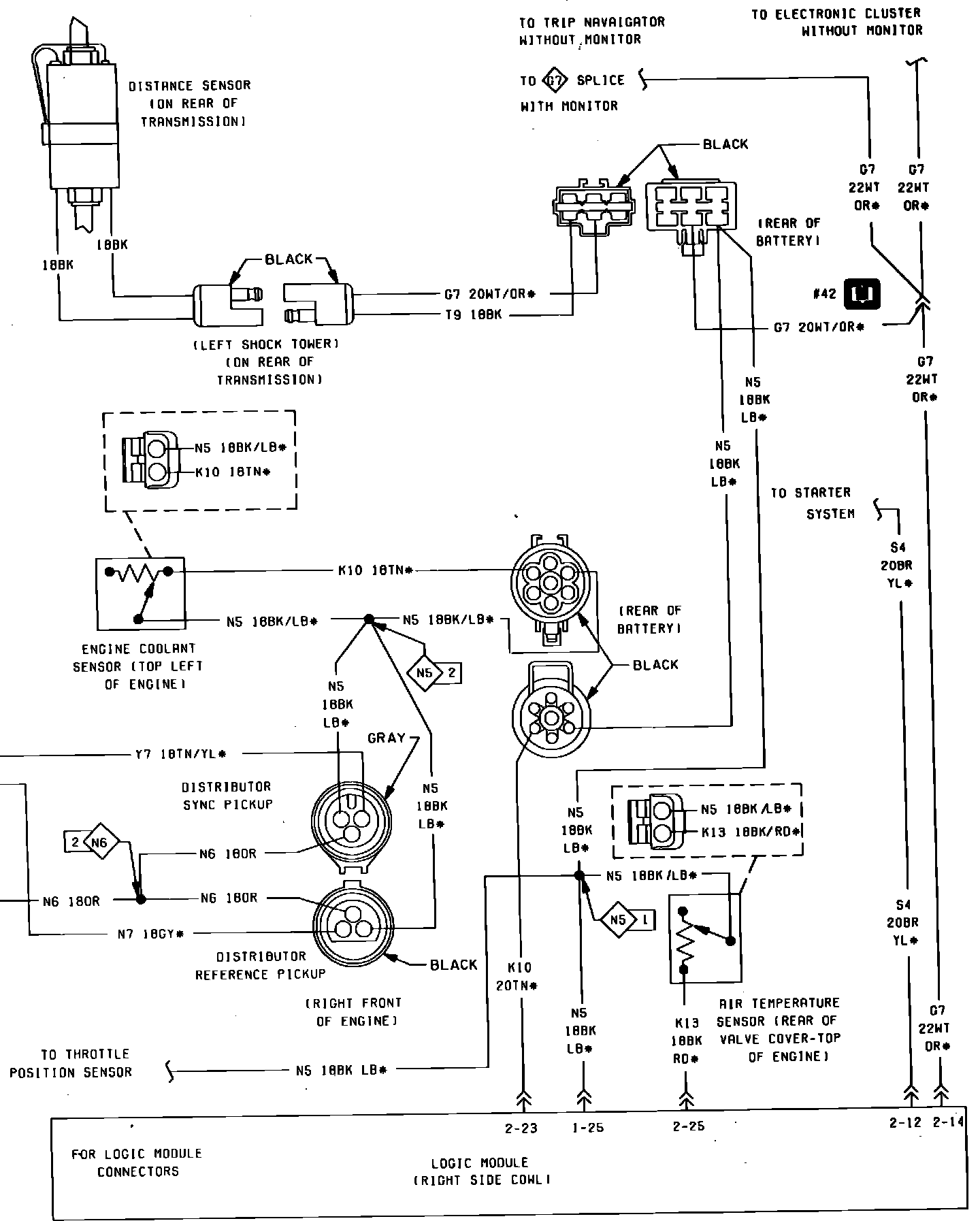

Fig. 31 Electronic Fuel Injection Ignition System Wiring Circuit (Part 4 of 5). W/Turbocharged Engine:



Part 4 of 5:
