Part 3

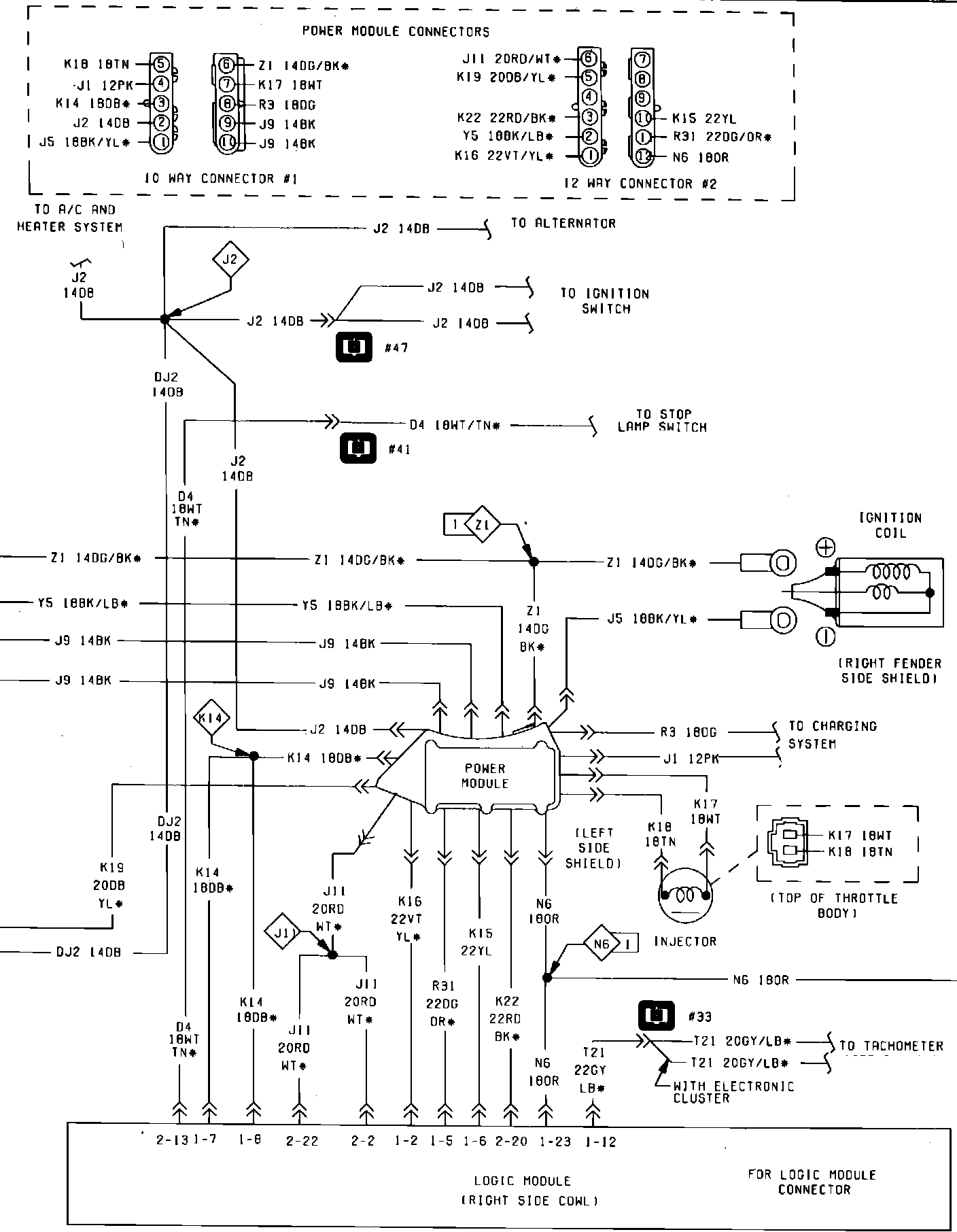

Electronic Fuel Injection Ignition System Wiring Circuit (Part 3 of 4). Less Turbocharged Engine:
