Electrical Diagrams

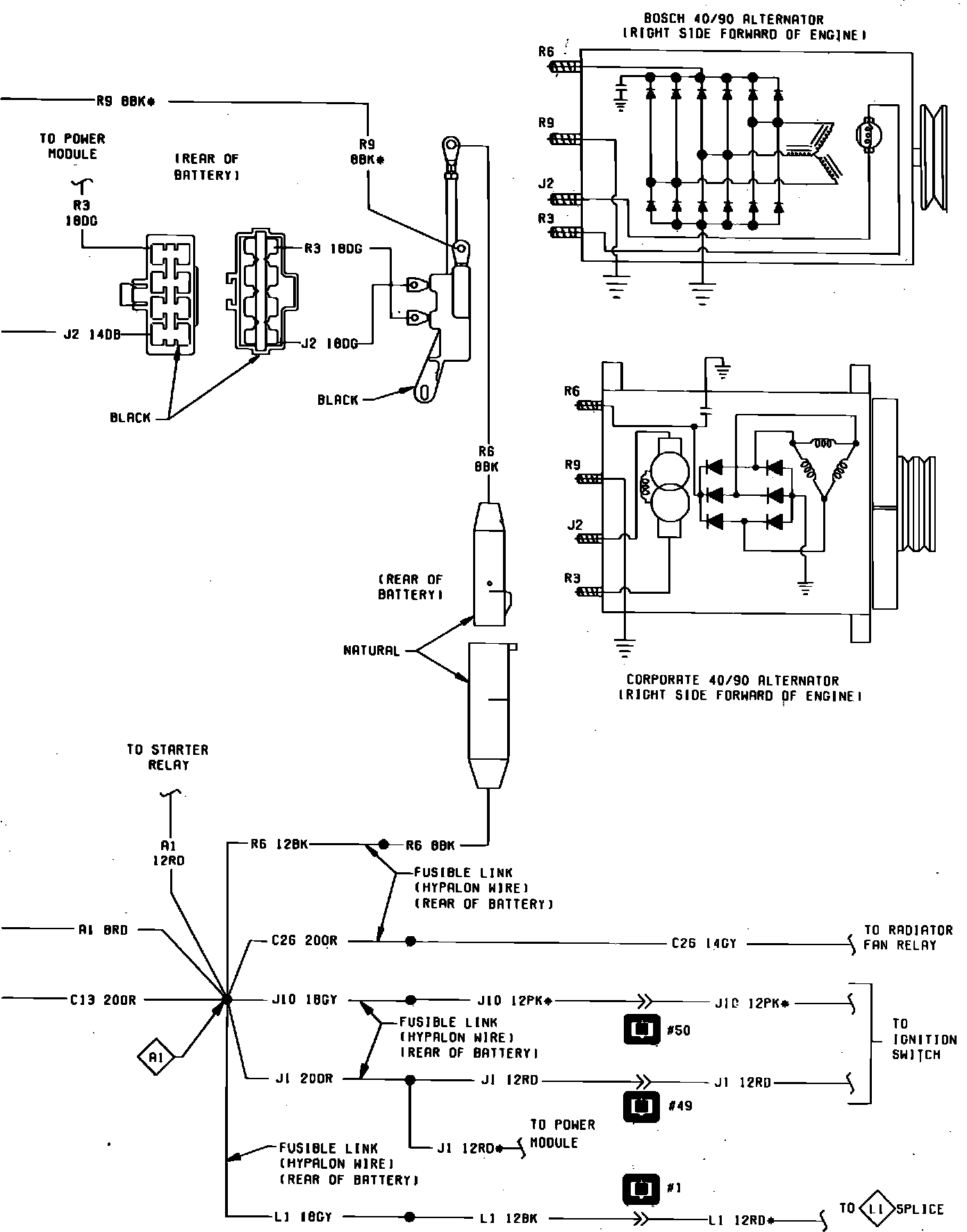

Fig. 21 Charging System Wiring Circuit (Part 1 of 2):

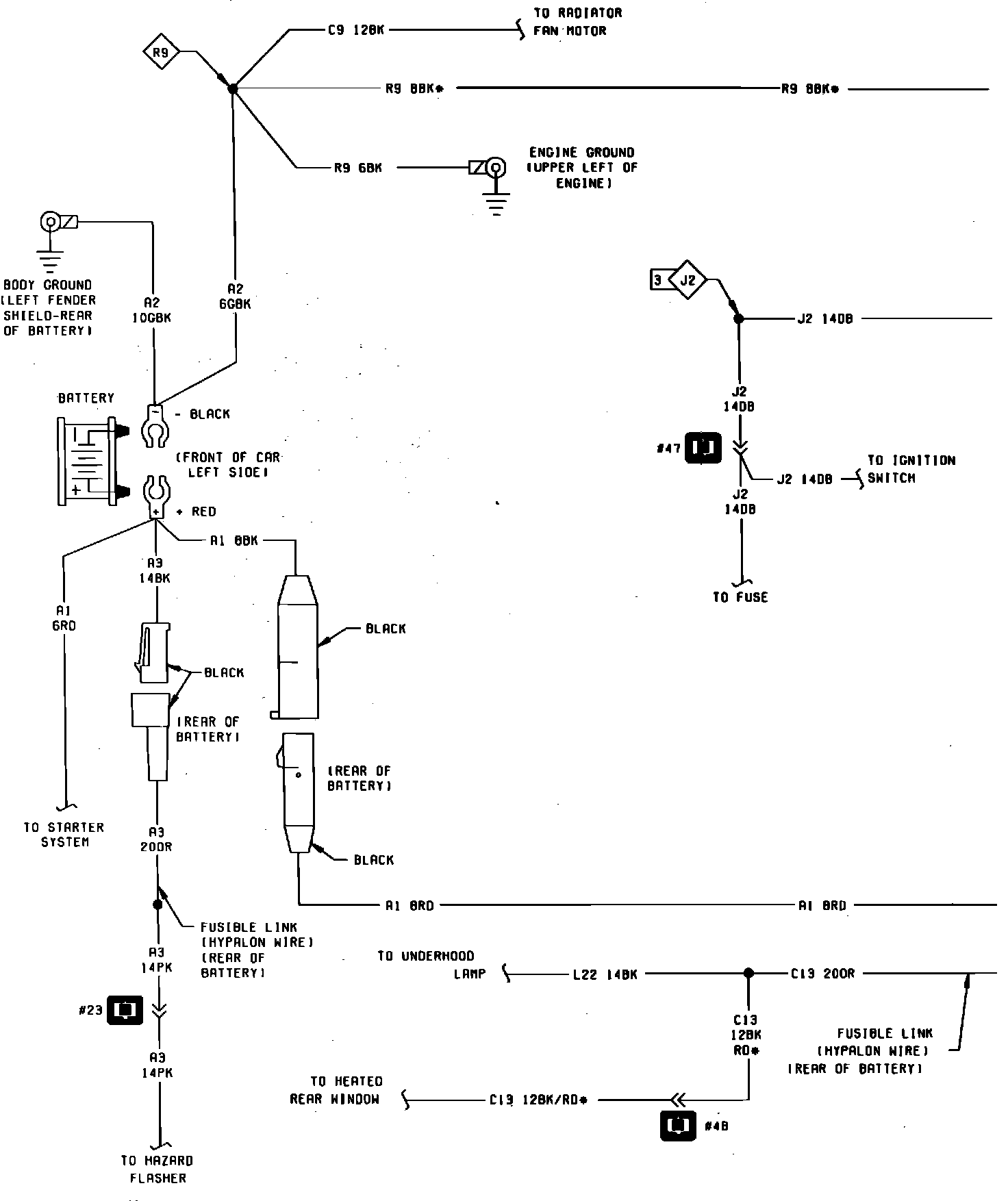

Fig. 21 Charging System Wiring Circuit (Part 2 of 2):

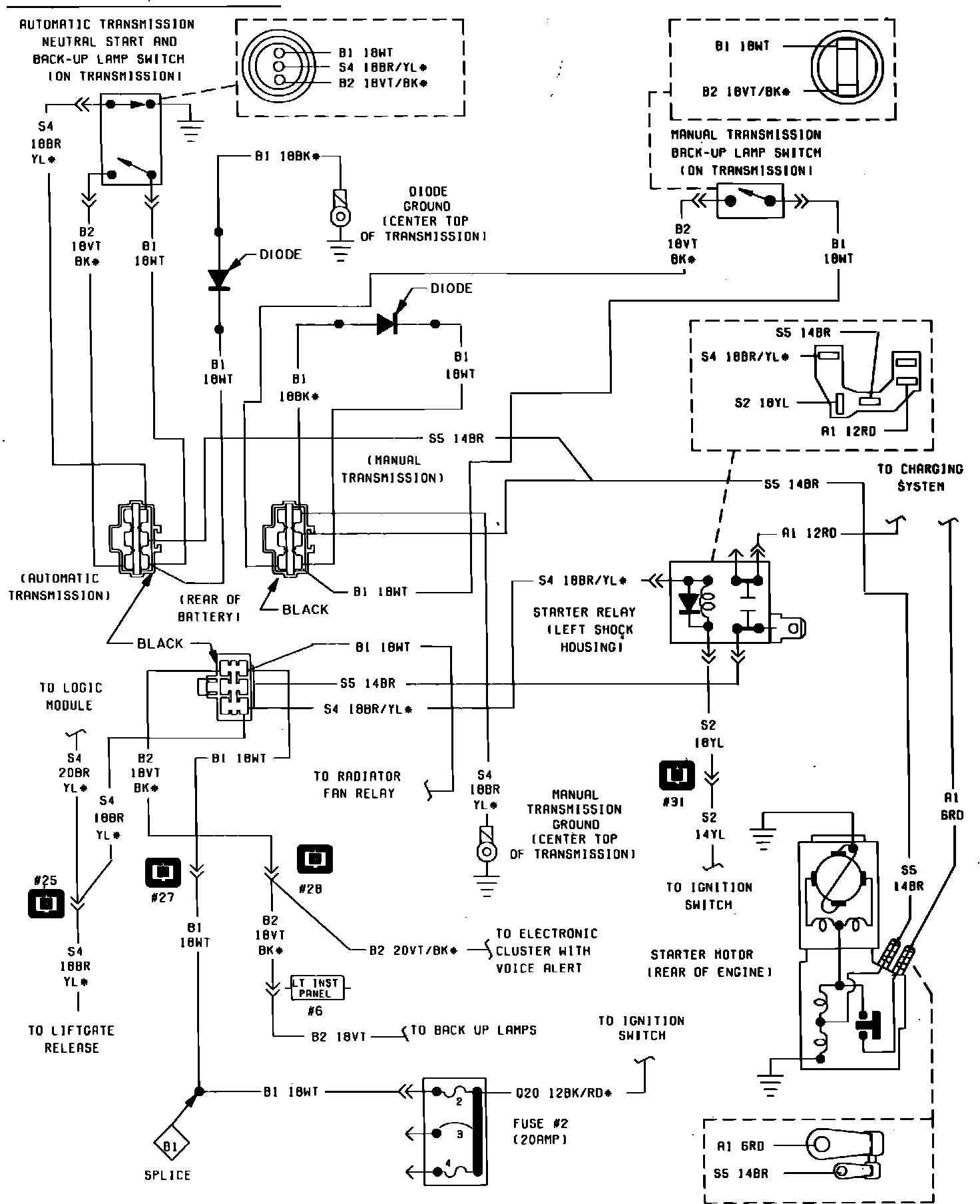

Fig. 72 Starter System Wiring Circuit:
