Headlamp Dimmer Switch

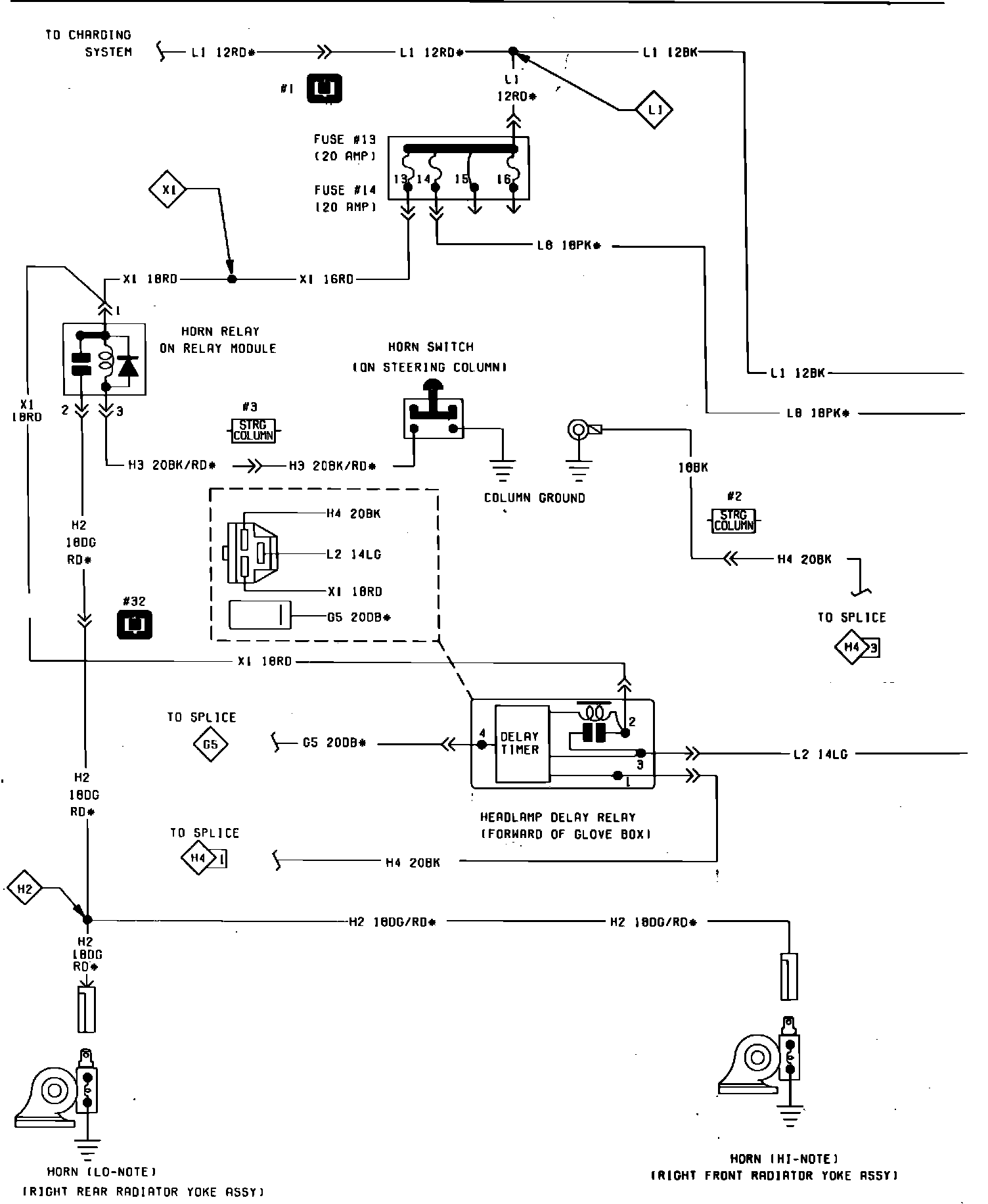

Fig. 25 Headlamp Switch & Horn Wiring Circuit (Part 1 of 2). Horn:

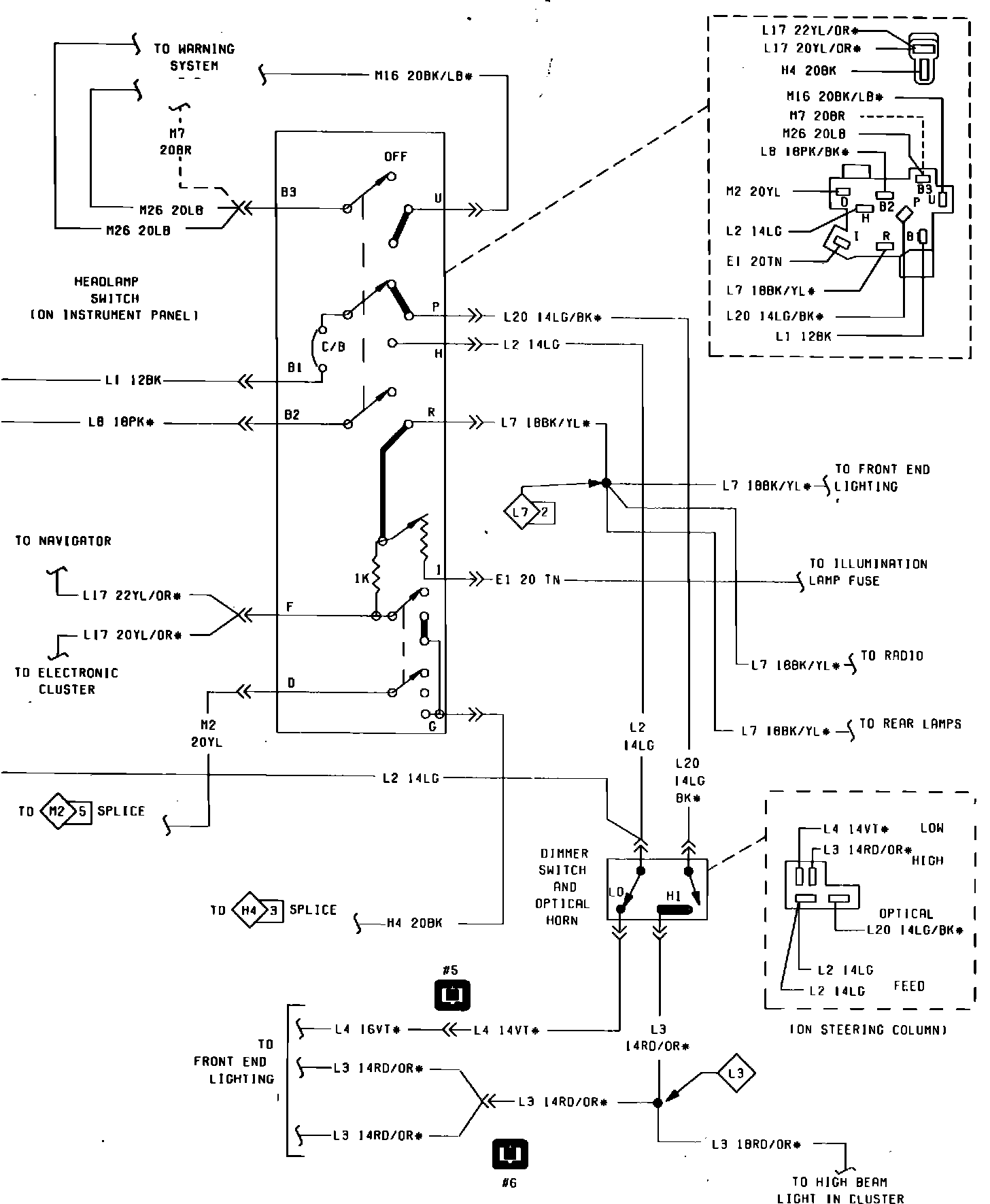

Fig. 25 Headlamp Switch & Horn Wiring Circuit (Part 2 of 2). Headlamp Switch:
