Vanity Lamp

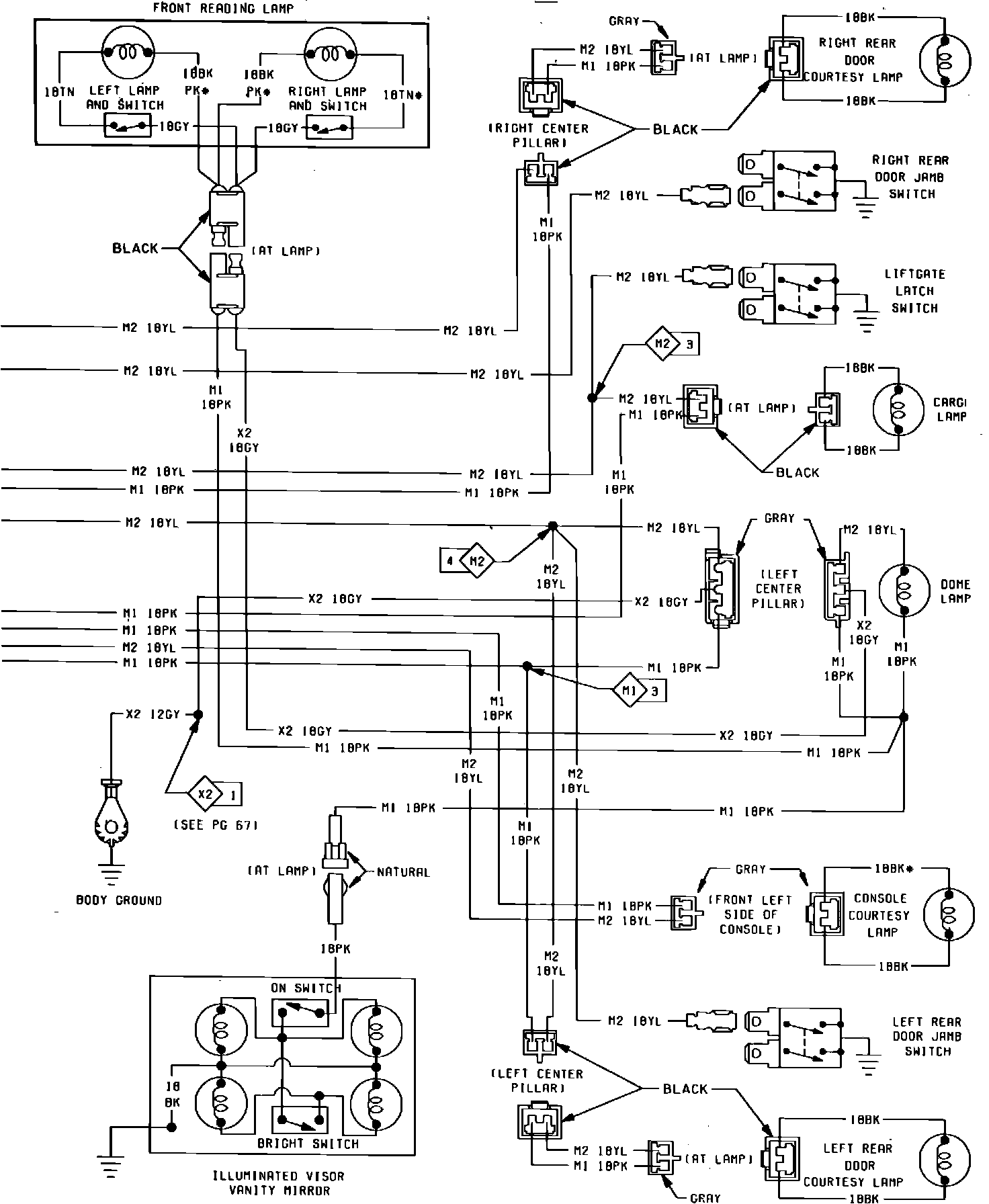

Fig. 20 Dome, Door Courtesy & Vanity Lamps System Wiring Circuit (Part 1 of 2):



Fig. 20 Dome, Door Courtesy & Vanity Lamps System Wiring Circuit (Part 2 of 2):
