System Diagram

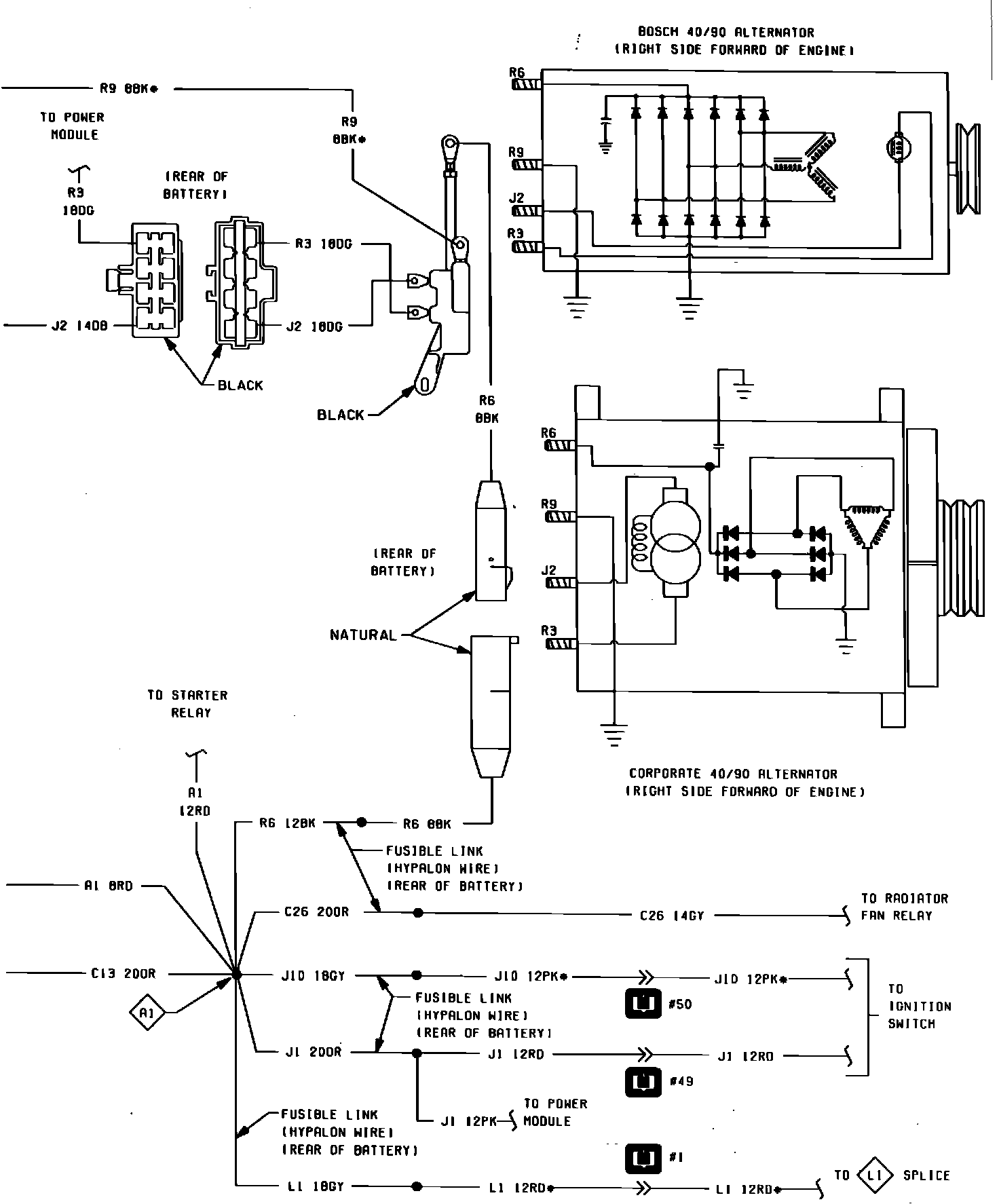

Fig. 18 Charging System Wiring Circuit (Part 1 of 2):



Fig. 18 Charging System Wiring Circuit (Part 2 of 2):

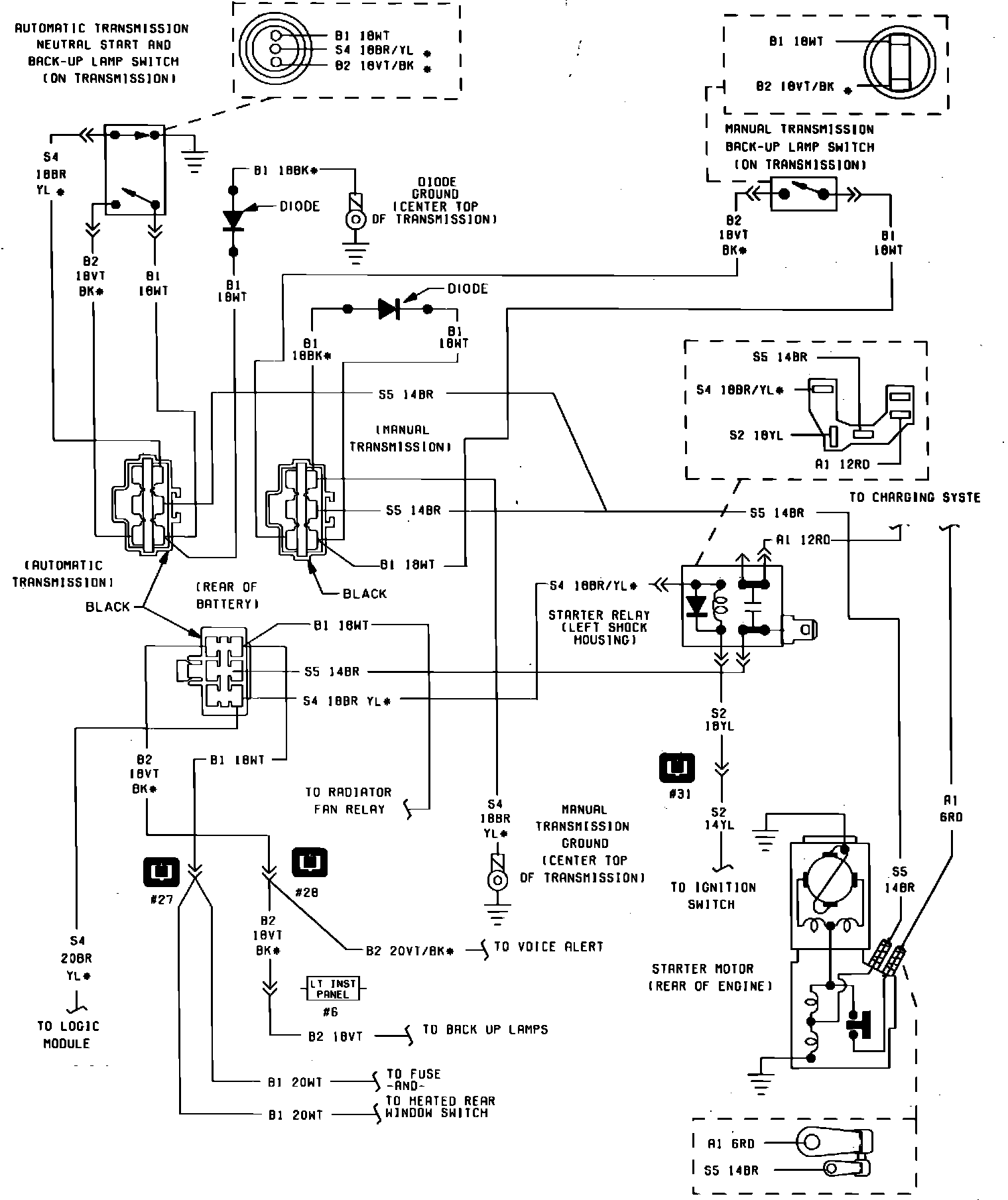

Fig. 36 Starter System Wiring Circuit:
