A/C & Heater (Engine Compartment)

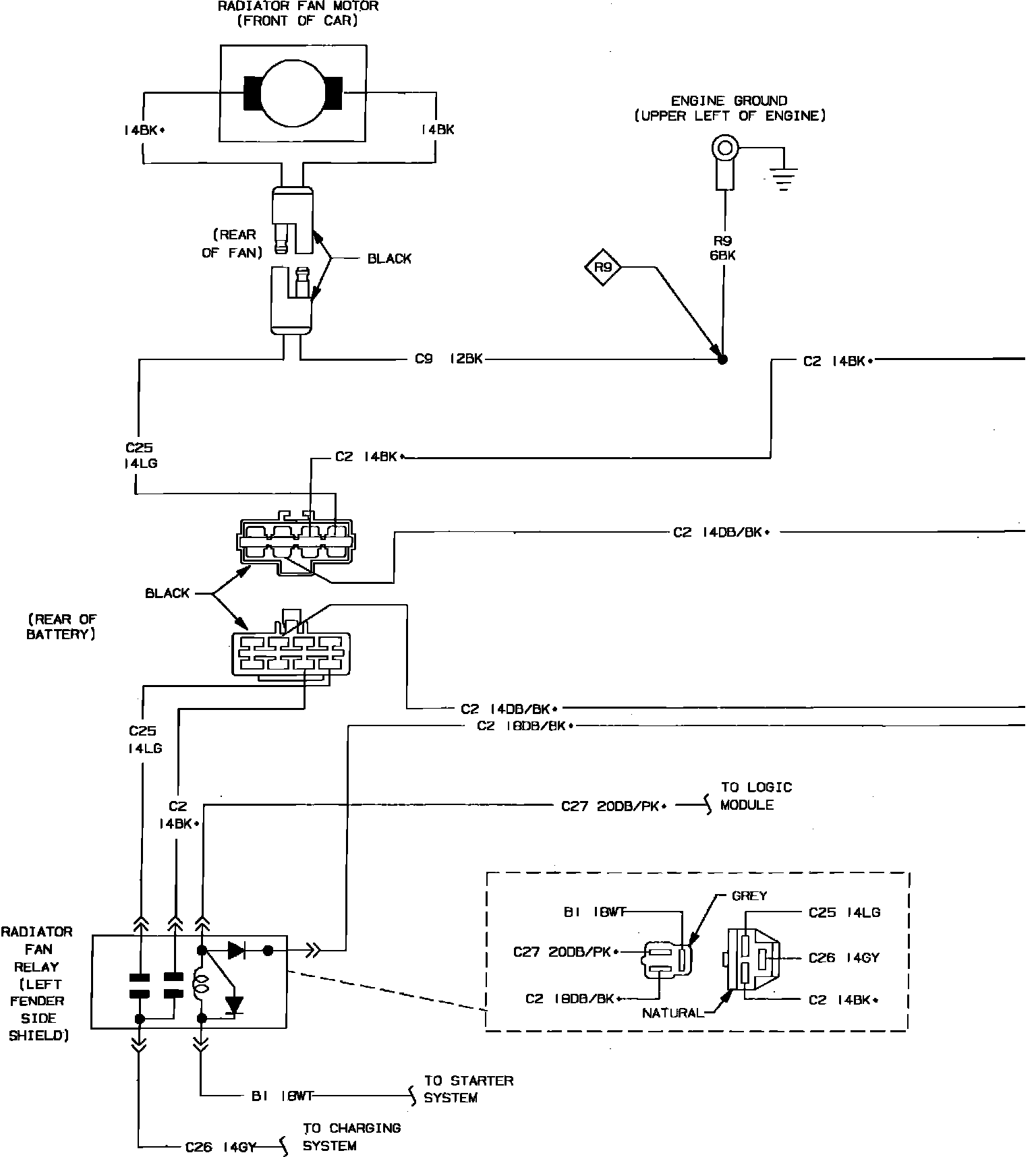

Fig. 22 Air Conditioning System Wiring Circuit (Part 1 of 2) Engine Compartment:

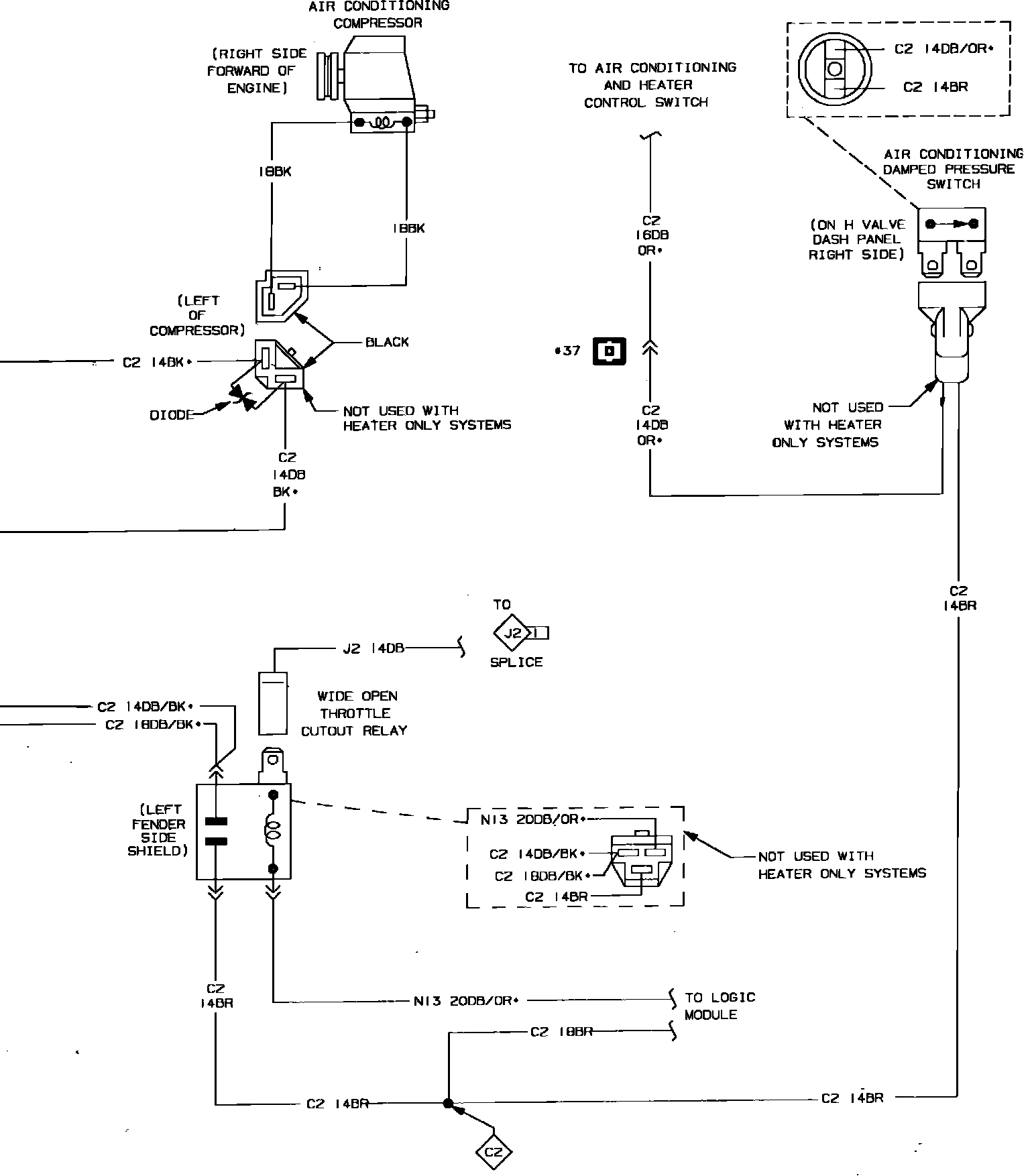

Fig. 22 Air Conditioning System Wiring Circuit (Part 2 of 2) Engine Compartment:
