Rear Lighting

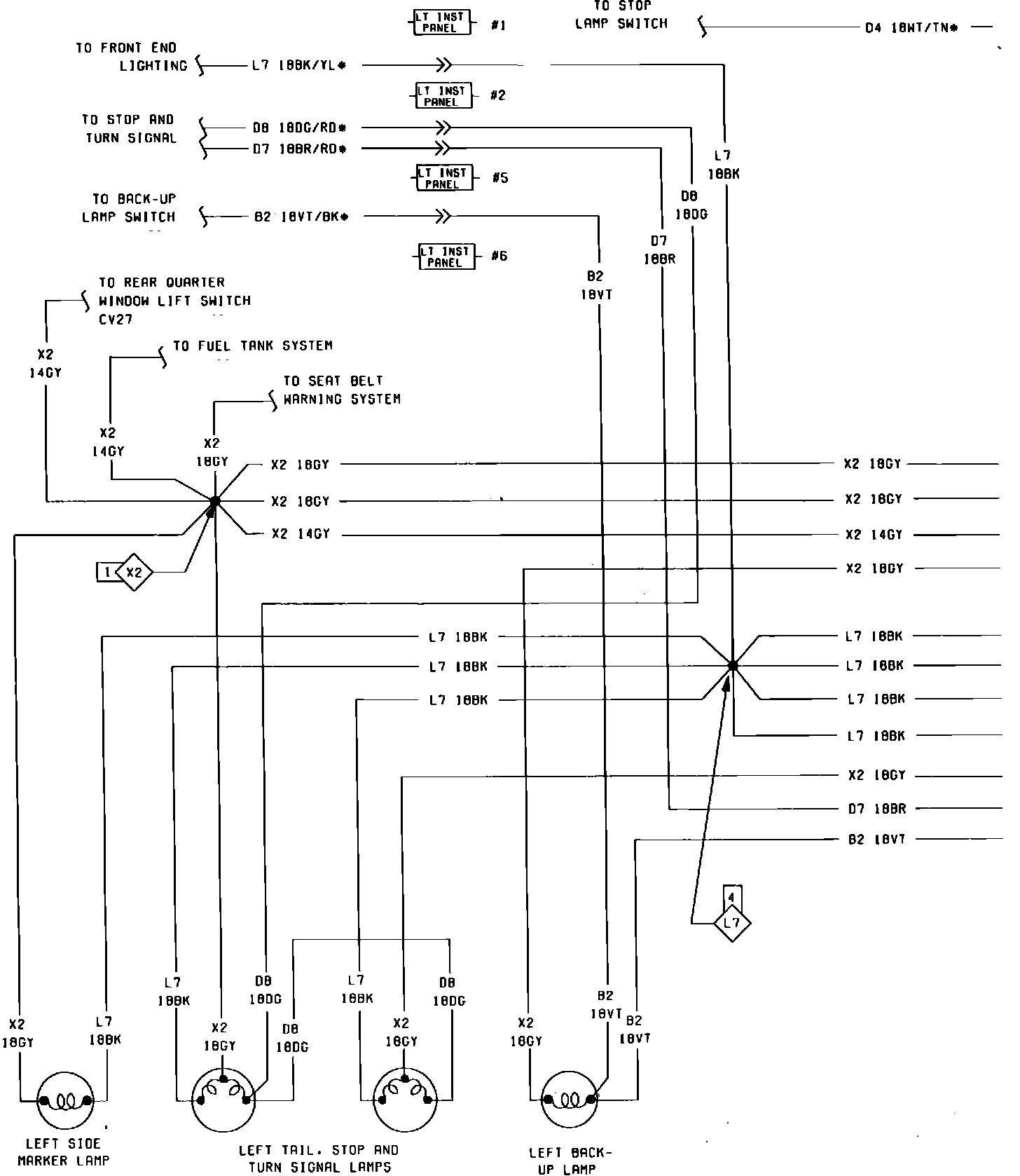

Fig. 67 Rear Lighting Wiring Circuit (Part 1 of 2). LeBaron & 2 Door 600:

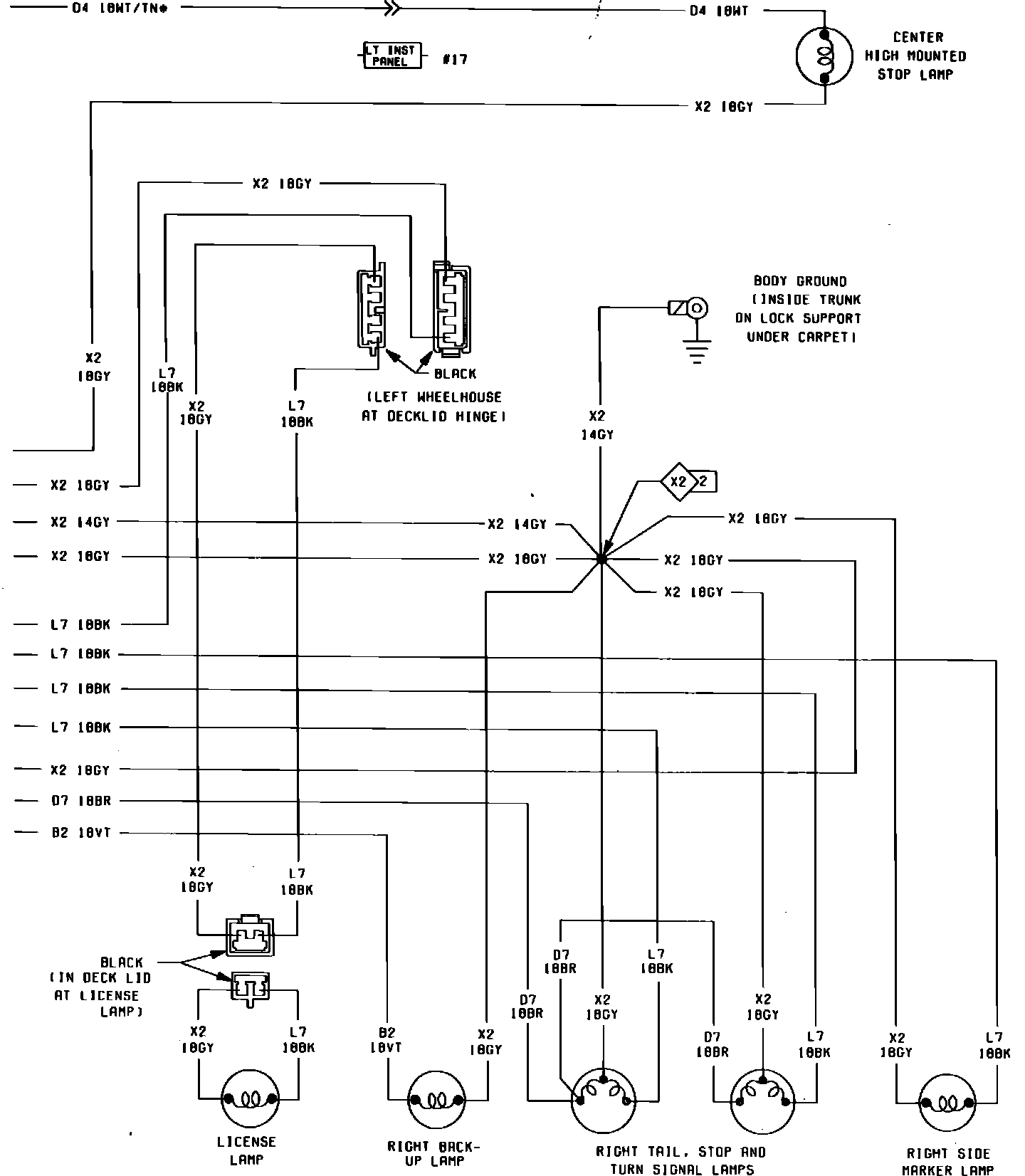

Fig. 67 Rear Lighting Wiring Circuit (Part 2 of 2). LeBaron & 2 Door 600:

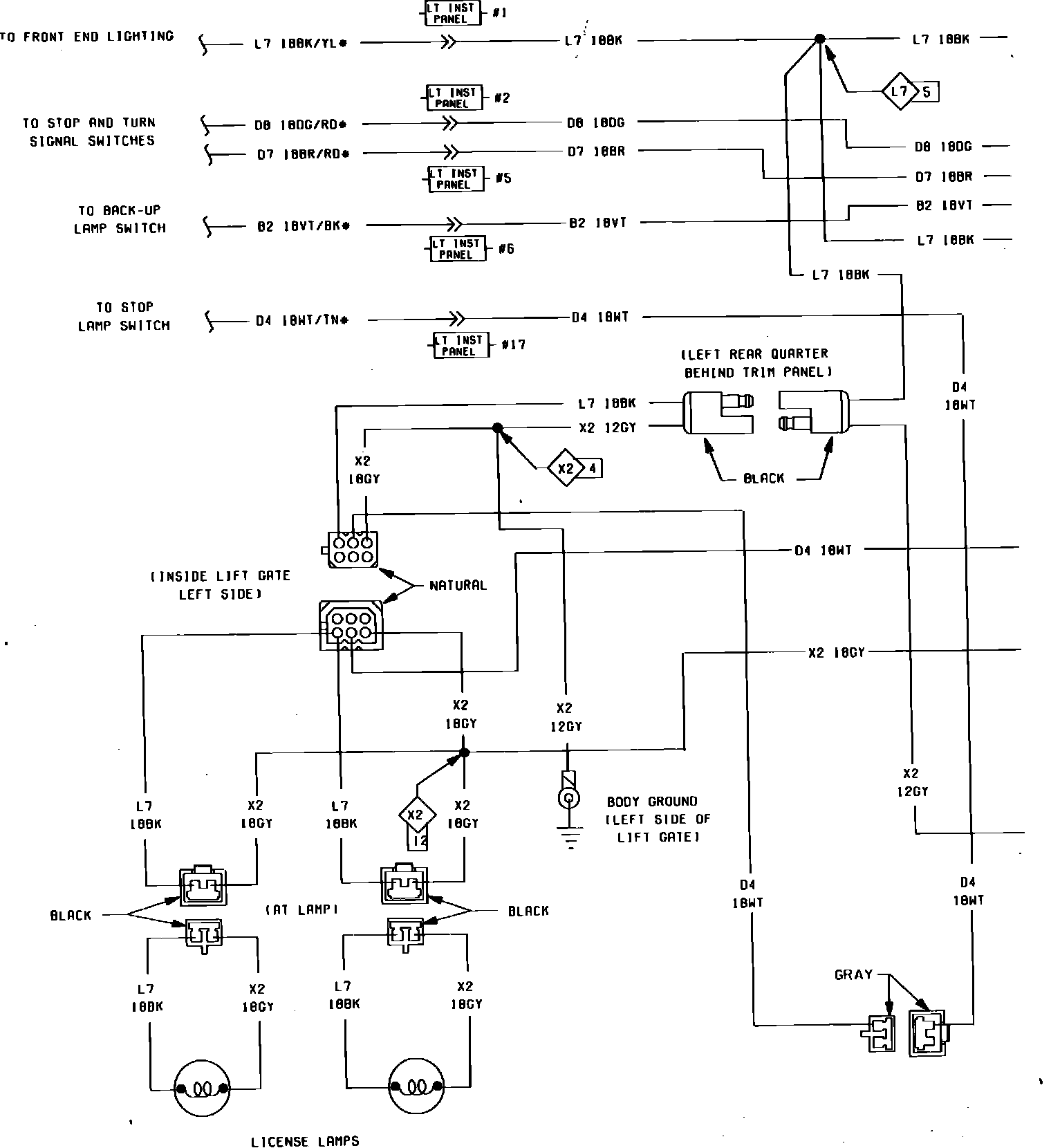

Fig. 69 Rear Lighting Wiring Circuit (Part 1 of 2). Wagon:

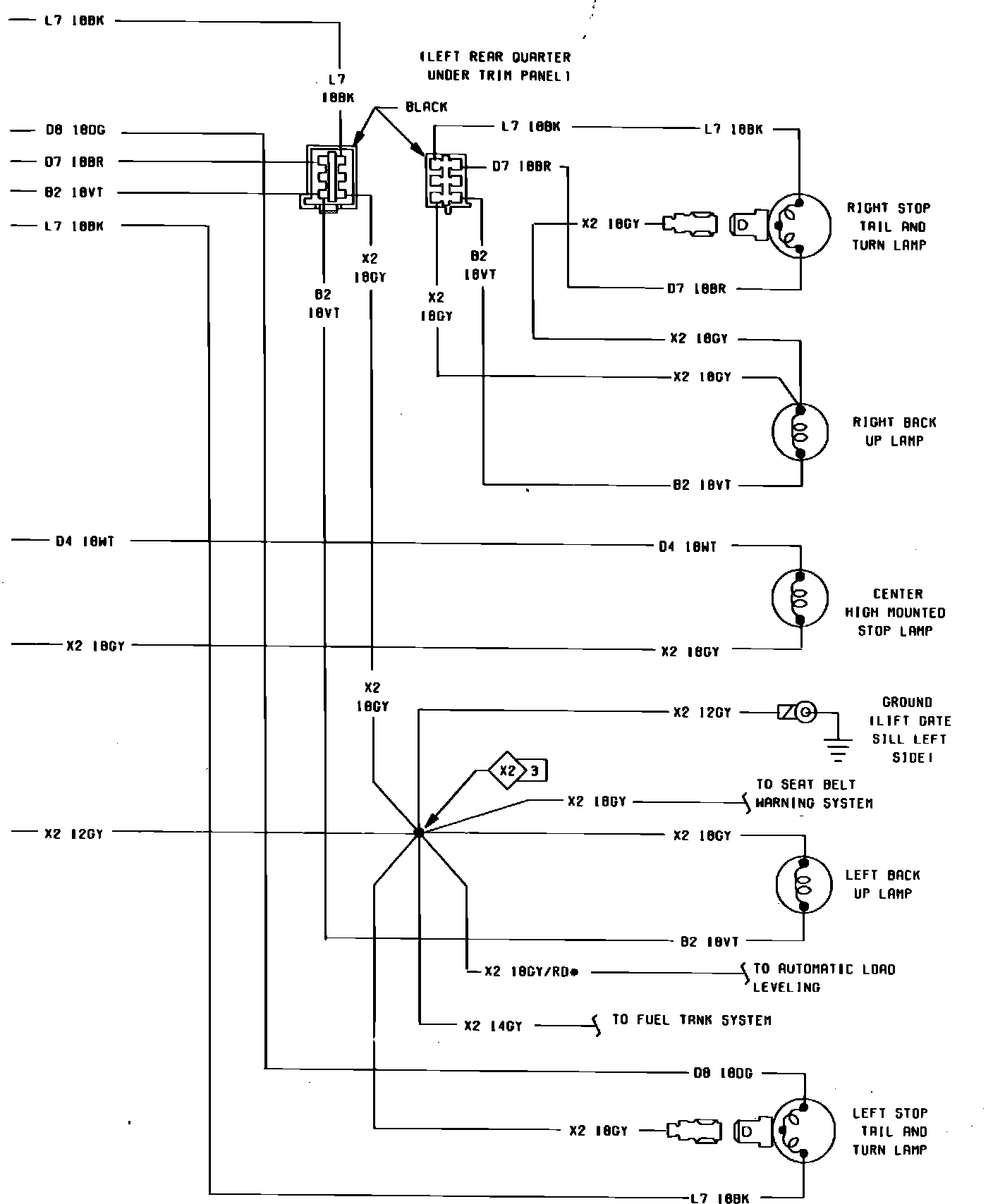

Fig. 69 Rear Lighting Wiring Circuit (Part 2 of 2). Wagon:
