Brake Switch (Cruise Control)

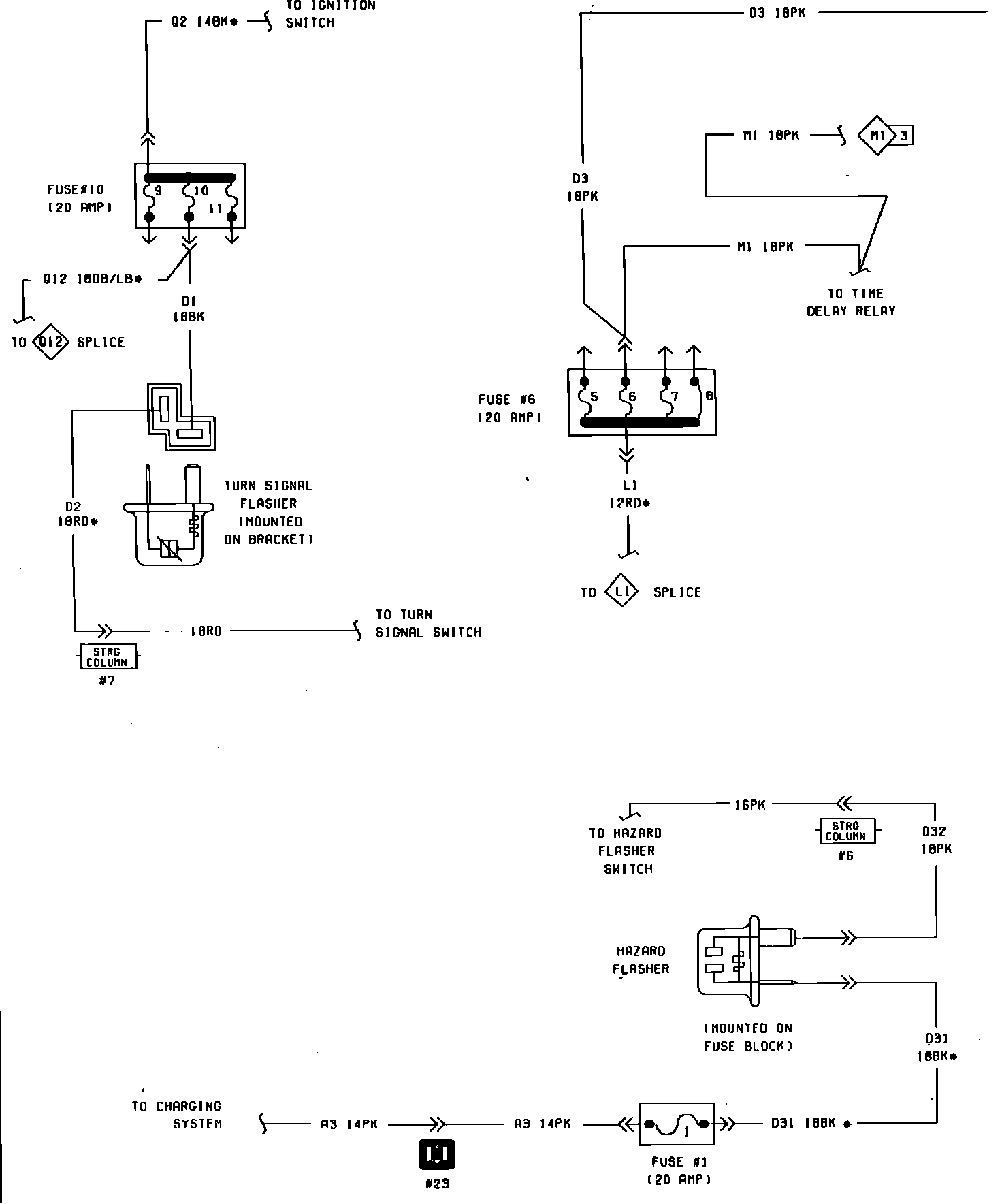

Fig. 34 Hazard, Stop & Turn Signal Wiring Circuit (Part 1 of 3):

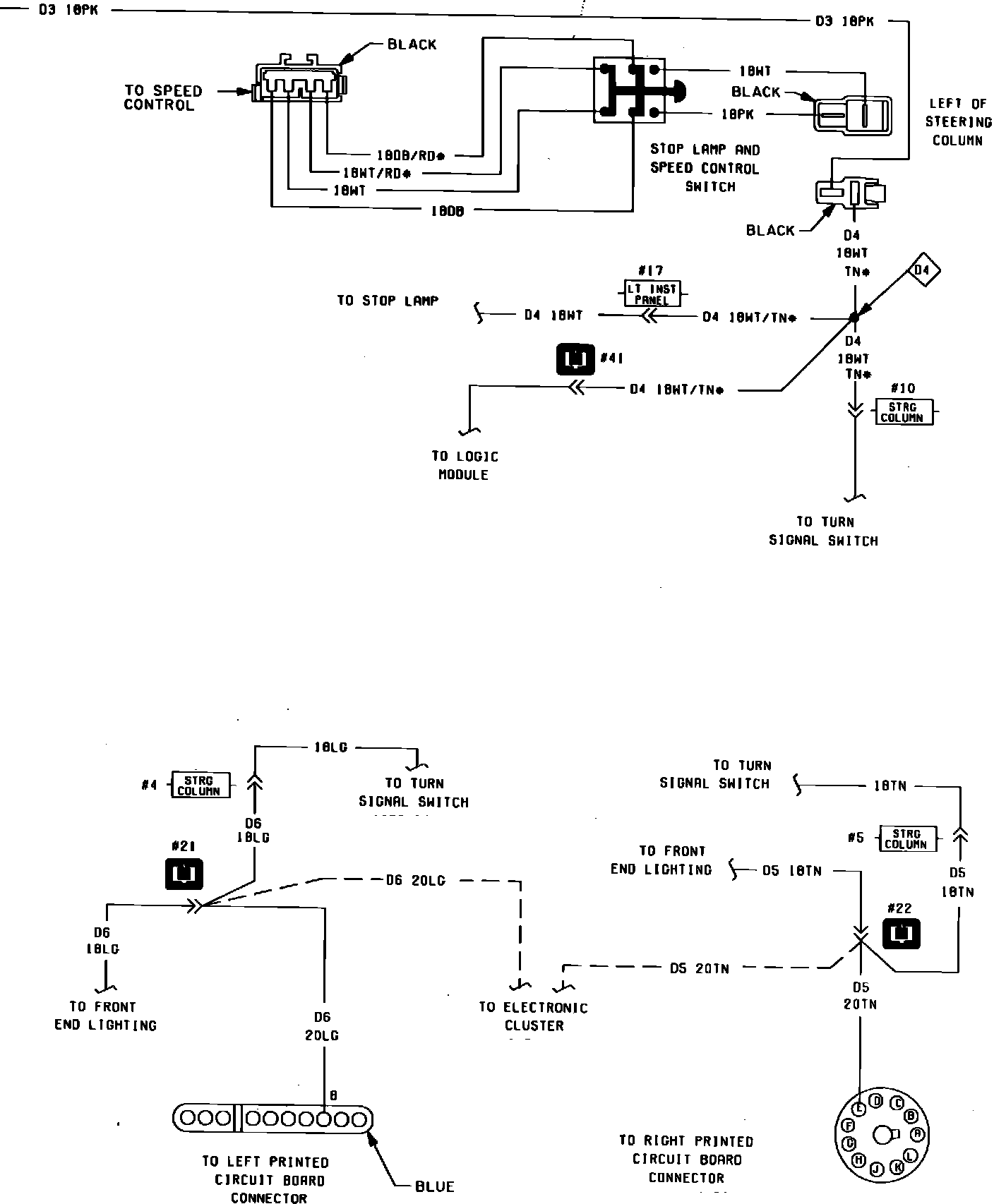

Fig. 34 Hazard, Stop & Turn Signal Wiring Circuit (Part 2 of 3):

Fig. 34 Hazard, Stop & Turn Signal Wiring Circuit (Part 3 of 3):
