Part 1 of 2

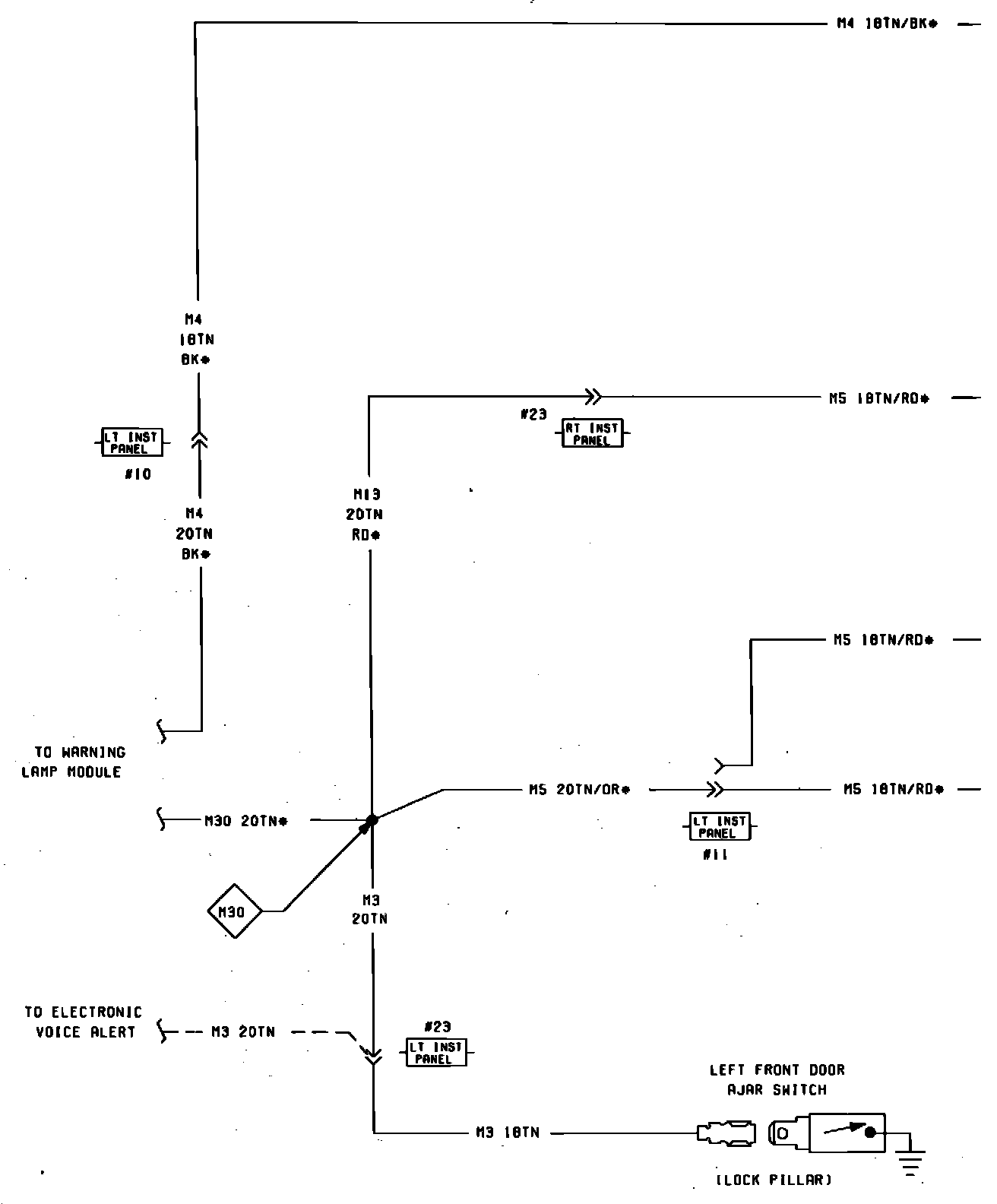

Fig. 28 Deck Lid & Door Ajar Warning Wiring Circuit (Part 1 of 2). Caravelle, New Yorker, 600 & LeBaron:



Fig. 28 Deck Lid & Door Ajar Warning Wiring Circuit (Part 2 of 2). Caravelle, New Yorker, 600 & LeBaron:
