Home >> Chrysler >> 1986 >> Lebaron Town & Country L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 5

Part 5

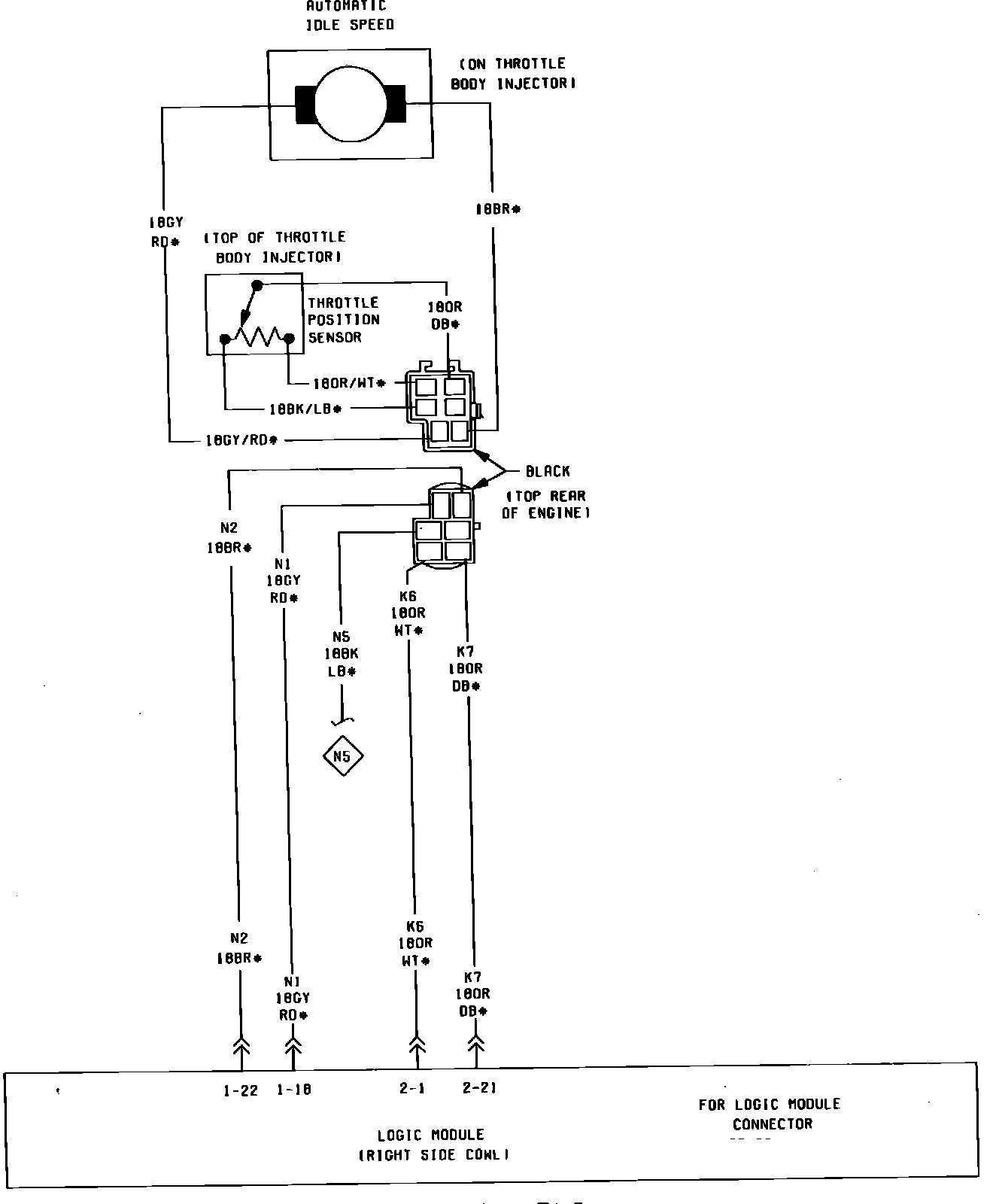

Fig. 41 Ignition System Wiring Circuit (Part 5 of 5). Models W/Turbocharger:
