Home >> Chrysler >> 1986 >> Lebaron Town & Country L4-135 2.2L SOHC VIN D TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Radio Wiring Circuit >> AM-FM Stereo Electronically Tuned >> Part 1 of 2

Part 1 of 2

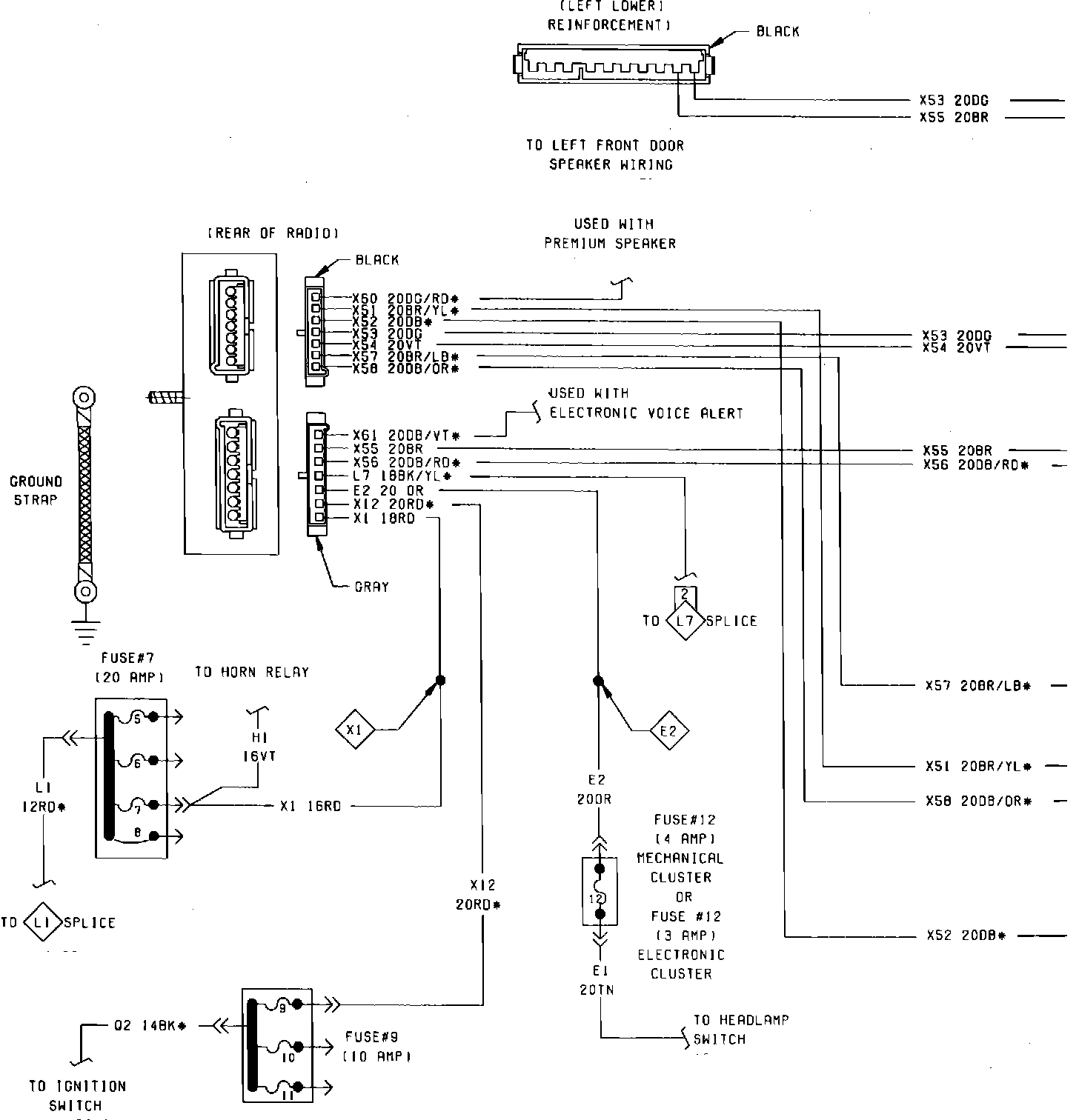

Fig. 63 Radio System Wiring Circuit (Stereo, Part 1 of 2):
