New Yorker L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Key Cylinder Lamp
Key Cylinder Lamp

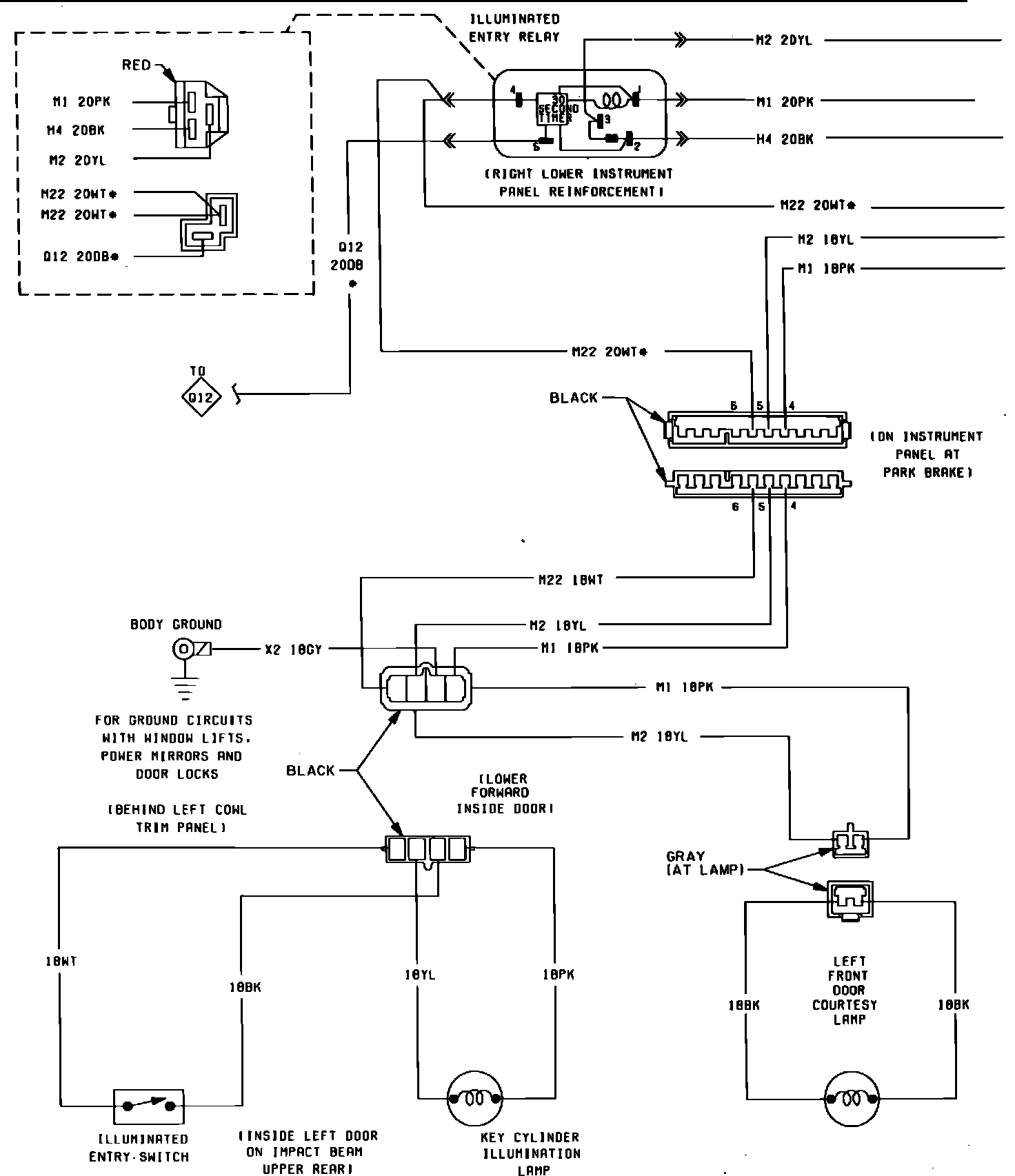

Fig. 42 Illuminated Entry System Wiring Circuit (Part 1 of 2):
