Convertible Quarter Window

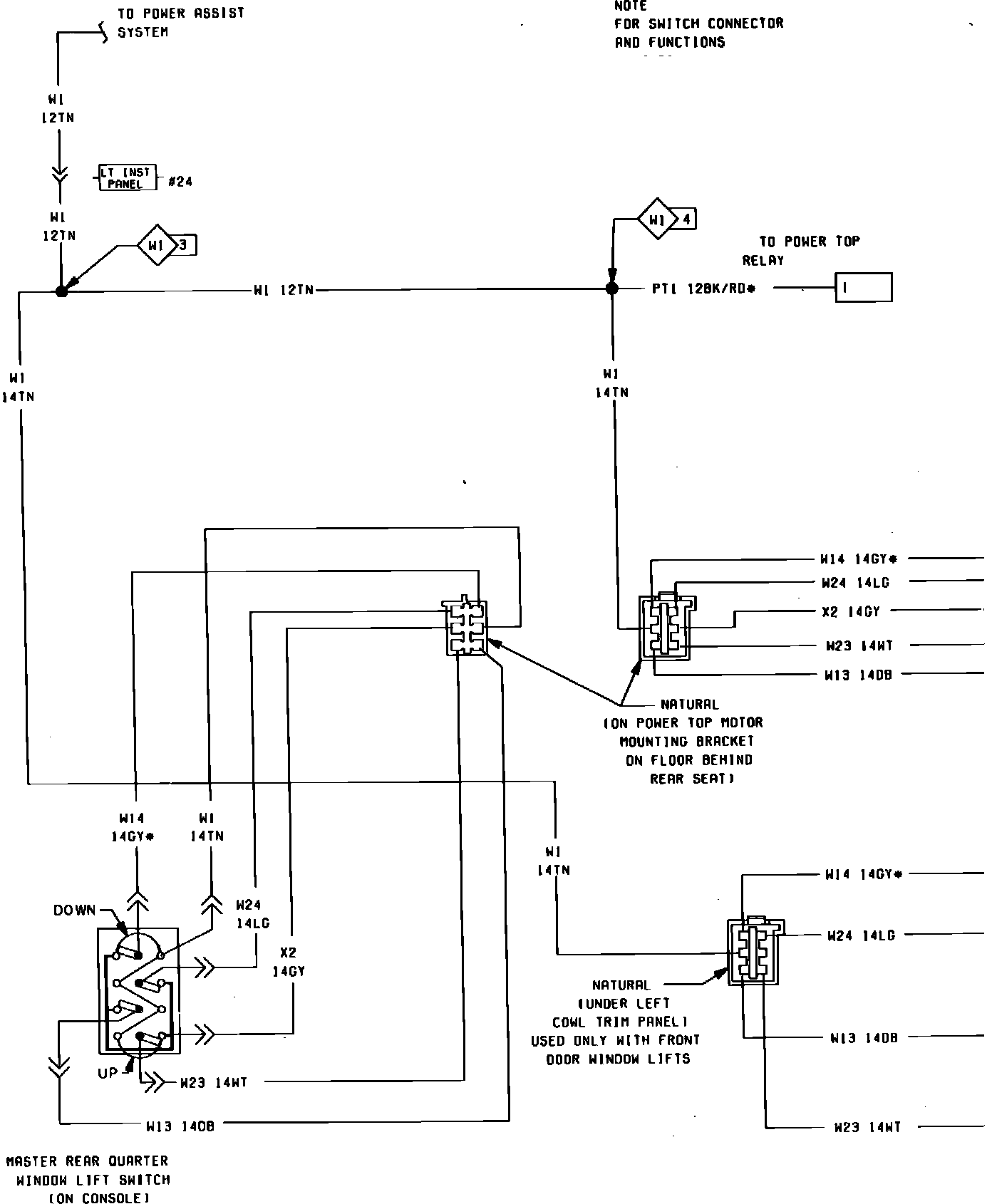

Fig. 58 Power Window System Wiring Circuit (Rear Quarter, Part 1 of 2). LeBaron & 600 W/Convertible:

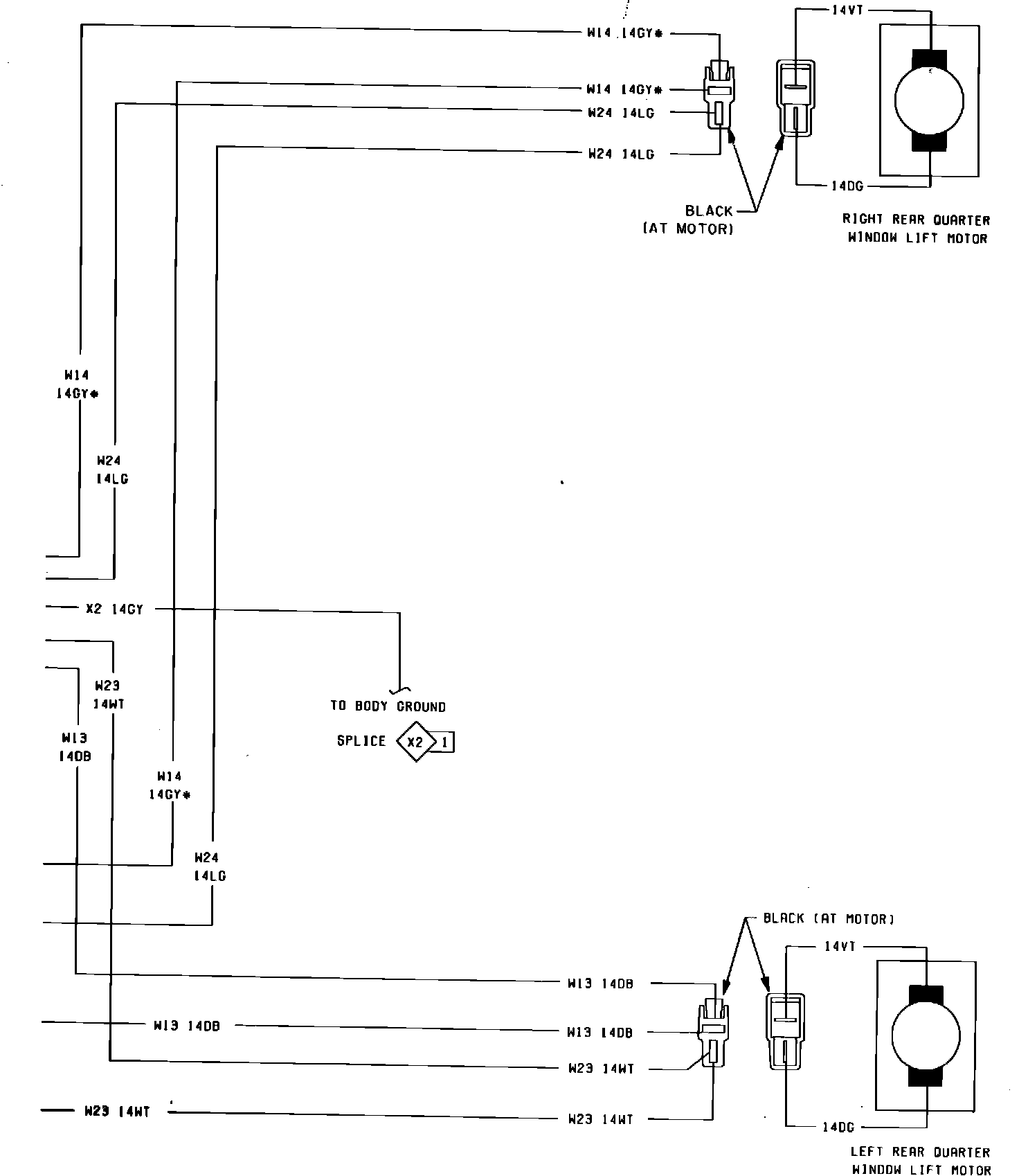

Fig. 58 Power Window System Wiring Circuit (Rear Quarter, Part 2 of 2). LeBaron & 600 W/Convertible:
