Conquest L4-2555cc 2.6L Turbo VIN H FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
Transmission Control Systems

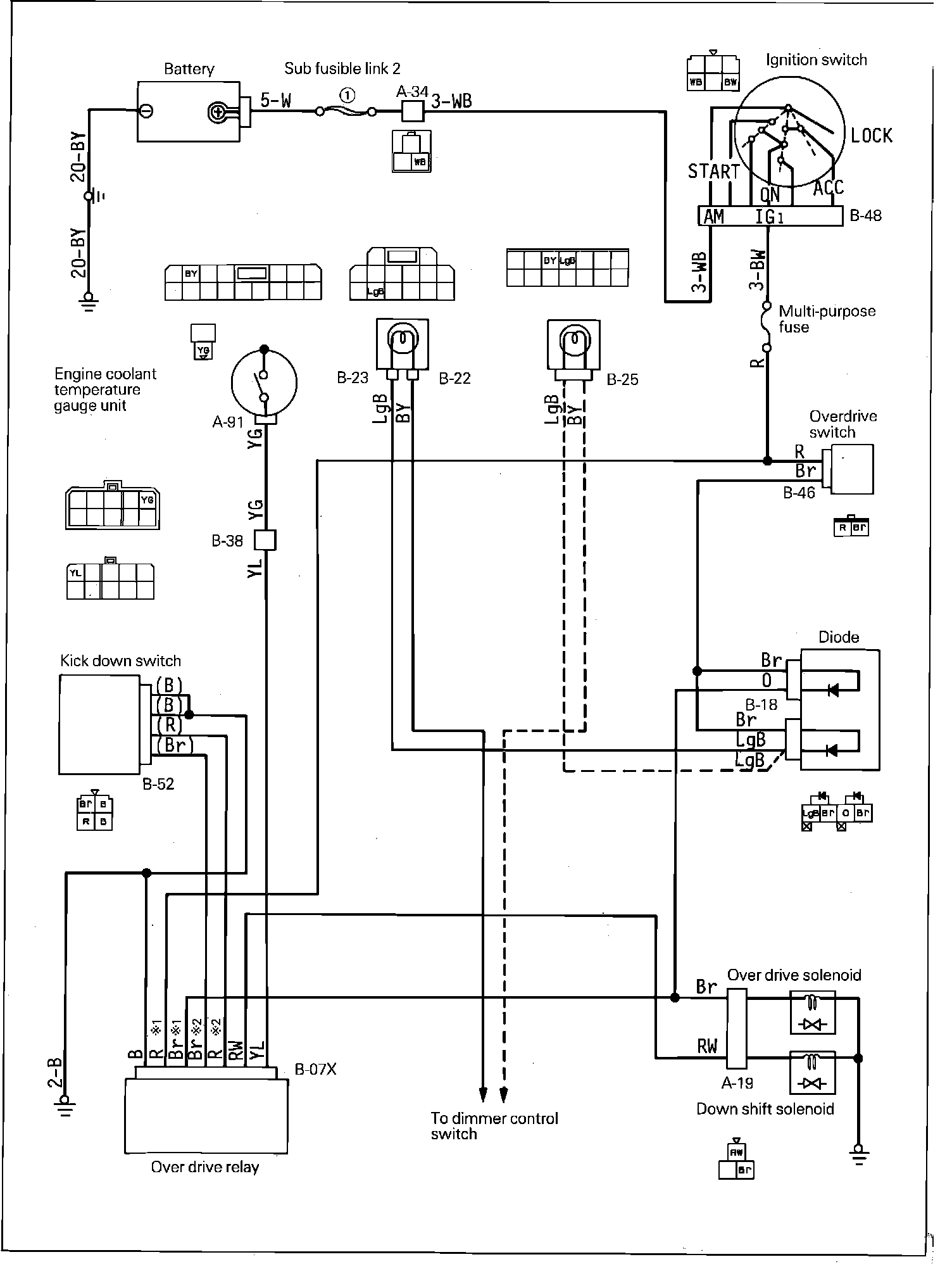

4-Speed Automatic Transmission Wiring Circuit:
