A/C System Component Locations

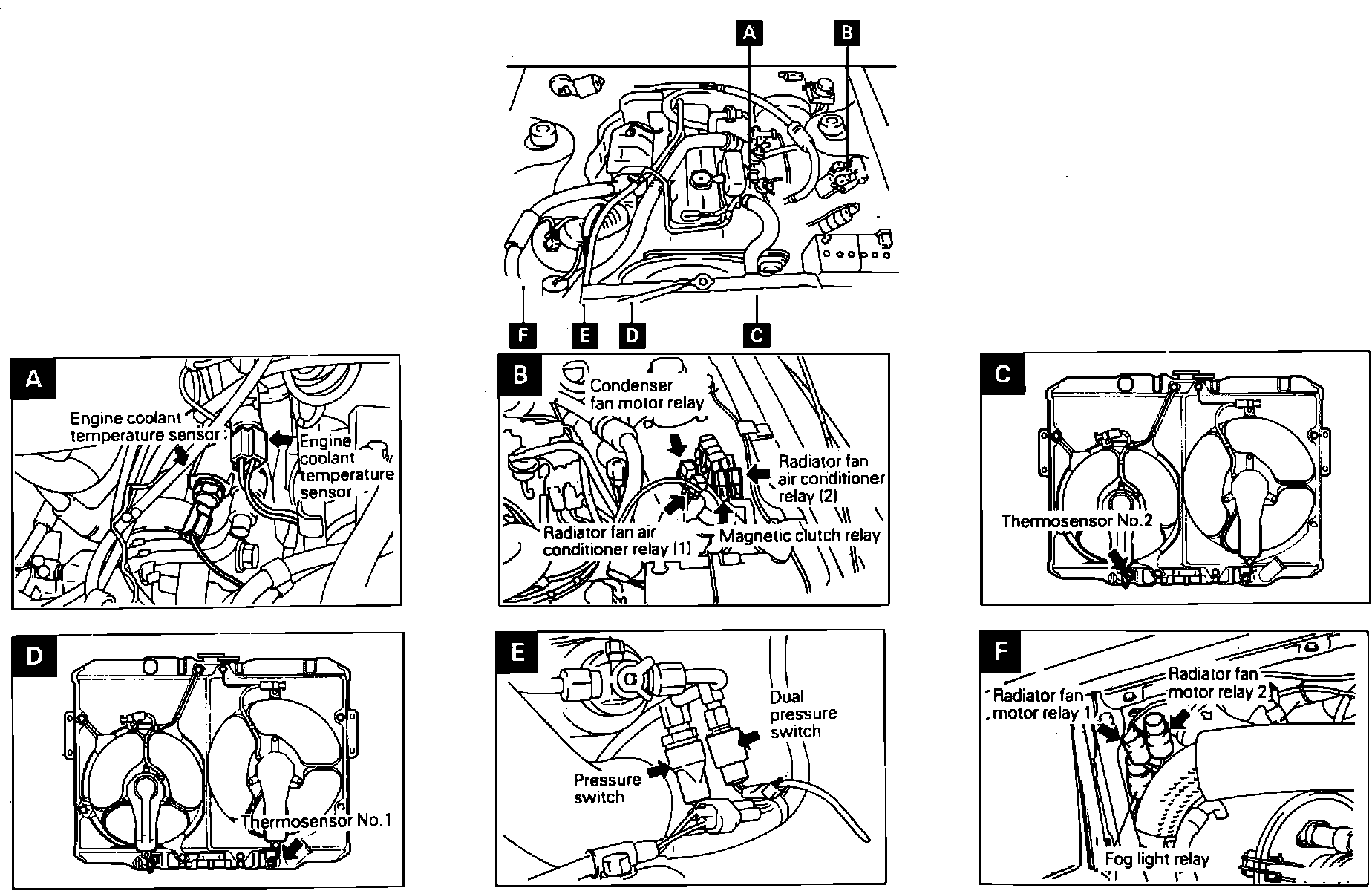

Engine Compartment A/C Component Locations.:

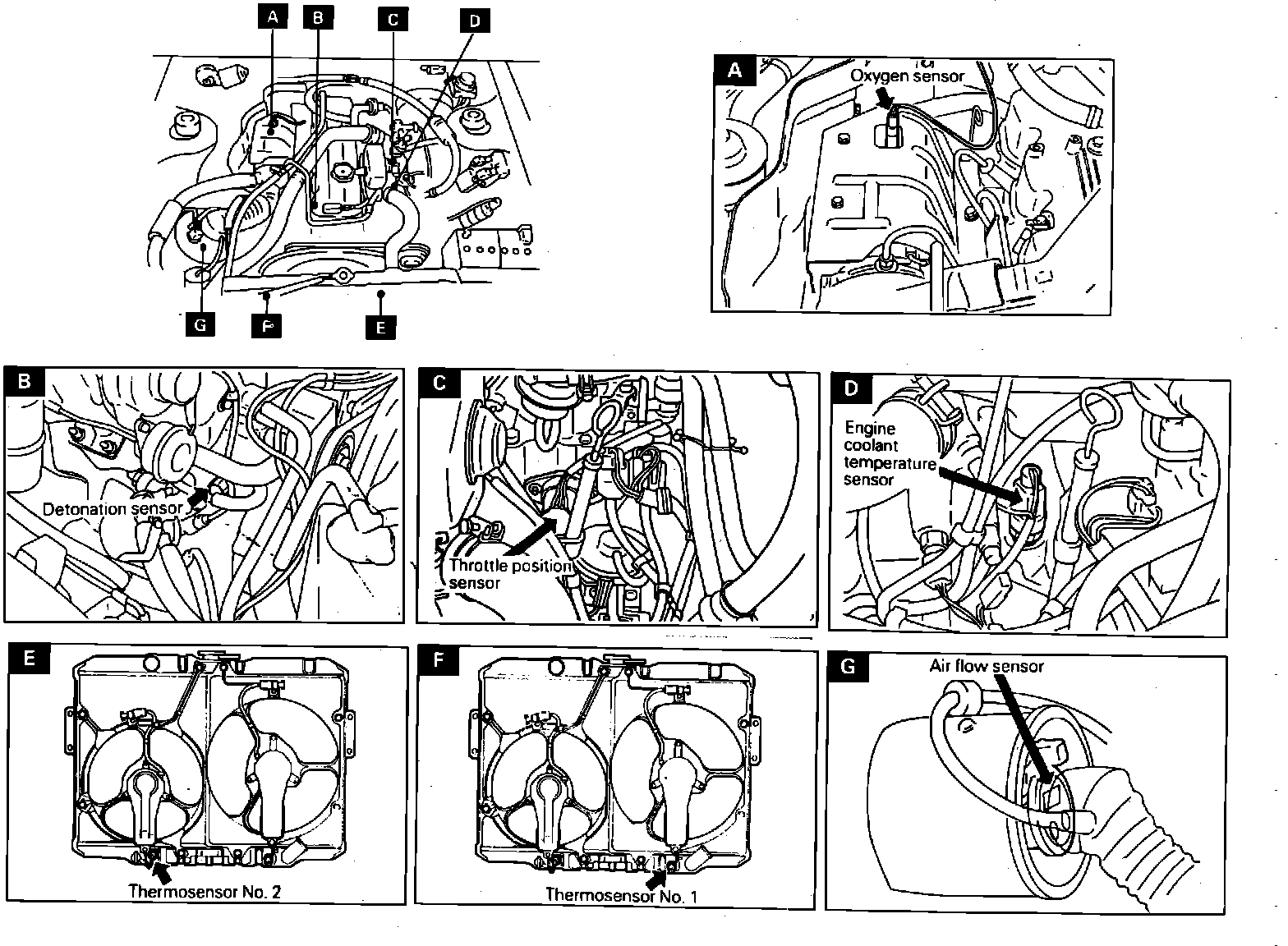

Engine Compartment Sensor Locations.:





Applicable to: 1987-88 Conquest
