Conquest L4-2555cc 2.6L Turbo VIN H FI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>
Component Locations
Component Locations

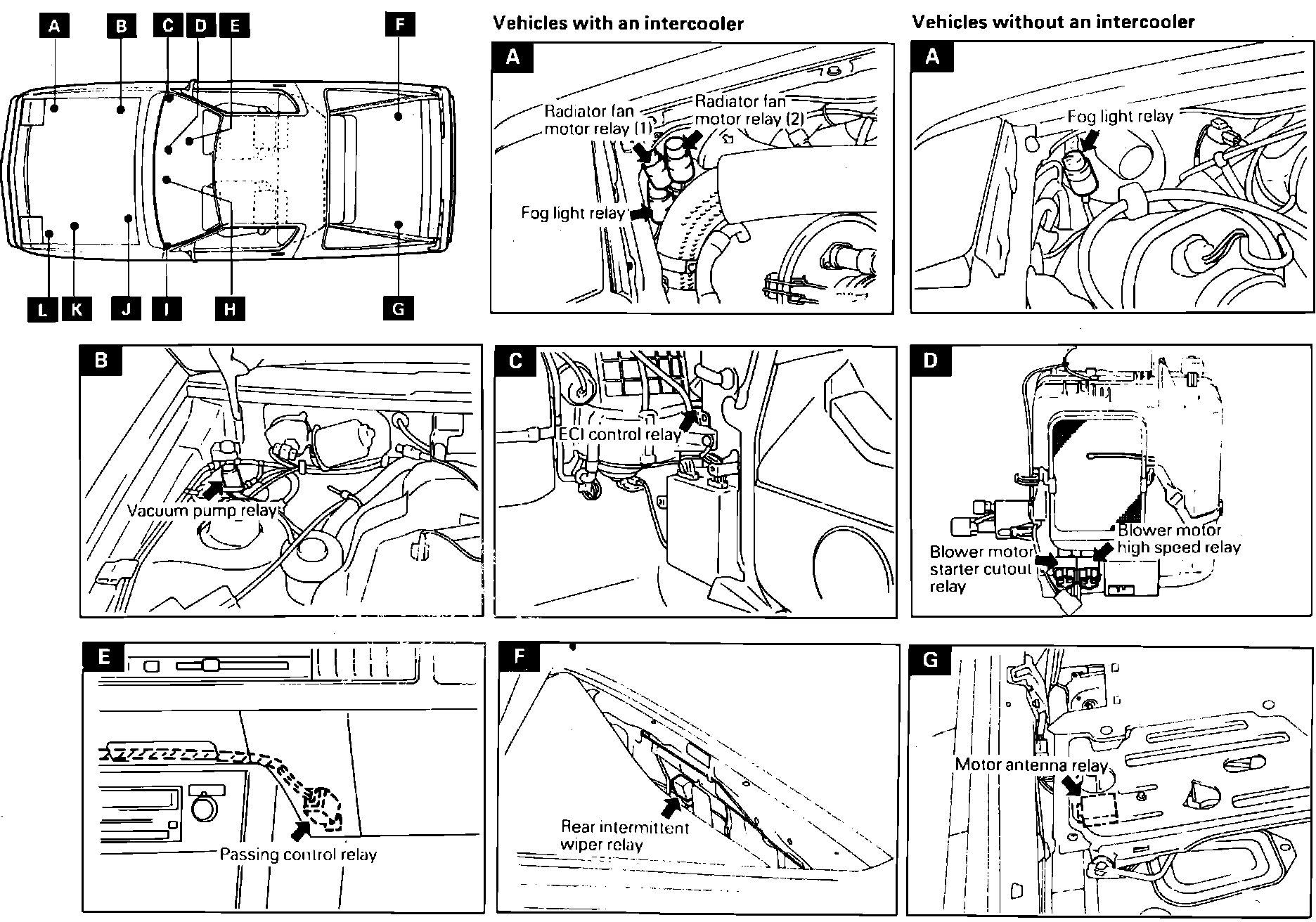

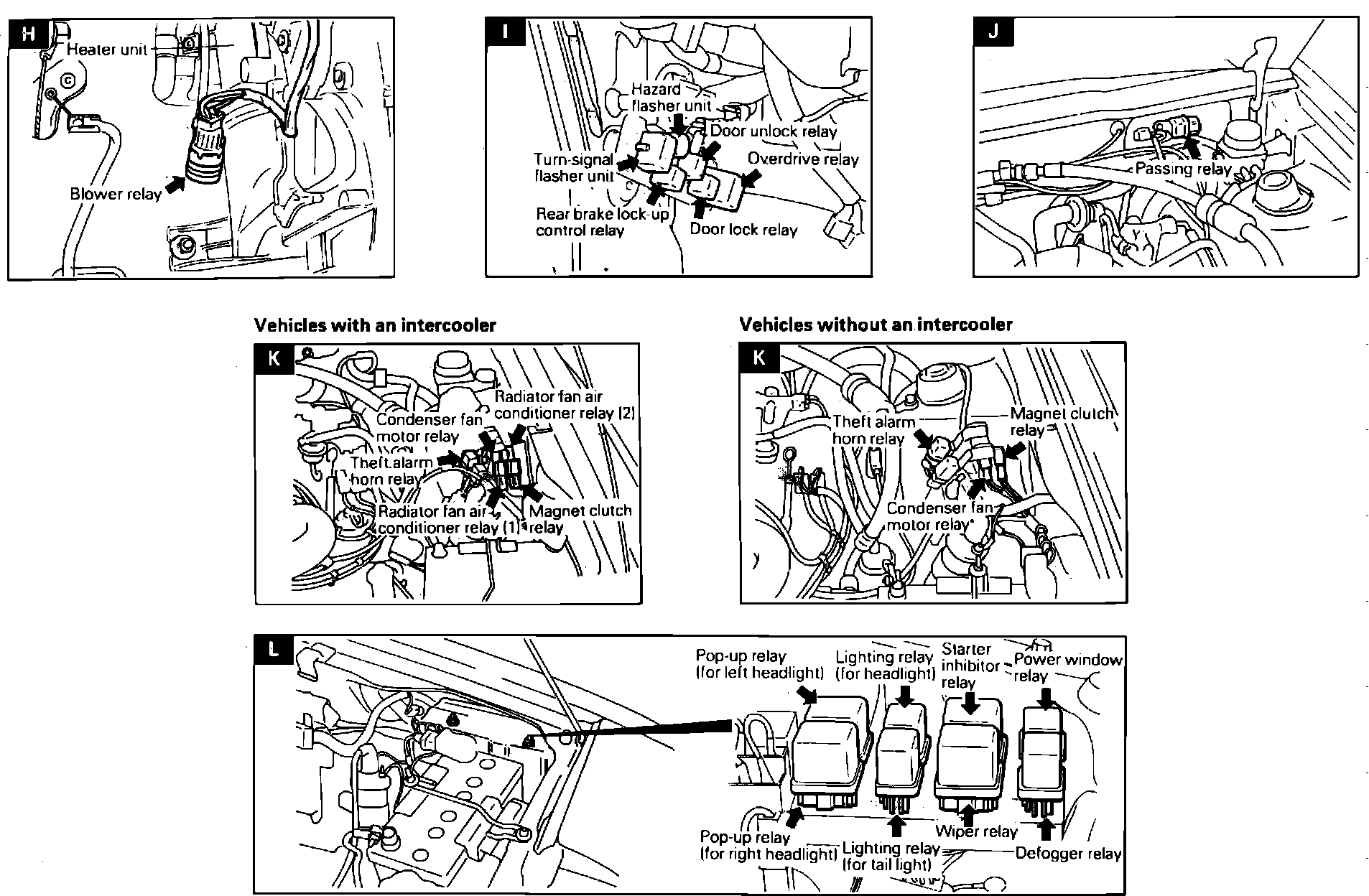

Relay Locations (Part 1 Of 2).:
Relay Locations (Part 1 Of 2).:
Applicable to: 1987 Conquest
