A/C - Condenser Fan Motor and Fan Relay Correction

88chrysler08

Models


1987 "YDC" (Conquest)


Subject


Condenser Fan Motor & Condenser Fan Relay Ground Circuit - Service Manual Correction


Index

ELECTRICAL


Date

May 16, 1988


No.

08-05-88

P-1815 (C08-04)



SYMPTOM/CONDITION

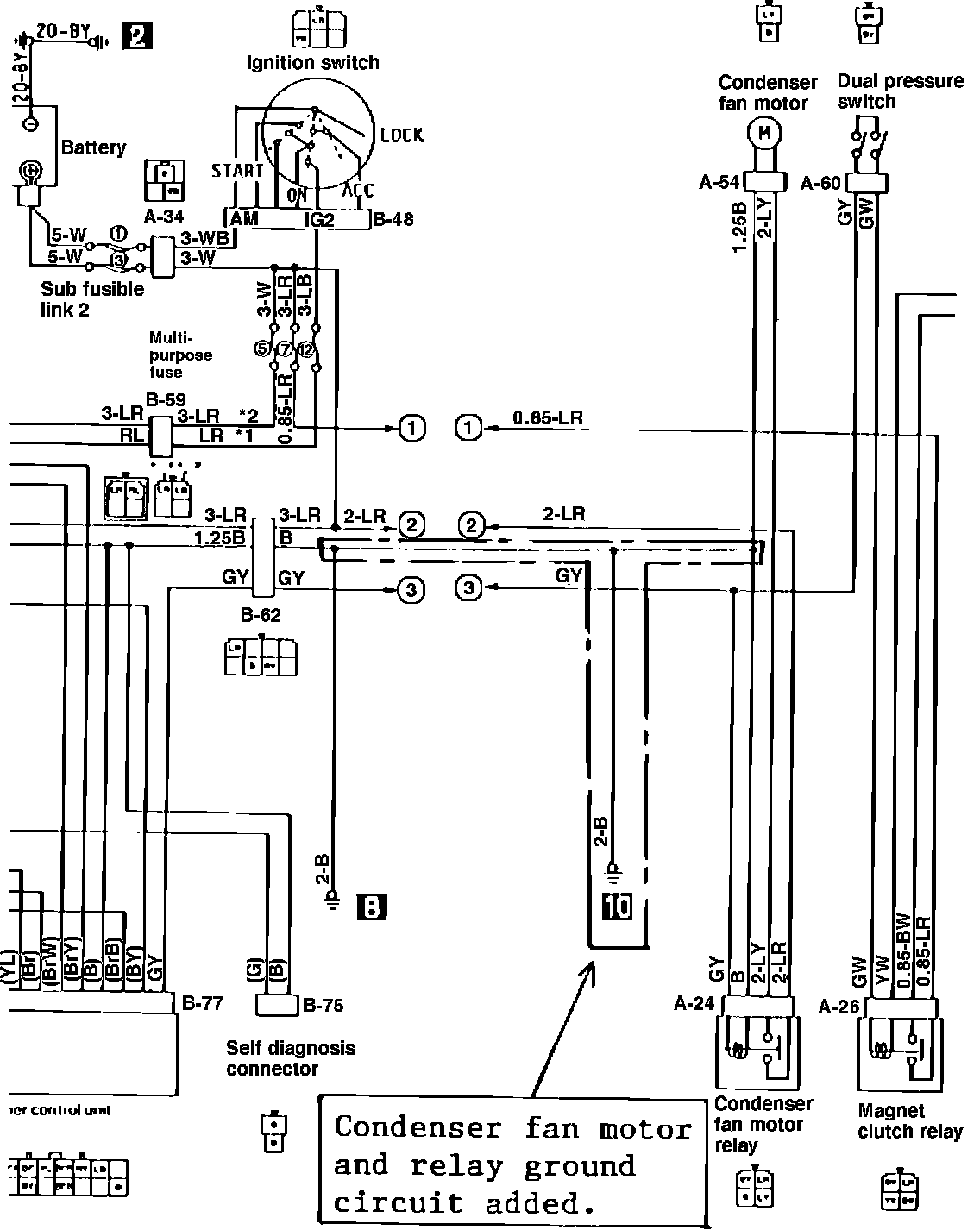

There is an error in the 1987 Conquest Electrical, Heating & Air Conditioning Service Manual, Publication #81-270-7013A. The ground circuit for the condenser fan motor and the condenser fan relay were omitted on pages 8-87 & 8-88 and on 24-69 & 24-70. A corrected diagram is shown on page 2 of this bulletin. Please make these corrections to the appropriate pages of Publication #81-270-7013A.


POLICY: Information Only
