1987 & 1988 Colt Vista 81-270-7012

Revised TSB 14-01-87 January 11, 1987
MPI SYSTEM - General Information

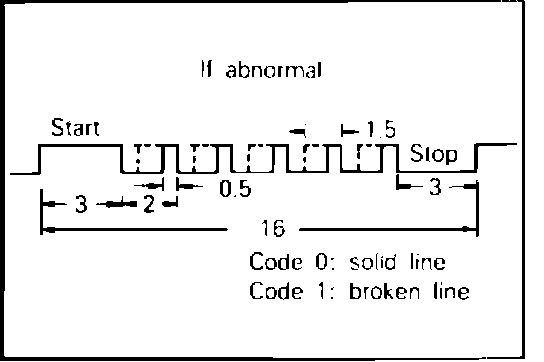

(2) If abnormal After a three-second steady illumination, the illumination repeats at two-second cycles. An illumination time of 1.5 seconds is "1" and an illumination time of 0.5 second is "O", the malfunction code is thus indicated by the combination of five "1"and "0" signals.

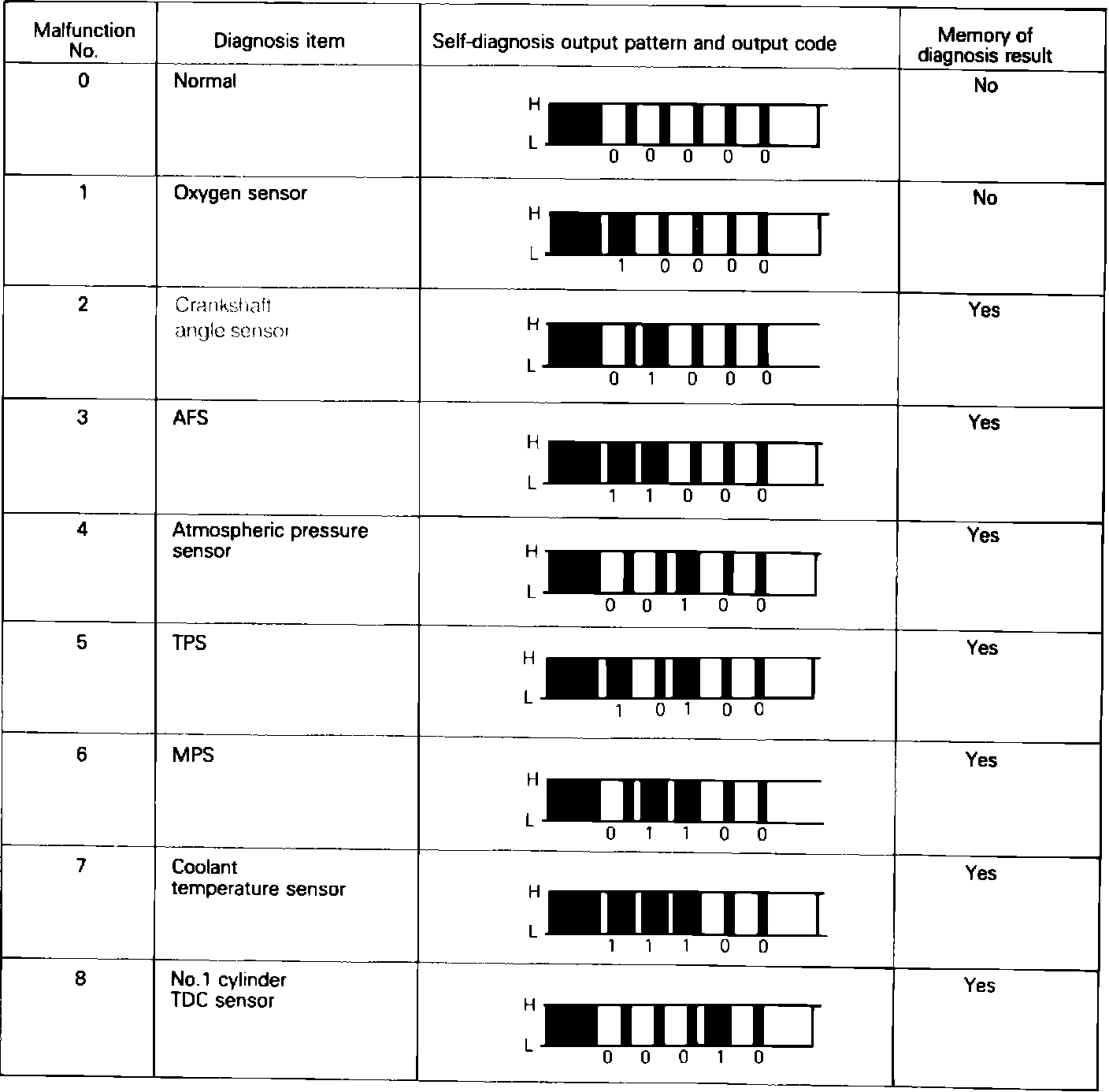

DISPLAY CODE TABLE
1988 COLT VISTA 81-270-8013
Revised TSB 14-01-87 January 11, 1987
MPI SYSTEM - General Information 14-21

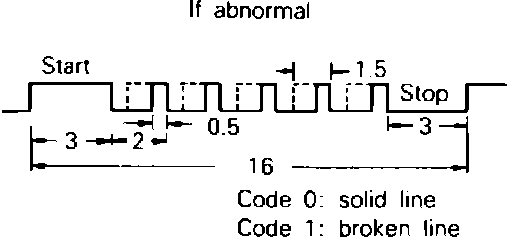

(2) If abnormal After a three-second steady illumination, the illumination repeats at two-second cycles. An illumination time of 1.5 seconds is "1" and an illumination time of 0.5 second is "0", the malfunction code is thus indicated by the combination of five "1" and "0" signals.

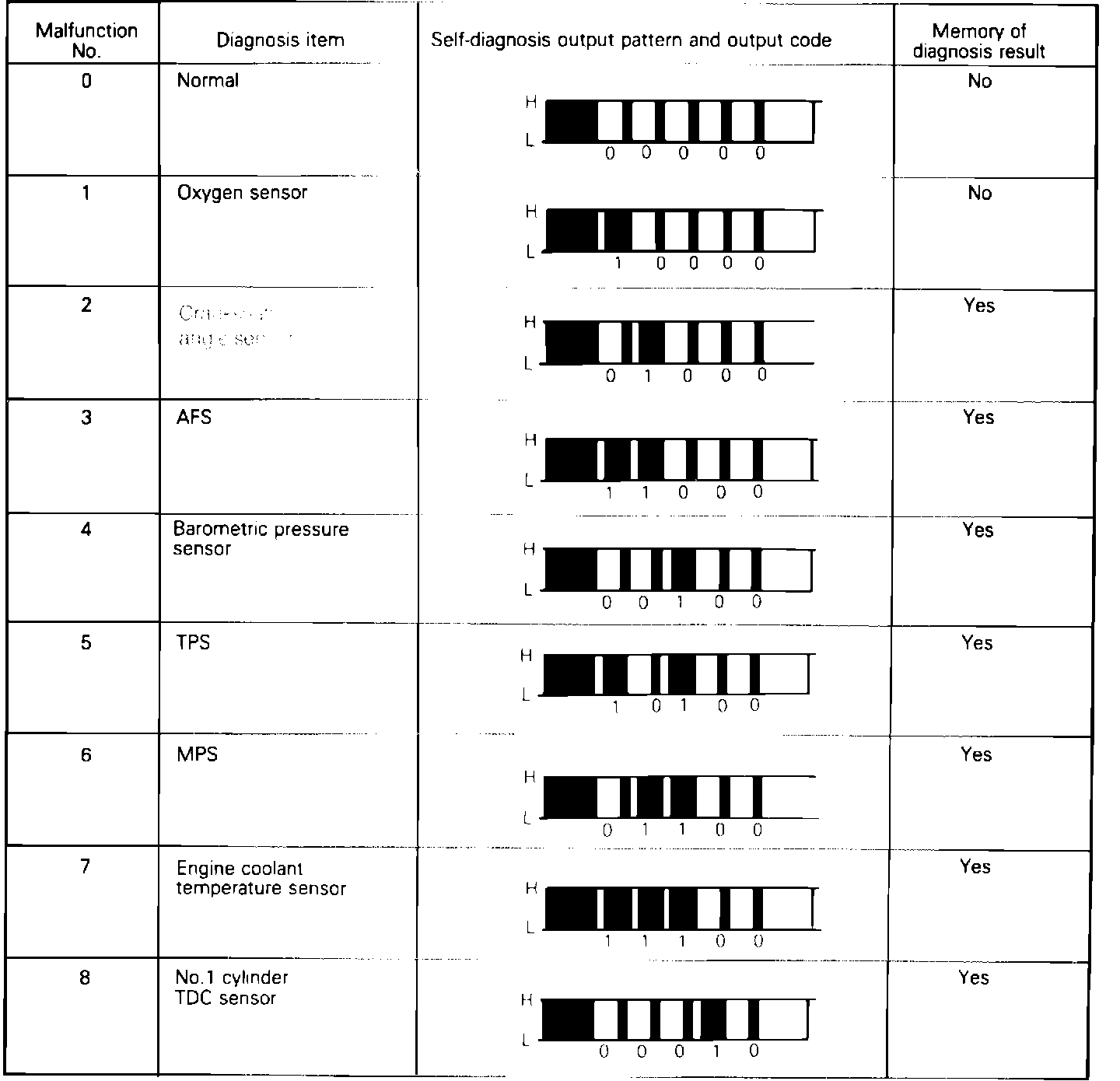

DISPLAY CODE TABLE
1987 COLT VISTA ECI-Multi Driveability Trouble Shooting 81-699-7033

Revised TSB 14-01-87

January 11, 1987

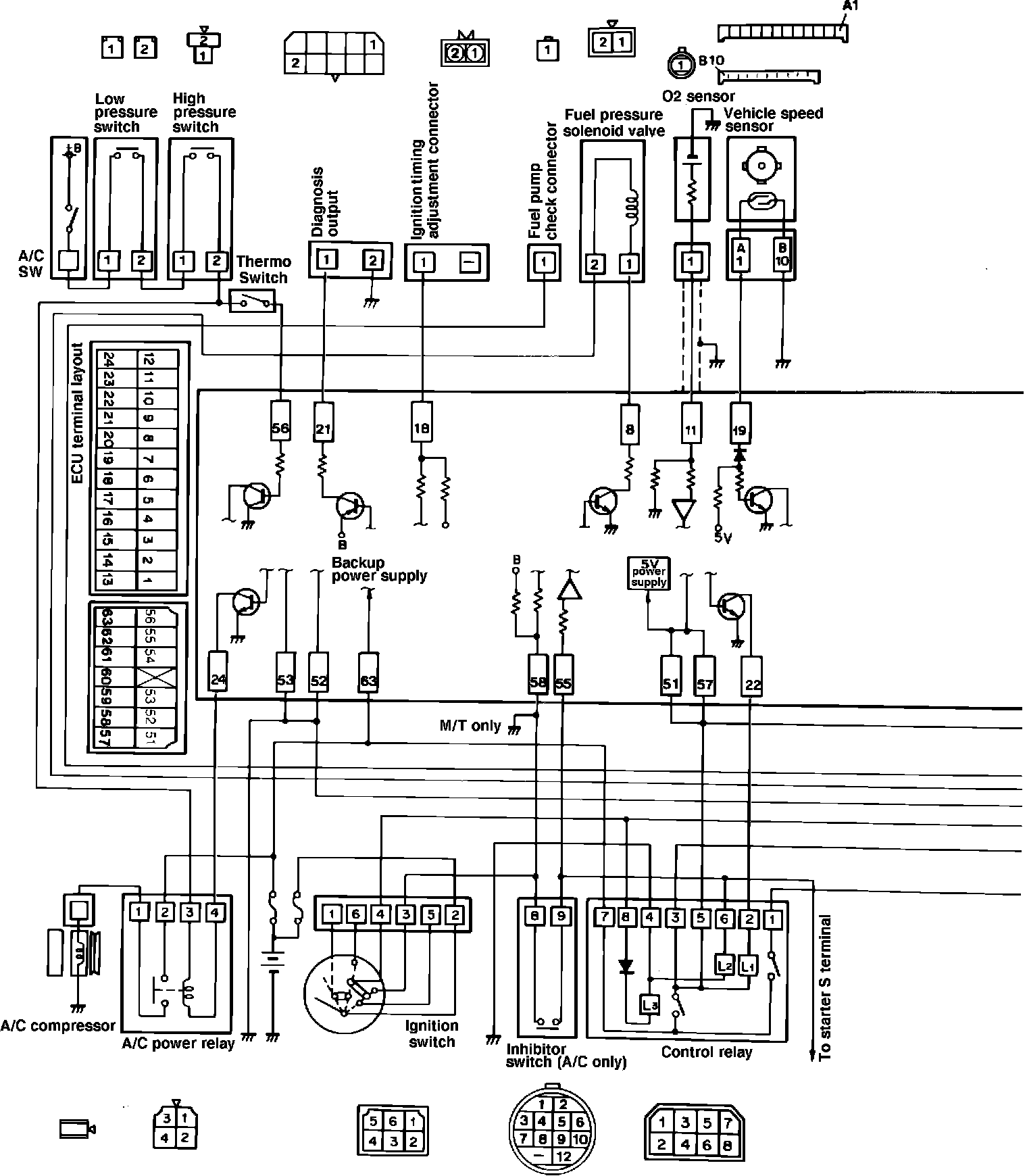

20 ECI-MULTI-Electrical Wiring Diagram



Electrical wiring diagram
